stability test
double 85 test
customized internal dimension
high quality
programmable touch lcd control

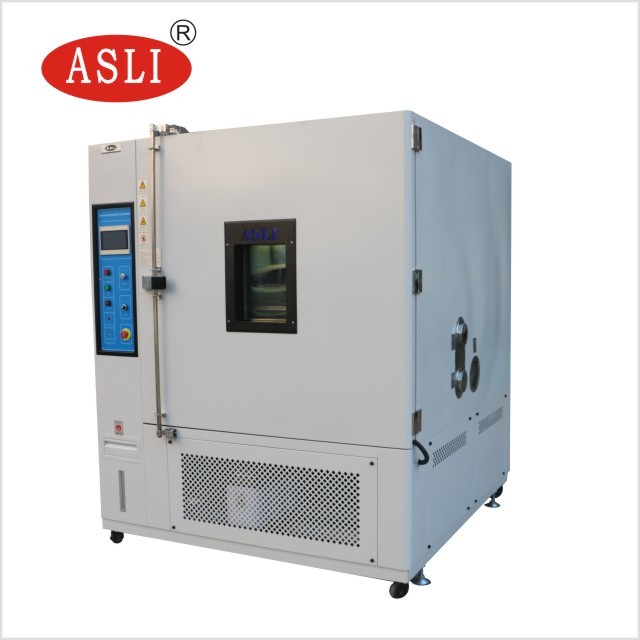

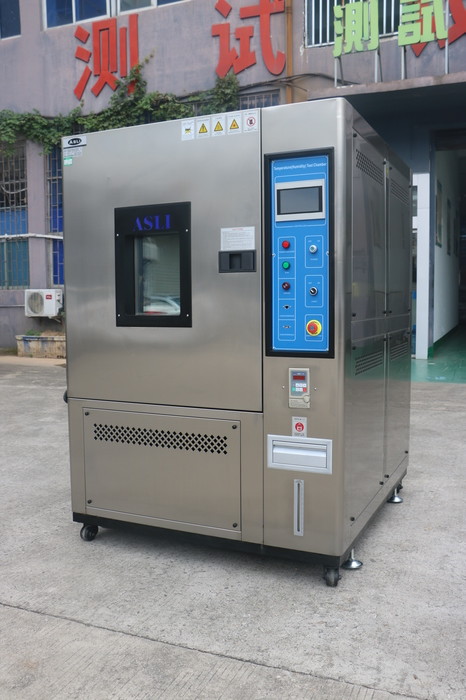

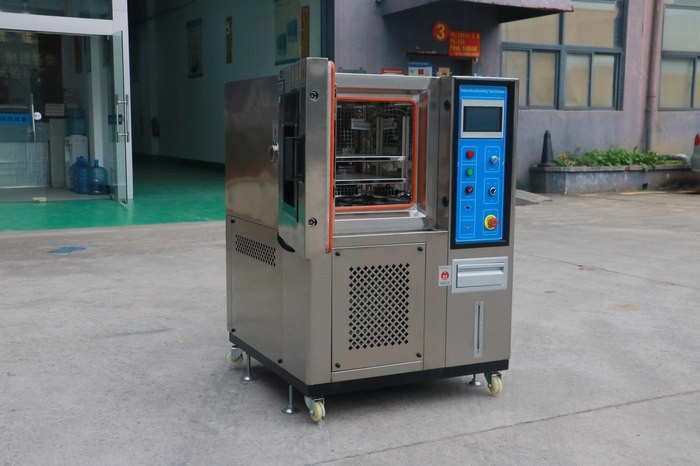

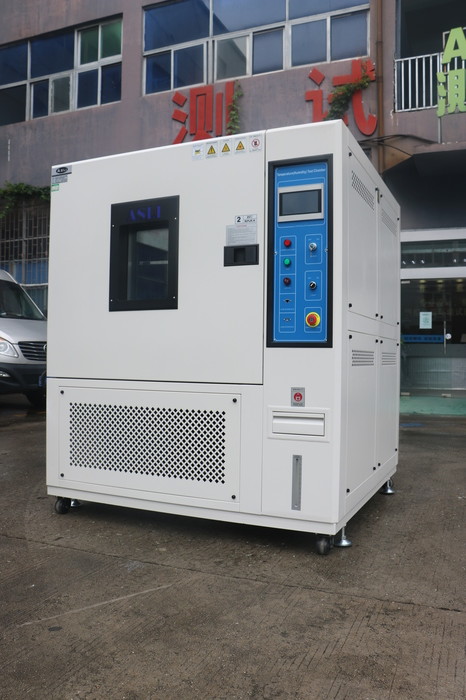

Heat And Cooling Climate Control Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
temperature quick change humidity climatic test chamber applied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Parameter:
| Model | TH-1000 |
| Internal Dimension | W1000xH1000xD1000(mm) |
| Outernal Dimension | W1600xH2100xD1450(mm) |
| Temperature Range | Low Temperature:E:-60ºC (Temperature according to customer's requirement) |
| Humidity Range | 20%R.H.~98%R.H.(Humidity according to customer's requirement) |
| Analytic Accuracy/ Distribution uniformity of temperature and humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5ºC; ±2.5% R.H. |
| Temperature Rising/ falling Speed Rate | Temperature rising approx. 0.1~3.0ºC/min temperature falling approx. 0.3~1.0ºC/min; ( faster temperature change rate is optional) |
| Test Points | 85 degree, 85%R.H. |
| Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand,Germany Bizer Brand |
| Power | AC380V 3ph 5 lines , 50/60HZ |
| Approx. Weight (Kg) | 450 |
• LCD Touch Screen (TATO TT5166)
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable (can have 100 pattern, each pattern has 999 segment)
• With Humidity Sensor
•With thermostats (prevent overheat)
• Test Hole (50 mm diameter)
• With Data Storage function by USB Flash Memory
• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector
• Adjustable Shelf
• With RS485/232 output to computer
• Window Software
• Remote fault notification(optional)
• With Viewing Window
• Anti-condensation technology of the workroom .(Optional)
• User friendly three color LED indicator lamp ,easy to read working condition

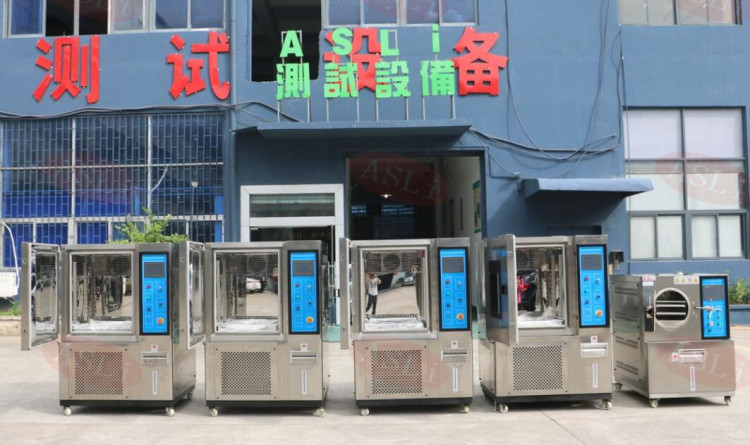

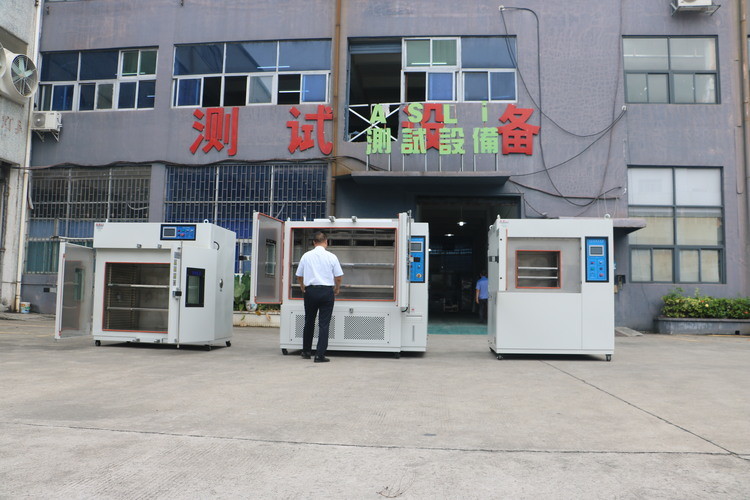

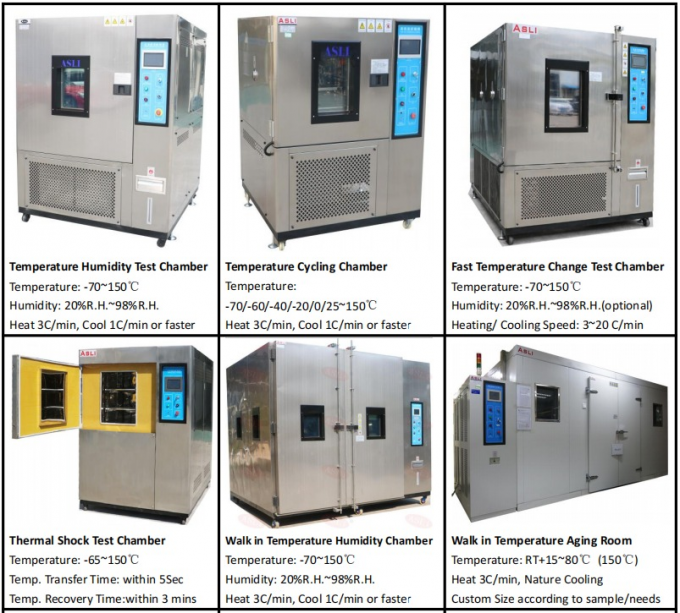

We main production: climatic chamber, Chemical Laboratory Testing Equipment List, walk in chamber, UV aging chamber, thermal shock chamber ,xenon chamber, xenon combined uv aging chamber, PCT chamber, HAST chamber, Vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber etc.
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you have any needed about Heat And Cooling Climate Control Chamber, please don't hesitate to send your inquiry.
