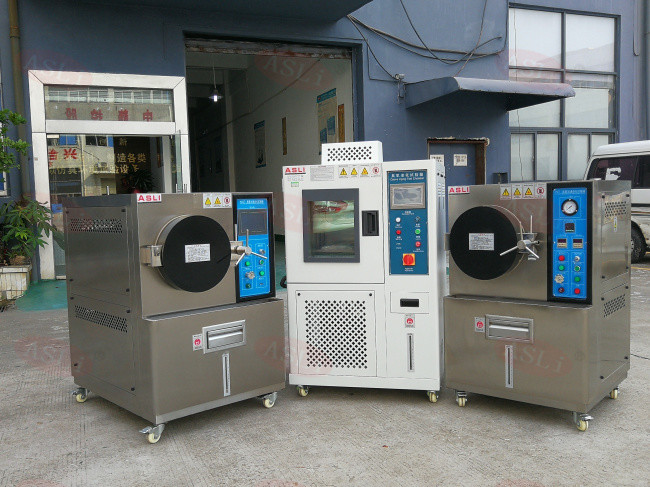

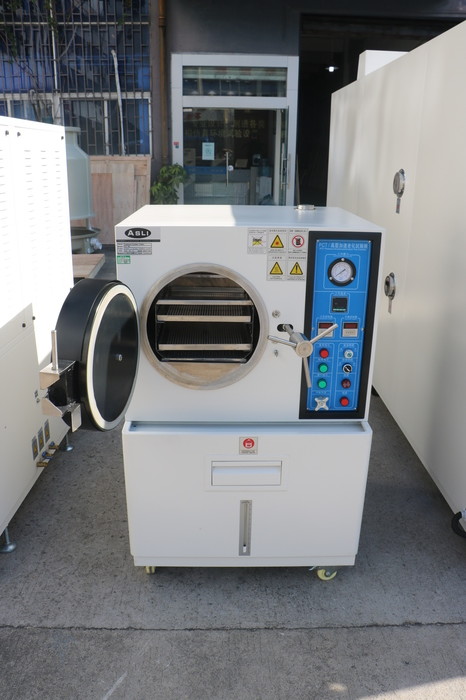

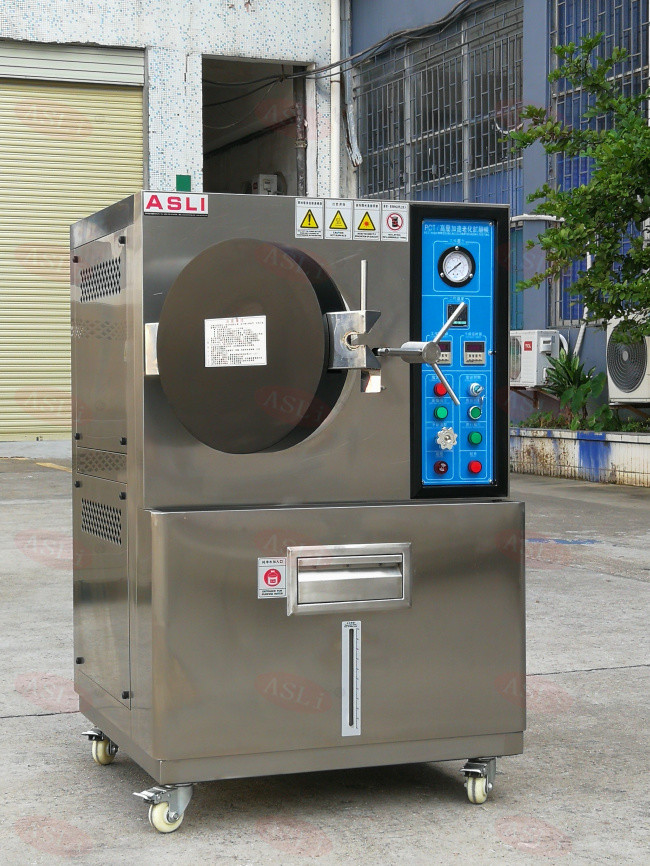

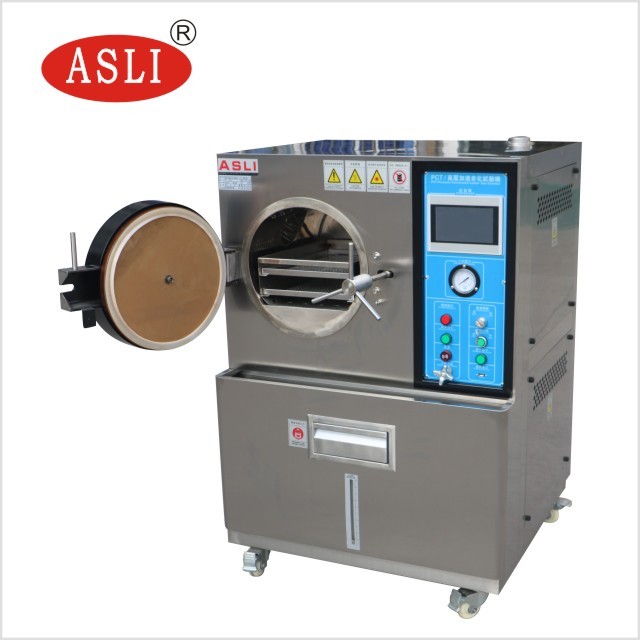

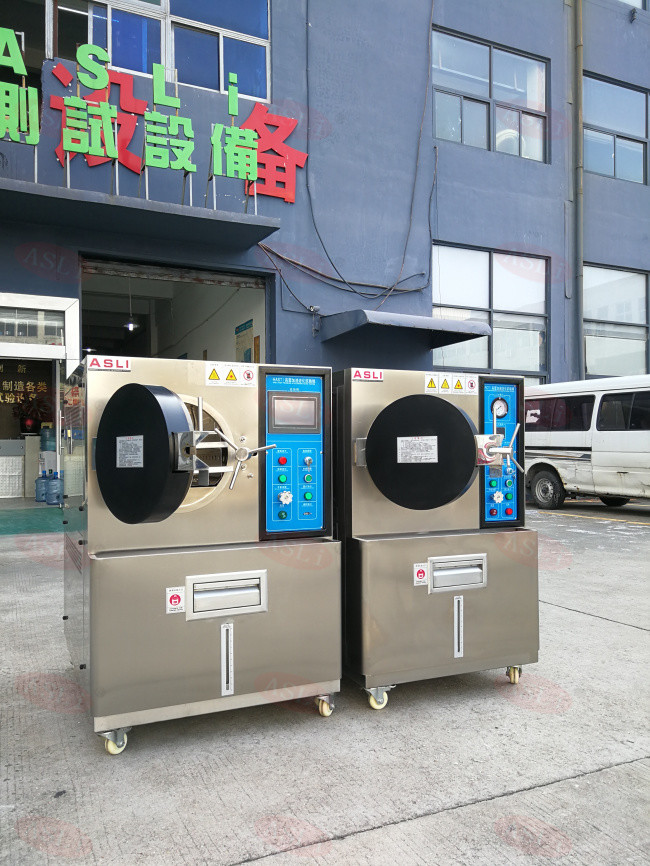

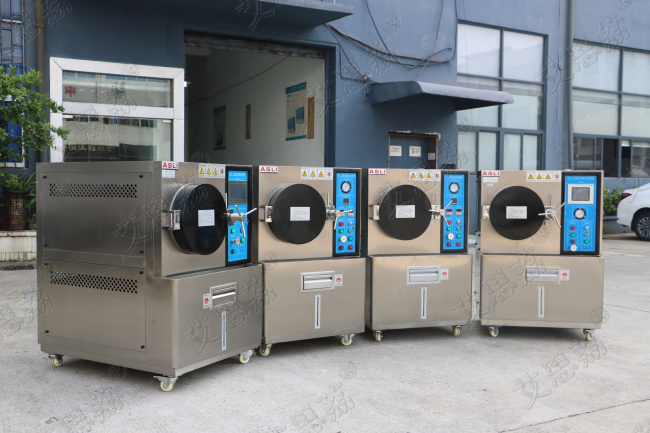

JESD22-A101 Pct Pressure Accelerate Environmental Aging Test Chamber For IC Package
Product Description
Product Description
What is the JESD22-A110 test?
The JESD22-A110 - Highly-Accelerated Temperature and Humidity Stress Test is performed for the purpose of evaluating the reliability of non-hermetic packaged solid-state devices in humid environments.
Our PCT Pressure Accelerate Environmental Aging Test Chamber can full meet JESD22-A101,JESD22-A102-E, JESD22-A102-C standards
Pressure Aging Testing Equipment is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
Specification
Model
PCT - 25
PCT - 35
PCT - 45
PCT - 55
PCT - 65
Interior Dimension
Φ×D (mm)
300×250
350×450
450×550
550×650
650×750
Exterior Dimension
Φ×D (mm)
750×1200×800
800×1250×800
900×1380×900
1050×1550×1100
1200×1700×1250
Temperature Range
of Steam
(Operating temperature)
(Temperature Range of Saturated Steam:100°C~135°C) ,
Temperature Range: 120°C,100Kpa;133°C 200 Kpa;(143°C is optional)
Relative Pressure/
Absolute Pressure
Relative pressure: display values indicated on the pressure gauge
Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box)
Humidity of Saturated
Steam
100%R.H. saturation steam humidity for PCT chamber,
70~100%R.H. steam humidity adjustable for HAST chamber
Steam Pressure (Absolute Pressure)
101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm²; (3.0Kg/cm² is optional)
Recursive Device
Steam natural convection circulation
Safety Protective
Devise
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure
function )
Accessories
Two layers stainless steel plate
Equipment
Capacity(L)
17
43
87
155
250
Power
AC 220V 50/60HZ ;
PCT Pressure Aging Test Chamber for IC Package features:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silic gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution
safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 26 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine.PCT pressure accelerate aging test chamber is our star products, and we had obtained the CE certification for this machine.
