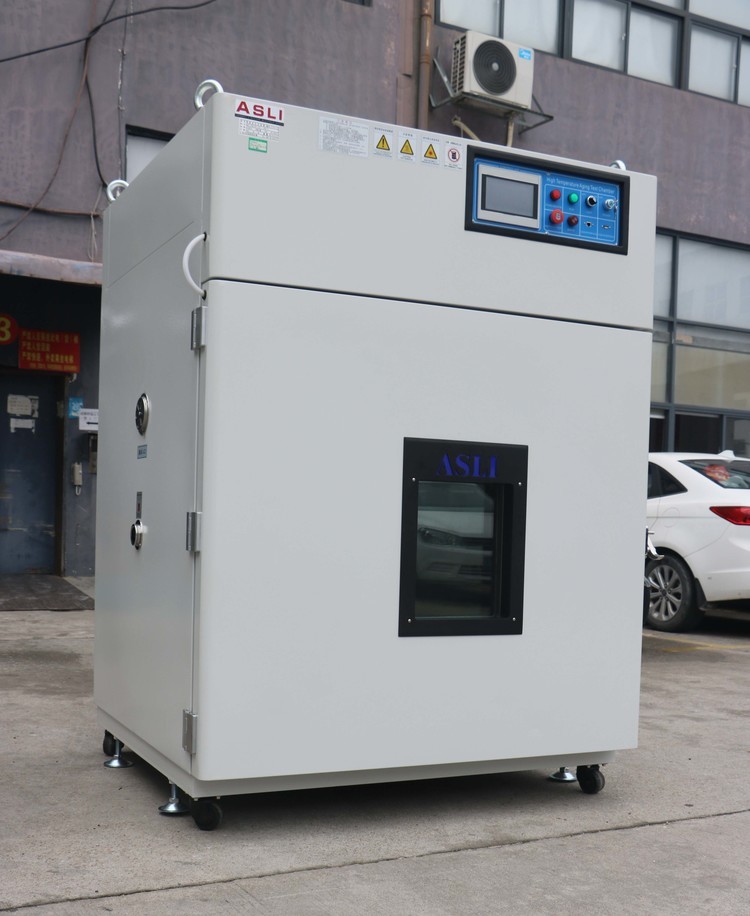

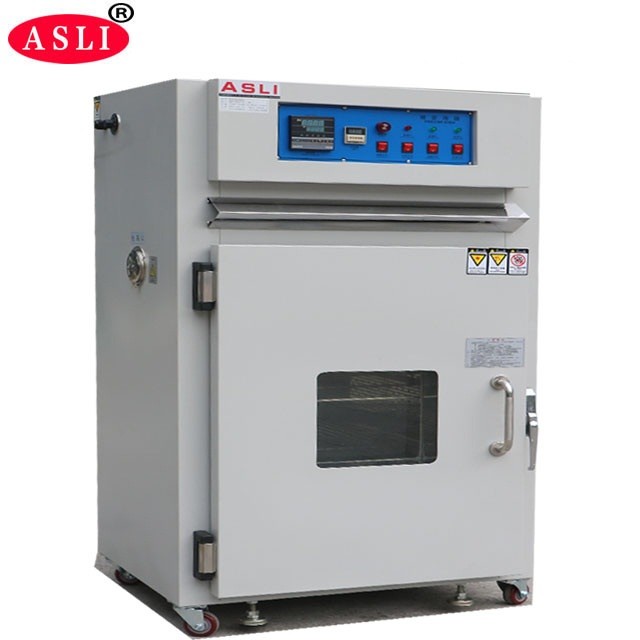

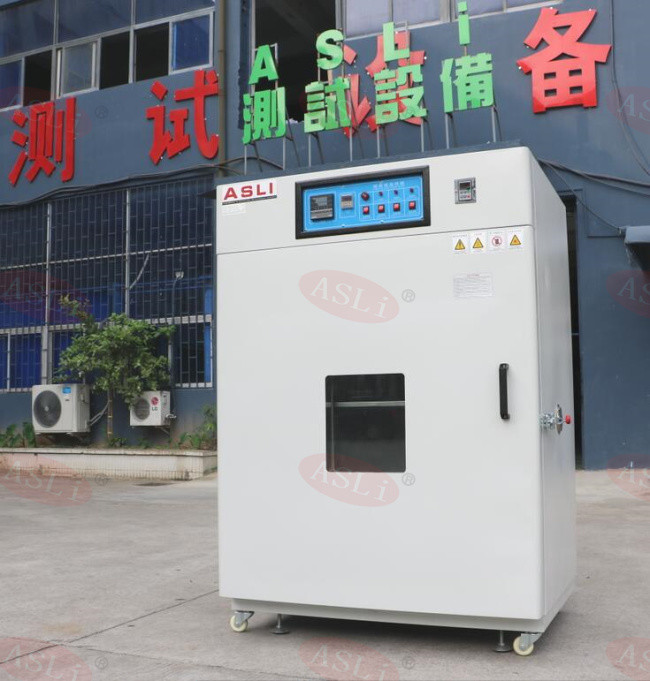

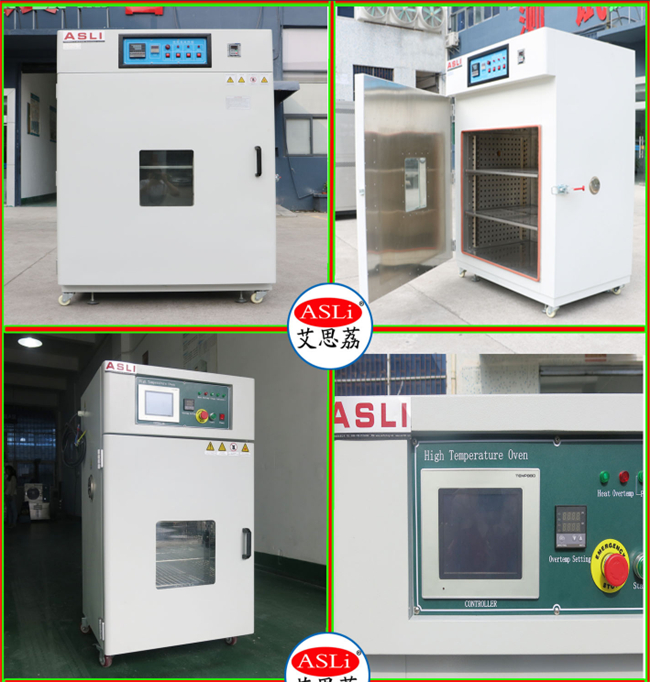

High Temperature Aging Testing Oven is Widely used in biochemical chemical and pharmaceutical, health care, agricultural research, environmental protection and other research applications for power drying and roasting, as well as disinfection and sterilization of glass containers used. Particularly suitable for drying heat-sensitive, easily decomposed, and the complex composition of easily oxidized material items for fast and efficient drying. it's used to dry, bake and preheat various materials or specimen, by means of hot air circulation method to uniform the temperature distribution.
Specification
Model
RHD - 45
RHD - 60
RHD - 90
RHD - 120
Internal Dimension
W×H×D(mm )
450×400×400
500×600×500
600×900×500
800×1200×700
External Dimension
W×H×D(mm)
650×900×550
700×1200×650
850×1600×700
1200× 1680×900
Interior and Exterior
Material
Interior material is SUS 304# stainless steel,
exterior is stainless steel or see cold-rolled steel with paint coated.
Temperature Range
R.T. to 200; (300 to 500ºC is optional)
Indication Resolution/
Distribution Uniformity
of Temperature
0.1ºC/±2.0ºC;( When temperature is 100ºC)
Control Accuracy of Temperature
±0.5ºC;
Temperature Rising Velocity
Temperature rising velocity: from R.T. to 200ºC,needs approx. 35mins
Control Method
Micro PID+SSR+Timer

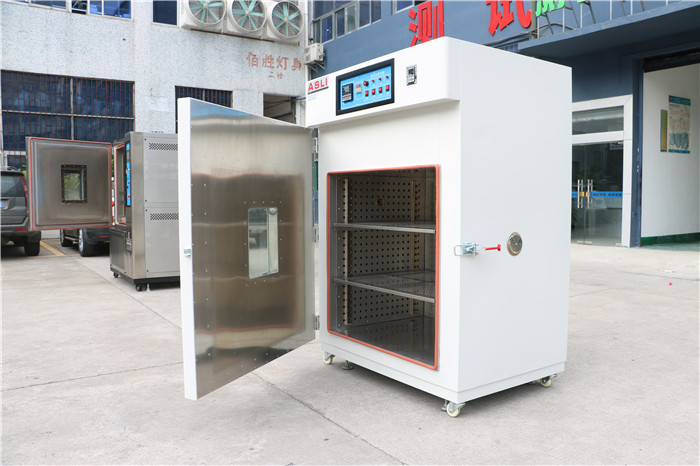

Storage Shelf
Two layers
Viewing Window
When temperature is RT to 200ºC ,with viewing widow
When temperature is 200ºC to 500ºC ,without viewing widow
Power
AC 220V 50/60HZ ; AC 380V 50/60HZ
High Temperature Aging Testing Oven Features:
1. Automatic temperature control with digital thermal-sensor
2. Excellent thermal insulation property of ovens wall, lower energy consumption,
3. Be able to pre-set temperature, digital temperature display with LED panel.
4. Temperature value flashes on indicator when reach preset value.
5. Circulation fan facility to keep even temperature and uniform heating
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. High Temperature Aging Testing Oven is our star products , and we had obtained the CE certification for this machine .
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days.
2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way. also accept LC at sight.
If you have any doubt or needs about High Temperature Aging Testing Oven, please don't hesitate to send your inquiry.
