30 years manufacturer
OEM available
High Cost-effective
CE Marked Equipment
SGS tested SUS#304 stainless steel
Application for humidity cycling testing chambers :
Programmable Control Environmental Temperature Humidity Testing Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
| Model | TH-80(A~F) | TH-150(A~F) | TH-225(A~F) | TH-408(A~F) | |||
| Internal Dimension W*H*D (mm) |
400*500*400 | 500*600*500 | 600*750*500 | 600*850*800 | |||
| Internal Dimension W*H*D (mm) |
950*1650*950 | 1050*1750*1050 | 1200*1900*1150 | 1200*1950*1350 | |||
| Temperature Range | Low Temperature(A:25degres Celsius B:0degres Celsius C:-20degres CelsiusD:-40degres Celsius E:-60degres Celsius F:-70degres Celsius) High Temperature 150degres Celsius |
||||||
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier) | ||||||
| Indication relolution/ Distribution uniformity of temperature and humidity |
0.1degres Celsius; 0.1% R.H/±2.0degres Celsius; ±3.0% R.H. | ||||||
| Control Accuracy of Temperature and Humidity |
±0.5degres Celsius; ±2.5% R.H. | ||||||
| Temperature Rising/ Falling Velocity |
Temperature rising approx. 0.1~3.0degres Celsius/min ; temperature falling approx. 0.3~1.0degres Celsius/min; ( faster changed raye is optional) |
||||||
| Inner and Outer Material | Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. |
||||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||
| Cooling System | Wind cooling or water cooling, (single segment compressor-40degres Celsius, double segment compressor -70degres Celsius) |
||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
||||||
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier | ||||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | ||||||
| Power | AC220V 1Ph 3 lines, 50/60HZ , AC380V 3Ph 5 lines , 50/60HZ | ||||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | |||
Constant Environment Temperature And Humidity Test Chamber/climatic Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

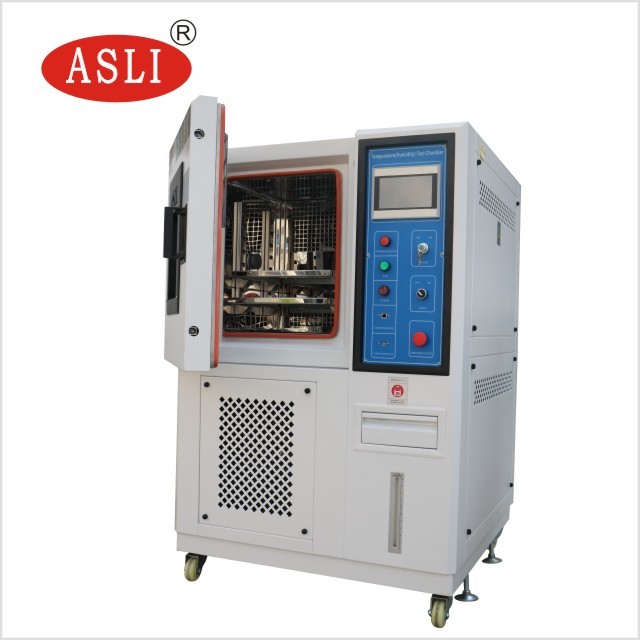

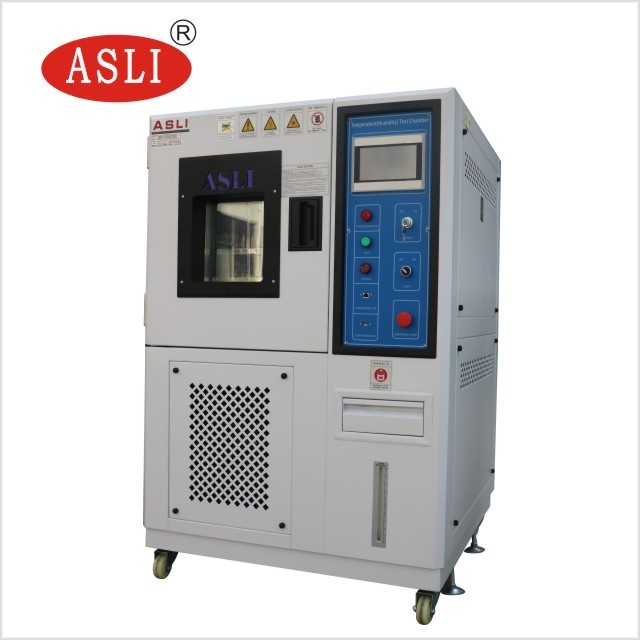

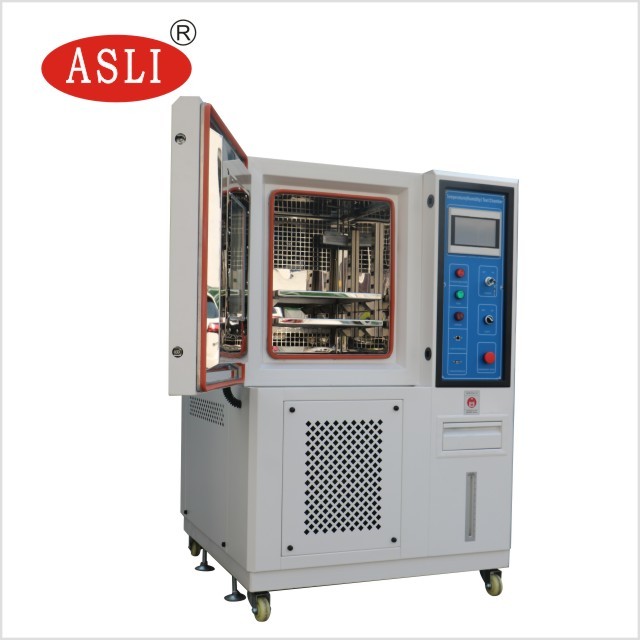

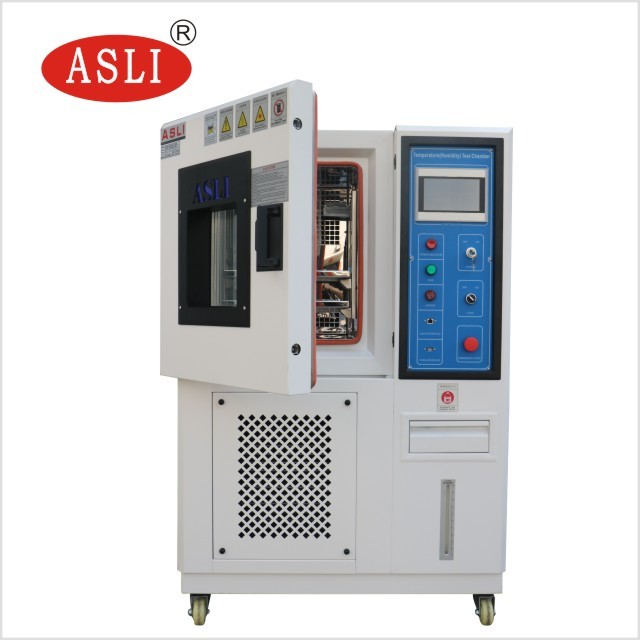

Pictures for reference:
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Temperature And Humidity Control Oven is our star products, and we had obtained the CE certification for this machine.
Warranty: One year free warranty for whole set machine, lifelong time maintainance.
After-sale service: Feedback within 2 hours after get the call.
Service: OEM service, Design service, Buyer lable service.
If you have any doubt or needs about Constant Environment Temperature And Humidity Test Chamber/climatic Chamber, please don't hesitate to send your inquiries.
