Name: 3 Zones Thermal Shock Test Chamber For Semiconductor
Brand: ASLi (China) Test Equipment Co., Ltd
SKU: TS-49-C
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Internal Dimension: W400*H350*D350mm

Volume: 49L

Temperature Range: -65~150C

Temperature Recovery Time: Within 5 Mins

Conversion Time: Within 5S

Control Accuracy: +/-0.5C

Application: Semiconductor

Type: 3 Zones Type

Highlight:

Thermal Shock Test Chamber for Semiconductor

3Zones Thermal Shock Test Chamber

49L Environmental Test Chamber

Basic Infomation

Place of Origin: China

Brand Name: ASLI

Certification: CE, ISO

Model Number: TS-49-C

Payment & Shipping Terms

Packaging Details: strongly export plywood case

Delivery Time: 30 workdays

Payment Terms: T/T, Western Union

Supply Ability: 100 sets per quatar

Gallery

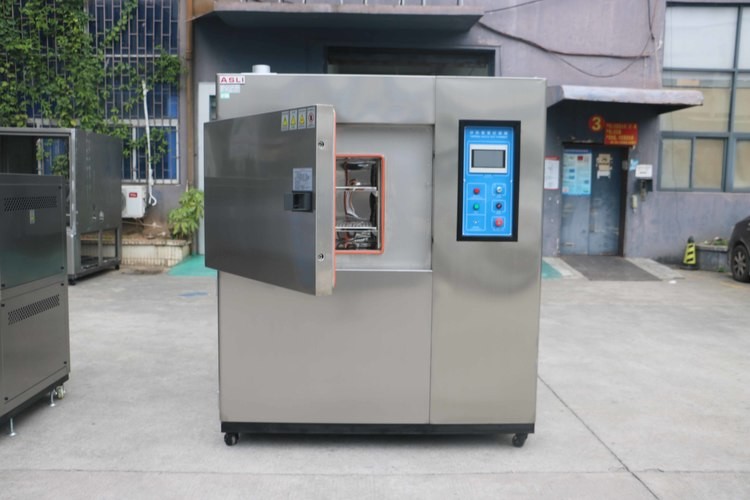

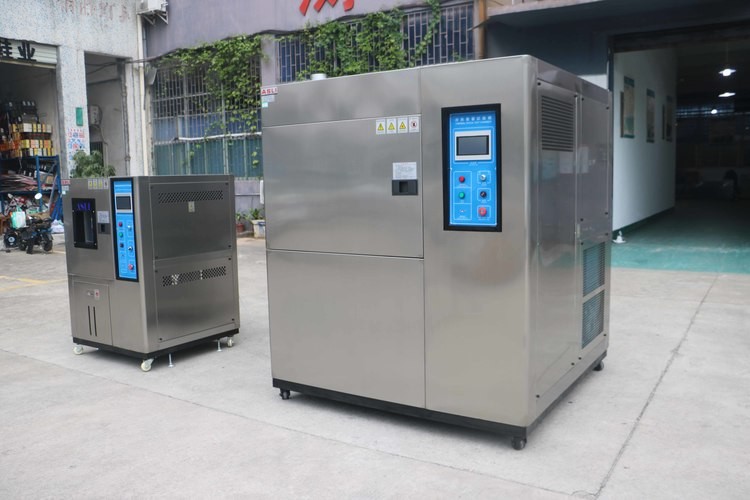

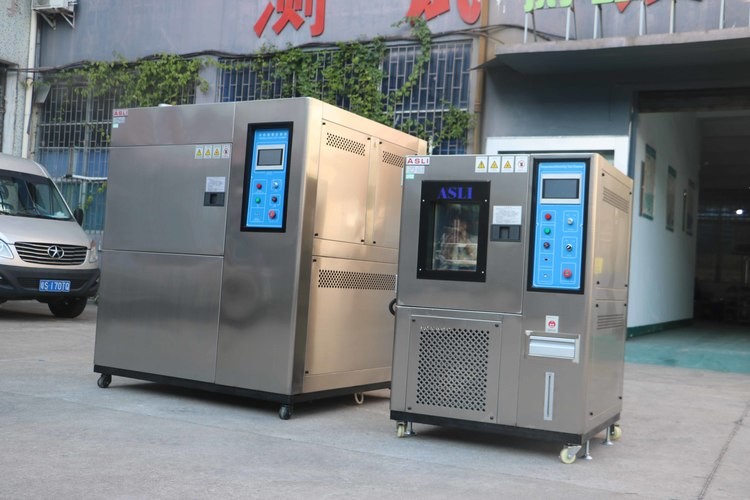

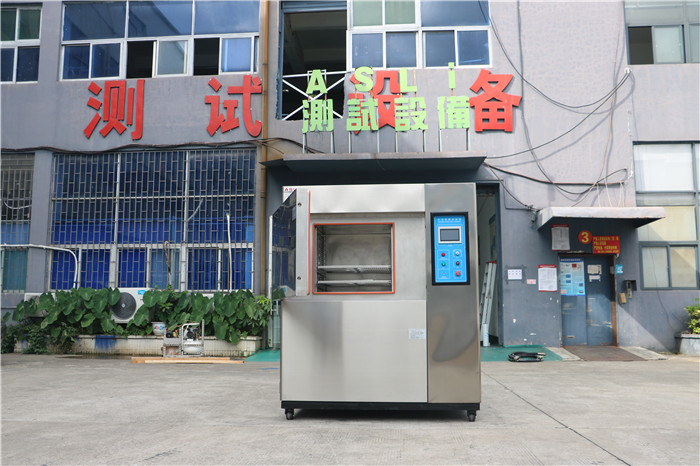

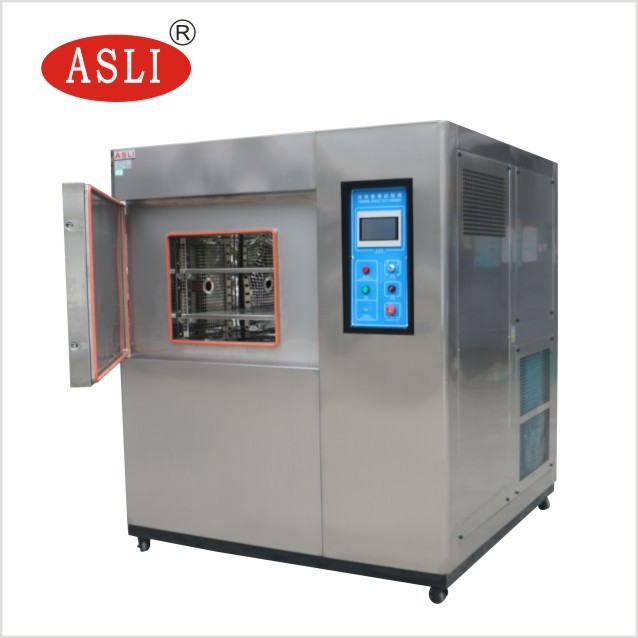

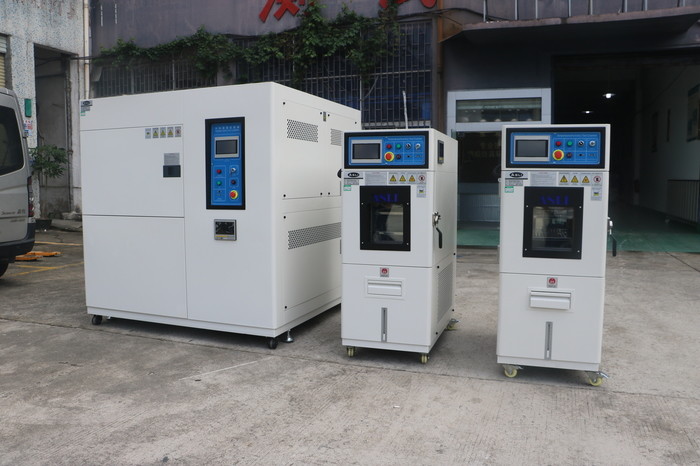

3 Zones Thermal Shock Test Chamber For Semiconductor

Product Description

3 Zone Thermal Shock Test Chamber For Semiconductor is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm, which is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.

Specification

Model	TS-49(A~C)	TS-80(A~C)	TS-150(A~C)		TS-252(A~C)	TS-450(A~C)
Internal Dimension WxHxD (mm)	400X350X350	500X400X400	600X500X500		700X600X600	800X750X750
External Dimension WxHxD (mm)	1400X1800X1400	1550X1950X1550	1600X2000X1700		1700X2100X1750	1800X2200X1900
Temperature Range of Testing zone	Type A: -40 ºC~+150ºC ( 200ºC is Optional)			Type B: -55ºC ~+150ºC ( 200ºC is Optional )		Type C: -65ºC ~+150ºC ( 200ºC is Optional)
	High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
Exposure Time of High/Low Temperature	Exposure Time of High Temperature: +60ºC ~ +150ºC (200ºC is Optional) 30Mins
	Exposure Time of Low Temperature: -10ºC~Type A: -40ºC / Type B -55ºC / Type C -65ºC 30Mins
Temperature of Heat-Storing Slot / Heating Time	RT~200ºC/About 45mins
Temperature of Cool-storing Slot / Cooling Time	RT~-75ºC/ About 100mins
Temperature Recovery Time / Conversion Time	≤5min/≤5sec
Control Accuracy / Distribution Uniformity	±0.5ºC/±2ºC
Internal and External Material	Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material	High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials
Mechanics	P. I. D+S. S. R+ Micro-computer balanced temperature control system
Cooling System	Semi-hermetic double-stage compressor(water-cooled type) / Hermetic double-stage compressor (air-cooled type)
Security Protection Devices	Non-fuse breaker, high and low pressure protective switch of the compressor, refrigerator high-pressure protective switch, failure warning system, electronic alarm
Accessories	viewing window(special order)
Compressor	French 'Tecumseh' Brand, Germany Bizer Brand
Power	AC380V 3phase 5 lines, 50/60Hz
Weight (Approx)	450 Kg	600 Kg	750 Kg		900 Kg	1300 Kg

3 Zone Thermal Shock Test Chamber For Semiconductor Testing Specific:
GB/T 2431.1-2001 Testing A: Low temperature testing method
GB/T 2431.2-2001 Testing B: High temperature testing method
GJB 150.3-1986: High temperature
GJB 150.4-1986: Low temperature
IEC68-2-1 Test A: Cold
IEC68-2-2 Test A: Dry
GB 11158 High and low temperature test term
GB/T 2423.2 << Electrolic products basic environmental test: B: high temperature method>>

Cooling system and temperature control:
1. Working way: Size selection for machine model; the cascade of mechanical refrigeration; air-cooling.
2. Refrigeration Compressors: Imported famous brand low efficiency hermetic or semi-hermetic compressors.

3. Evaporator: Fin-type multi-stage automatic load capacity adjustment evaporator.
4. Condenser: Shell and tube heat dissipation condensation.
5. System expansion: Refrigeration system capacity control purposes
6. Cooled heat exchanger: Made in Taiwan ultra-high efficiency stainless steel plate.
7. Cooled machine control mode: Control system controller automatically adjusts the cooled operating conditions based on test conditions than the traditional design, control stability and reproducibility of high power and achieve effectiveness. Return air compressor cooling circuit.
8. Refrigerant and refrigeration piping: R22, R-23, R404A, Environmental Protection; indices are zero ozone depletion refrigerant pipes have automatic and manual defrost function

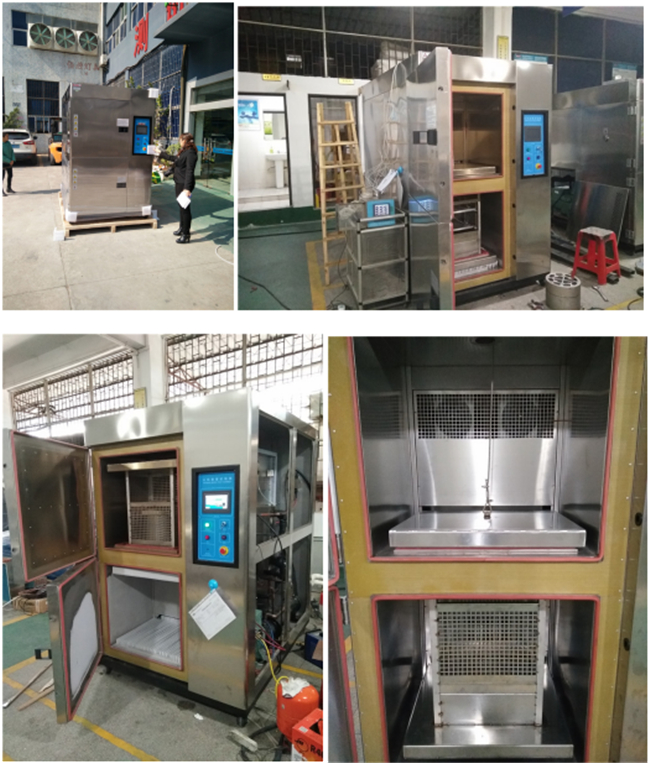

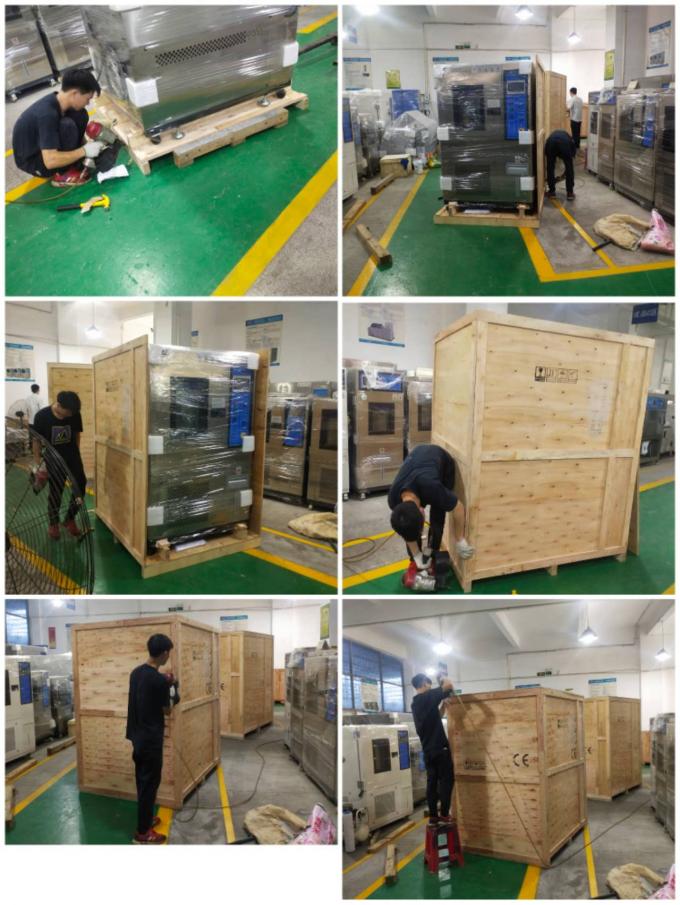

Packing & Delivery

strongly export plywood case for free

Company Profile

ASLI Company, a leading laboratory test equipment manufacturer in China. With over 28 years of experience in the industry, we take pride in our top-quality products and services that have gained the trust of our customers worldwide.

Below equipment we supply:
Temperature Humidity Test Chamber
3 Zone Thermal Shock Test Chamber
PCT/HAST Aging Test Chamber
High Temperature Furnace/Oven
High Frequency Vibration Shaker
Drop Test Machine
Mechanical Impact Test Table
Salt Spray Test Chamber
...

We are committed to providing our clients with the best equipment that meets international standards and specifications. Our team of experts ensures that our products undergo strict quality assurance and inspection processes to ensure their durability, reliability, and efficiency.

If you have any doubt or needs about 3 Zones Thermal Shock Test Chamber for Semiconductor, please don't hesitate to send your inquiry.
