High Frequency Simulated Mechanical Shock Test Equipment for IEC62133/UL1642/UN38.3/GB31241
High Frequency Package Simulated Transport Vibration Machine
Test requirements:
1. IEC62133
2. UL1642
3. UN38.3
4. GB31241
High Acceleration Mechanical Shock Testing Machine for Lithium Battery is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve and perfect products
Technical Parameters:
| System Model: | SS-10 | ||
| Max load: | 10kgs | ||
| Bench Dimension: | 200x200 mm | ||
| Shock Acceleration m/s2 Peak value |
half sine wave | 150~150000 | |
| Pause Width ms |
half sine wave | 1.5~18 | |
| Drive mode | Mechanical drive | ||
| Outer dimension: | w800xd900xH2200 | ||
| Power supply: | AC380V 3Phase 5 lines | ||
Good durability customized digital mechanical tester for acceleration shock test for home appliances test Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves
Standard Compliance
1.YD/T 2344.1-2011 LiFePO4battery system for telecommunications. Part 1:Integrated battery system
2.GB/T 2423.5 Environmental testing for electric and electronic products. Part 2: Test methods. Test Ea and guidance: Shock
3.GB/T 2423.6 Environmental testing for electric and electronic products. Part 2: Test methods. Test Eb and guidance: Bump
4.IEC 68-2-29Test Eb and guidance:Bump
5.JJG497-2000Verification Regulation of Bump Testing Machines

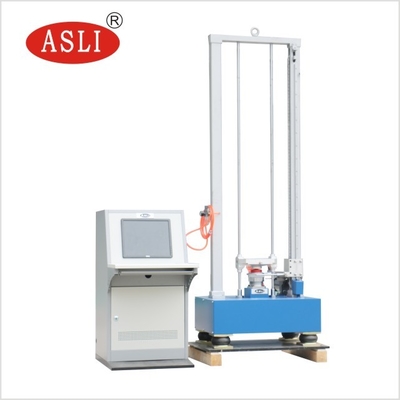

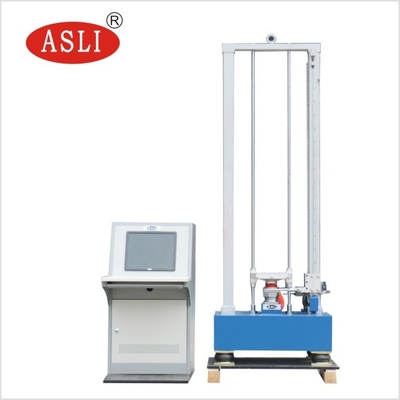

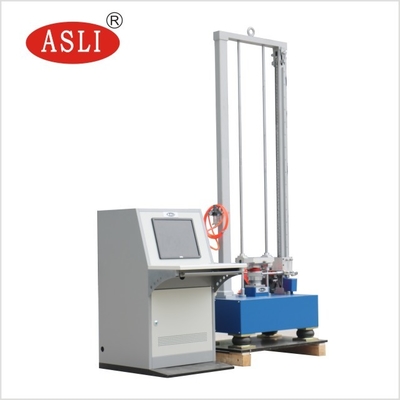

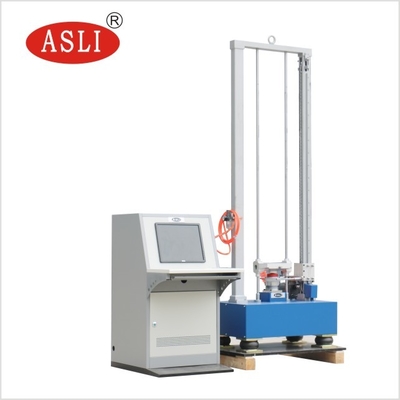

Pictures for reference:
