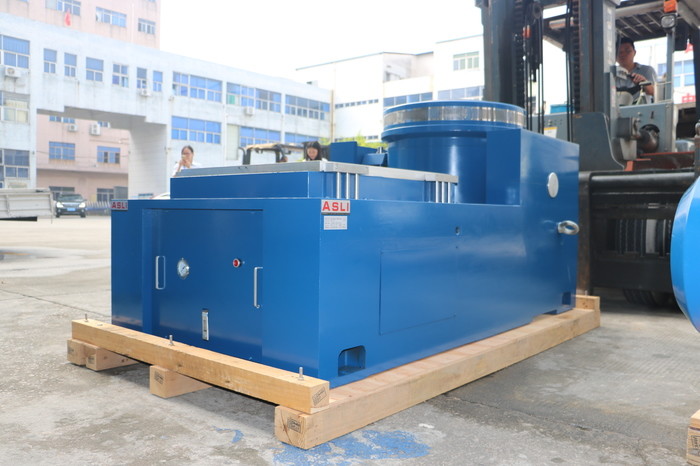

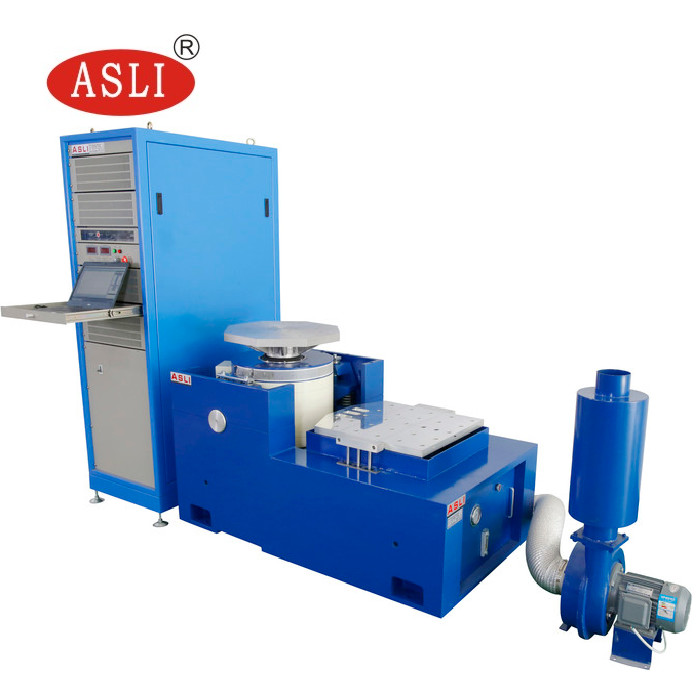

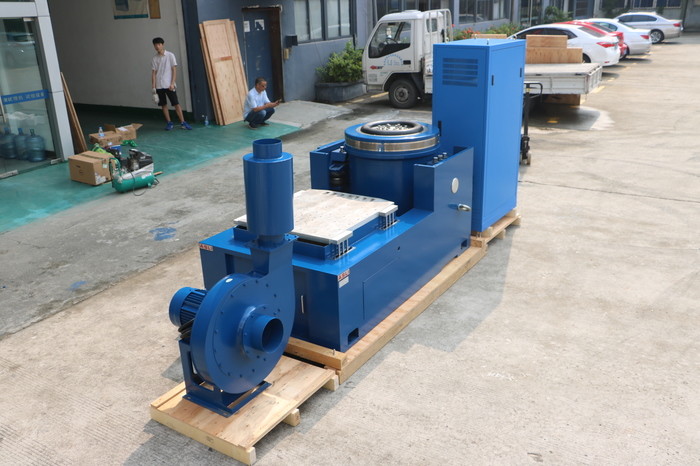

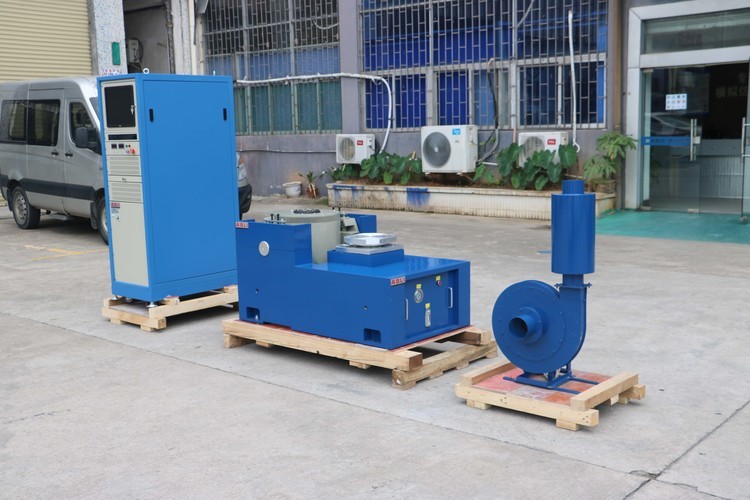

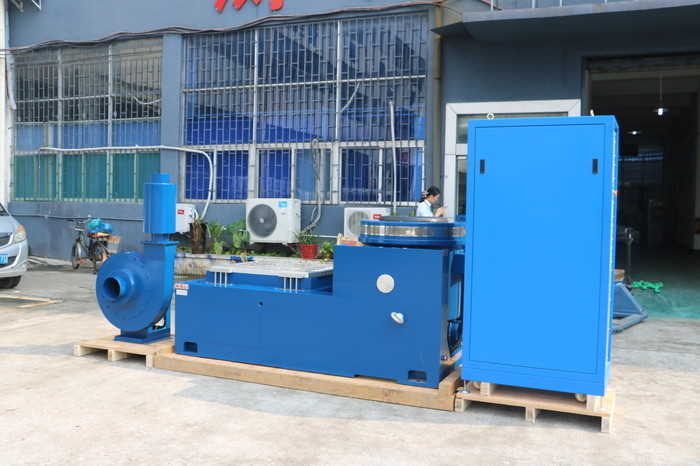

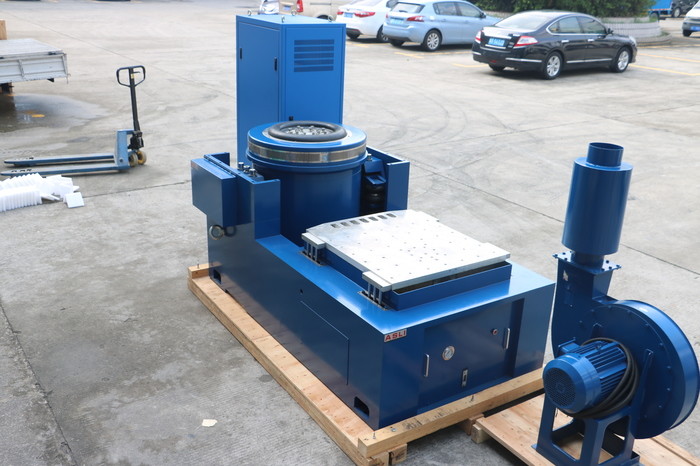

IEC61300-2-1 High Frequency Vertical And Horizontal Electrodynamics Vibration Testing Machine
A vibration test machine is a specialized mechanical device used to perform vibration testing on different materials, components, and systems. It works by generating controlled mechanical vibrations that simulate environmental conditions and operational stresses that a product may encounter during its normal usage or during transportation and storage.
The primary function of a vibration test machine is to determine the mechanical endurance, structural integrity, and reliability of the product under a wide range of dynamic and vibrational loads. The machine subjects the test specimen to a series of force inputs at varying frequencies and amplitudes and measures its response and behavior to evaluate the product's quality and safety.
Vibration test machines can simulate various types of dynamic loads, including random, sinusoidal, and shock vibrations. The machines are usually electromechanical or hydraulic and consist of a vibration table or platform, a shaker or actuator, and a control system that synchronizes and regulates the vibration input.
The vibration test machine's main applications include product development, quality control, and compliance testing, where products must meet specific standards and regulations. The machine can simulate various environmental conditions, including temperature, humidity, and altitude, helping engineers to identify design flaws and improve product performance.
Overall, the vibration test machine's function is to provide a reliable and repeatable means of testing product durability and performance under simulated real-world conditions and aid in improving product quality and safety.
1. Model: ES-1 ES-2 ES-3...ES-350
2. Rated Sine Force (N): 1000 to 3500000
3. Rated Random Force (N): 1000 to 3500000
4. Frequency Range (HZ): 3 to 3500
5. Rated Acceleration(m/s2): 400 to 1000
6. Rated Velocity(m/s): 1.2 to 1.8
7. Rated displacement (p-p, mm) 25 to 51
8. Max.Loading(kg): 70 to 4500
9. Moving Coil(kg): 2.5 to 300
10. Dimension of moving coil(mm): 150 to 870
Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 |
5-1000 5-1200 5-2000 |
27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 |
5-800 5-1000 5-1500 |
36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800× 800×45 |
5-1000 5-1500 5-2000 |
57.7 76.9 86.5 |
| LT 1010 | 1000× 1000×30 1000× 1000×40 1000× 1000×50 |
5-1000 5-1300 5-1500 |
89.1 118.8 147 |
| LT 1212 | 1200× 1200×30 1200× 1200×40 1200× 1200×50 |
5-800 5-1100 5-1400 |
126 168 210 |
Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200 × 1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
If you have any doubt or needs about IEC61300-2-1 High Frequency Vertical And Horizontal Electrodynamics Vibration Testing Machine, please don't hesitate to send your inquiry.
