ES-6 vibration test equipment.pdf
High Frequency Vibration Tester For Electrical Components
air cooling vibration test system to suit different customer applications and requirements. Whether for national customer or overseas clients, we have professionla engineers to provide onsite installation and after sales services.
Technical Parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
The machine base uses the high quality material, installs conveniently, the operation is smooth, does not need to install the The, the control circuit digitization control and the display frequency, the PID adjusts the function, causes the equipment work to be more stable, reliable, sweeps the frequency and the fixed frequency operation way, adapts to the different profession test request To solve the interference of the strong electromagnetic field to the control circuit, and to increase the working time set, so that the test product reaches the accurate test time.
technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 |
5-1000 5-1200 5-2000 |
27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 |
5-800 5-1000 5-1500 |
36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800× 800×45 |
5-1000 5-1500 5-2000 |
57.7 76.9 86.5 |
| LT 1010 | 1000× 1000×30 1000× 1000×40 1000× 1000×50 |
5-1000 5-1300 5-1500 |
89.1 118.8 147 |
| LT 1212 | 1200× 1200×30 1200× 1200×40 1200× 1200×50 |
5-800 5-1100 5-1400 |
126 168 210 |
Test standard:
GB/T 31486-2015 <Electrical performance requirements and test methods for traction battery of electric vehicle> Test requirements
UL 1642:2012 < Standard for Lithium batteries>
UL 2054: 2012 < Household and Commercial Batteries>
UN38.3(2012) <Part 3: proposal for dangerous goods transport - test and standard manual>
IEC62133-2:2017 < Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications-Parts 2: Lithium systems>

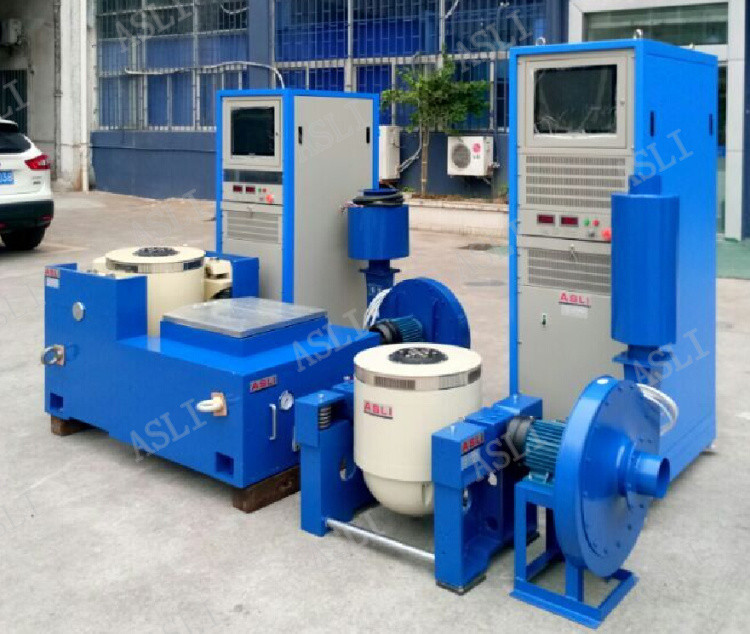

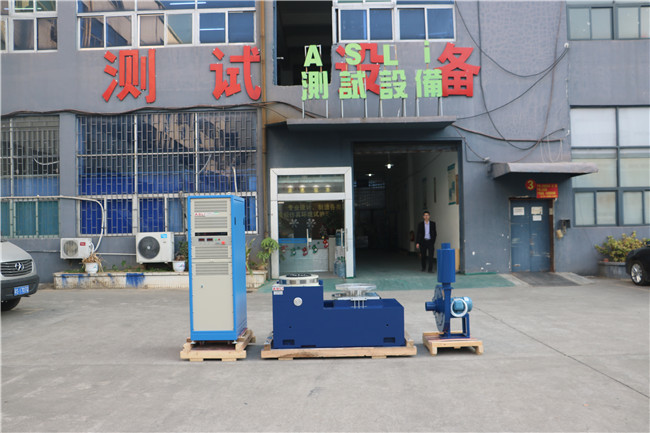

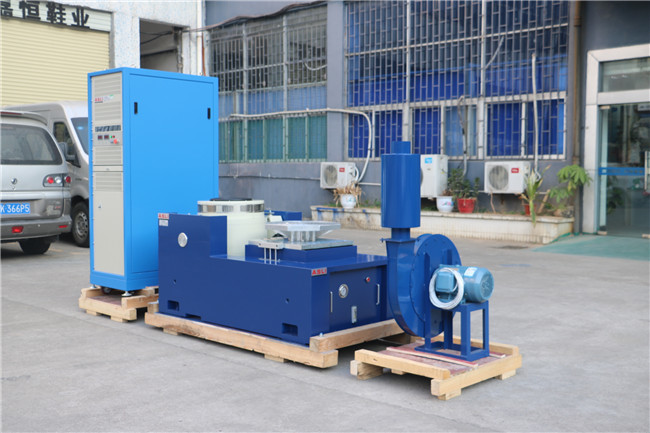

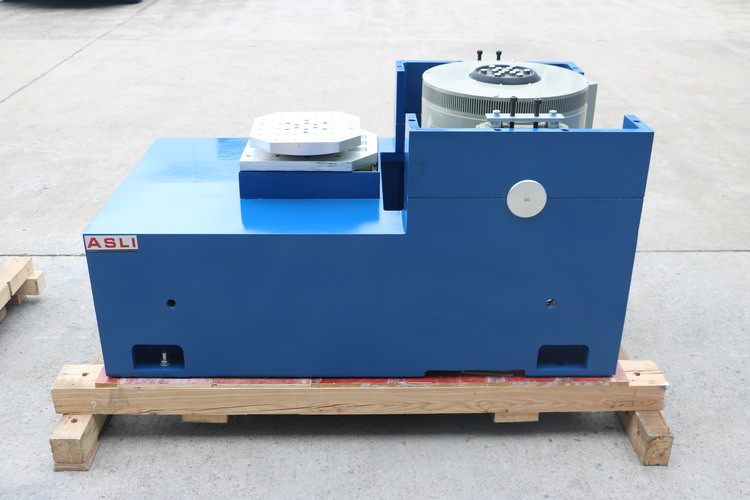

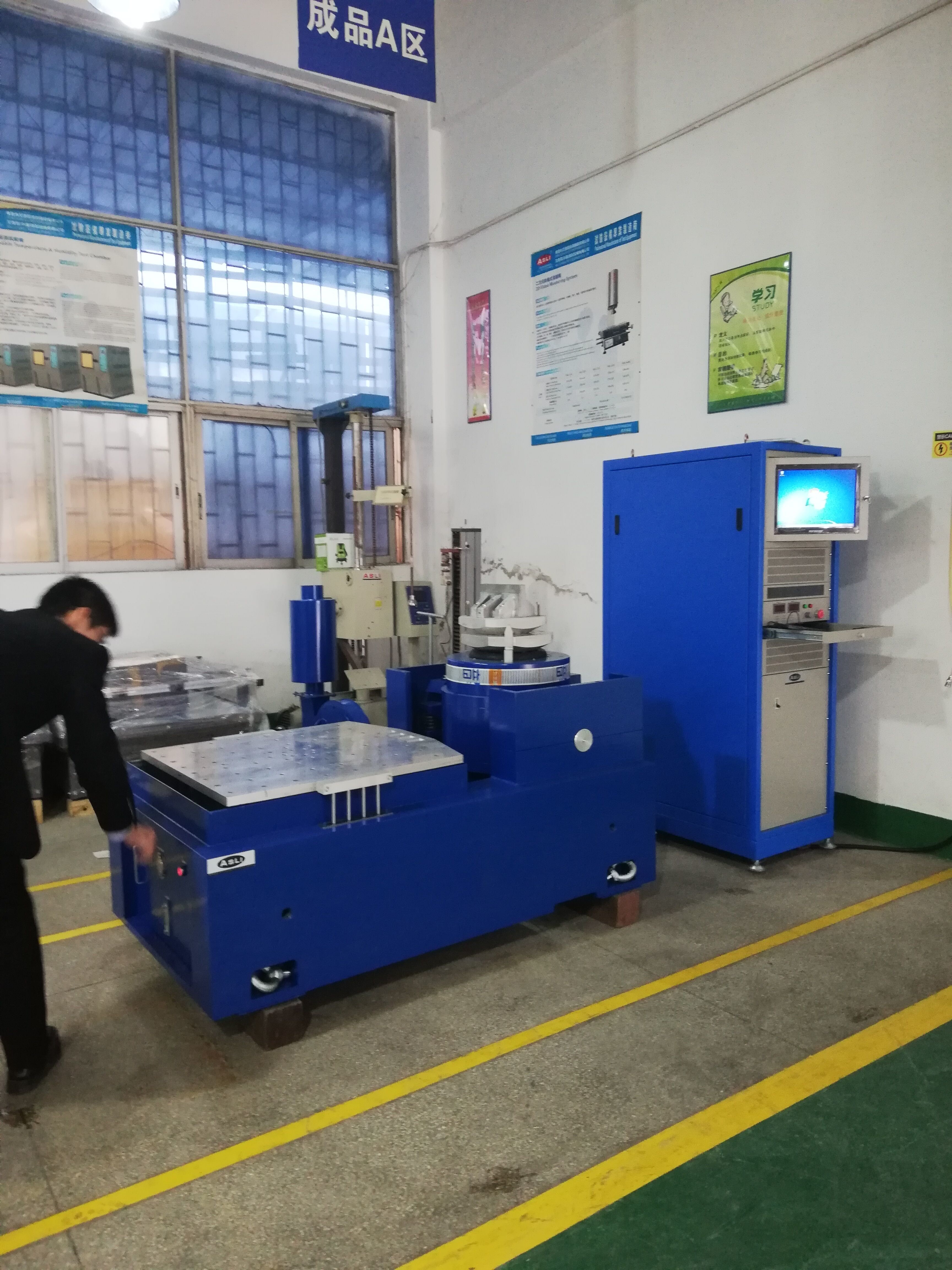

Pictures for reference:
Any doubt or needs about High Frequency Vibration Tester For Electrical Components, please feel free to contact us.
