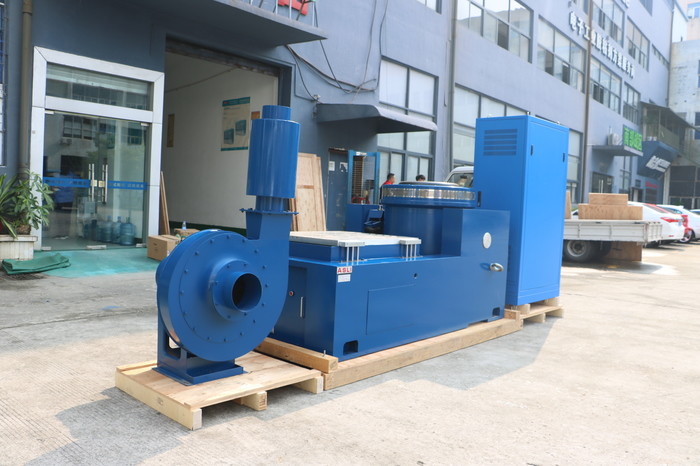

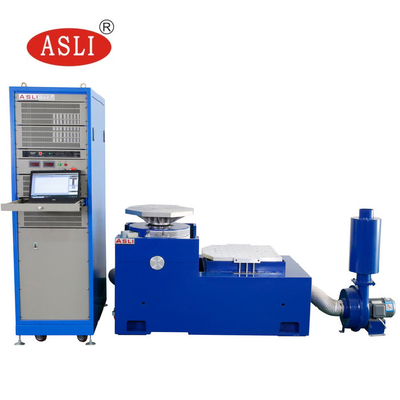

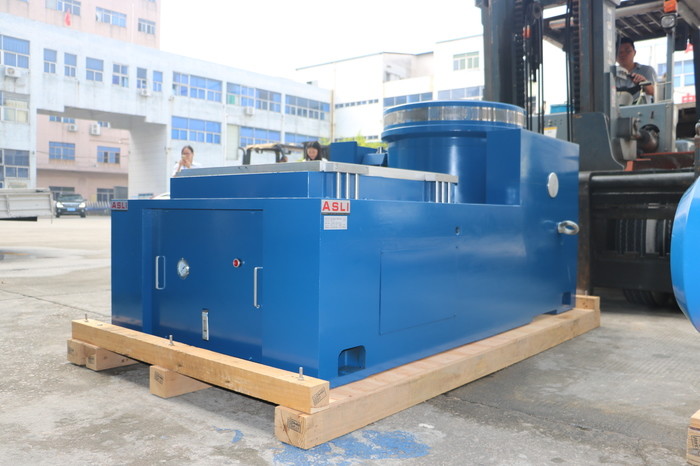

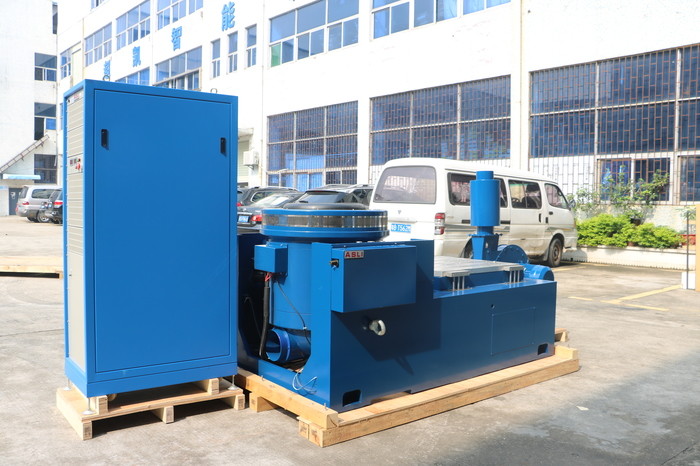

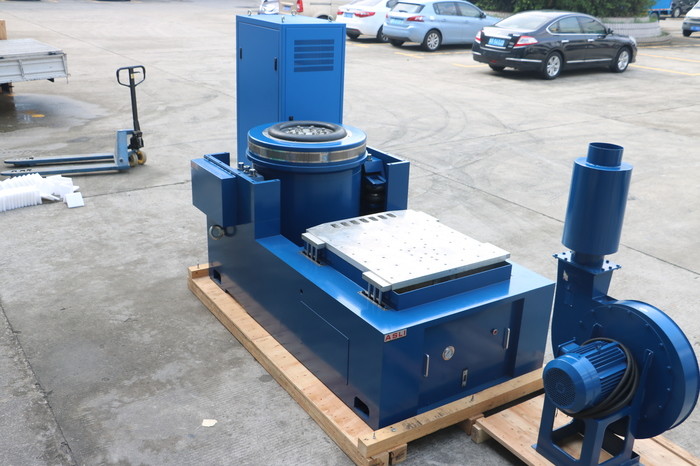

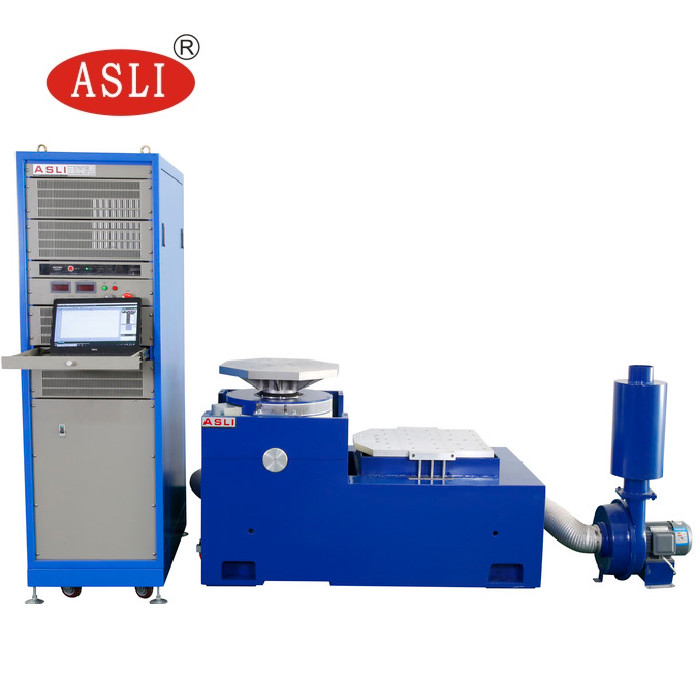

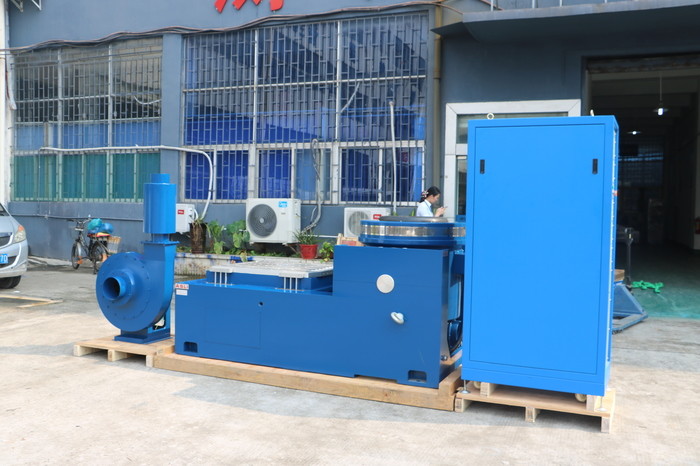

High Frequency Horizontal Vibration Tester For Automotive Testing with Vertical Expander
MULTI-MODE REGULATION
Sine,random,resonant search and dwell , typical impact and road simulation modes .
STRONGE CARRYING CAPACITY
the central load airbag has large static stiffness ,small dynamic rigidity ,strong carry capacity and good effect when the amplitudes changes .
INTERFERENCE CONTROL
Double magnetic design flux leakage and the magnetic field is uniformly solved to strong electromagnetic field control circuit interference
technical parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
technical parameters of vertical expander:
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
Besides vibration tester, our product range also covers:
(1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in stability, Thermal shock test chamber, Temperature Humidity UV test chamber, Ramp rate temperature chamber.
(2) Aging test series: High Temperature oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone test chamber, Burn in test equipment
(3) Weather simulation test series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV resistance test chamber
(4) Mechanical test series: Vibration test machine, Drop test machine , Bump Test Machine, Acceleration mechanical shock tester etc.
Packing Detail:
If you need more information about High Frequency Horizontal Vibration Tester For Automotive Testing with Vertical Expander, please don't hesitate to send your inquiry.
