High Frequency Electrodynamic Vibration Test System for Shock and Vibration Testing
vibration test equipment ES-20.pdf
why is vibration test necessary
Not hard to understand Vibration may influence the durability and reliability of machinery systems or structures and cause problems such as damage, abnormal stopping, and catastrophic failures. Vibration measurement is an important countermeasure to prevent these problems from occurring
Please feel free to get us in contact right away for any question of yours.
Test system composition

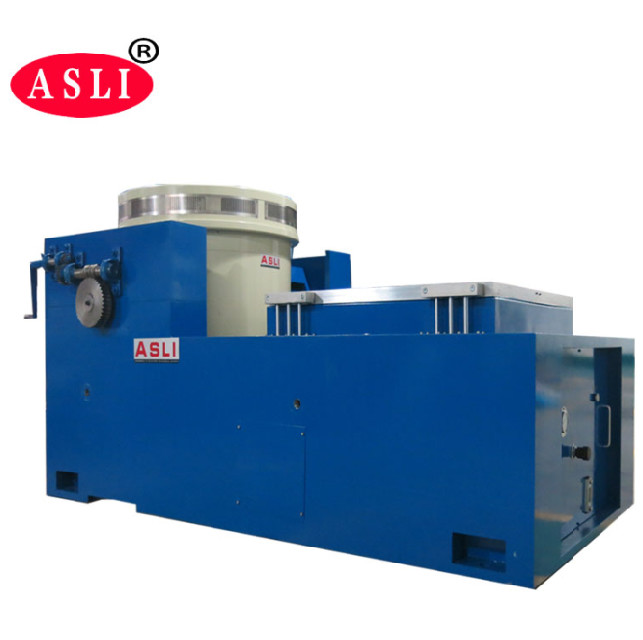

1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.
4000kgf Force 100G Shock And Vibration Testing System For MIL STD 810 G 514.6 Vibration Testing Specification
| Name | Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
Any doubt or needs about High Frequency Electrodynamic Vibration Test System for Shock and Vibration Testing, please don't hesitate to send your inquiry.
