high frequency acceleration vibration table testing equipment machine for battery test
What is Vibration Testing?
Vibration testing and data promotes a better understanding of machine health, efficiency and better productivity, estimates & operating schedules. By compiling and collating data of any machine’s lifetime of wear and stress into a short period of time, vibration testing helps by providing insights to the working status and condition of machines, structures and even products.
Download document for storage -- click here ----→ES-6 vibration test equipment.pdf
CE Approved high frequency acceleration vibration table testing equipment machine for battery test is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
Vibration Test Shaker Parameter:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed (m/s) |
Rated displacement (p-p) mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Product features
* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.
* Rapid self-examination diagnosis and chain protection, high safety and reliability;
* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
* Provide different use of horizontal and vertical expansion platforms;
* It can be used with all kinds of vibration controllers, and the operation is simple.

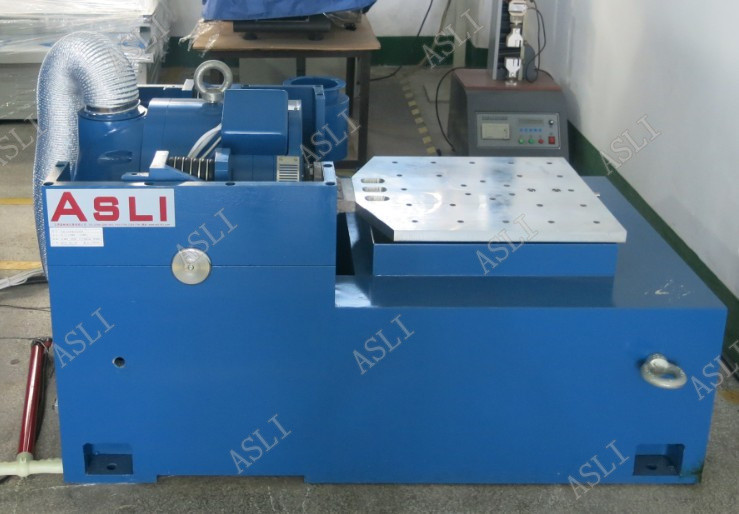

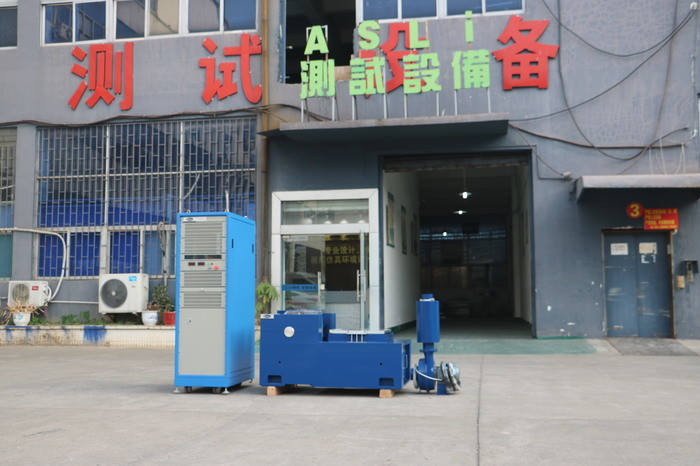

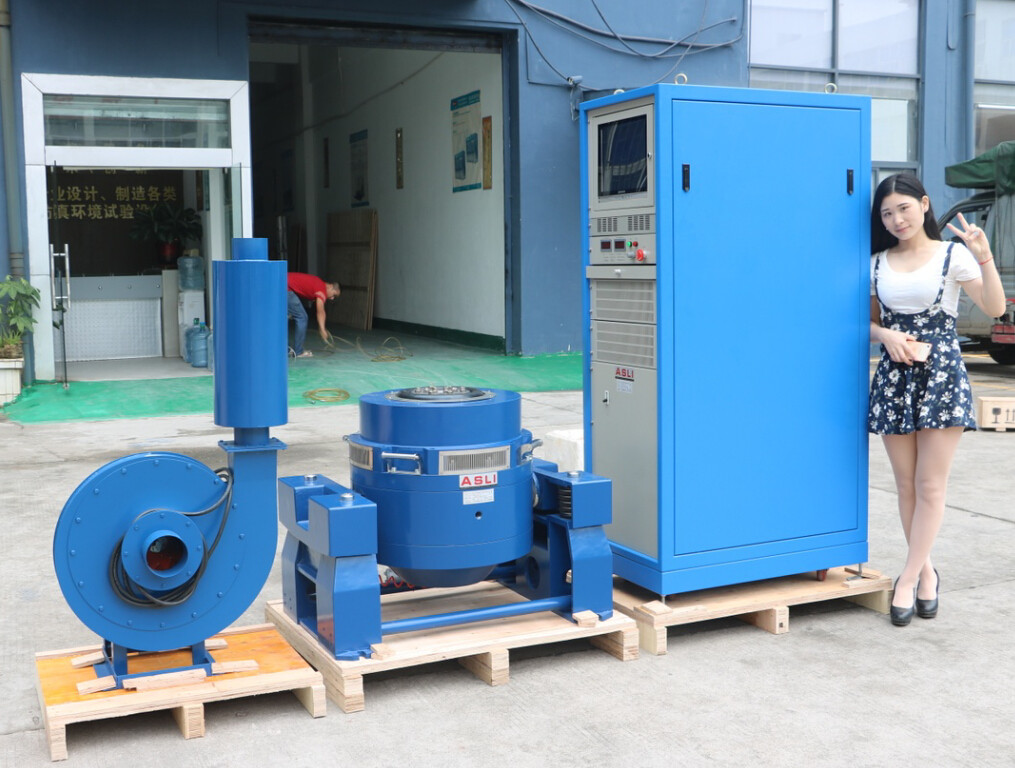

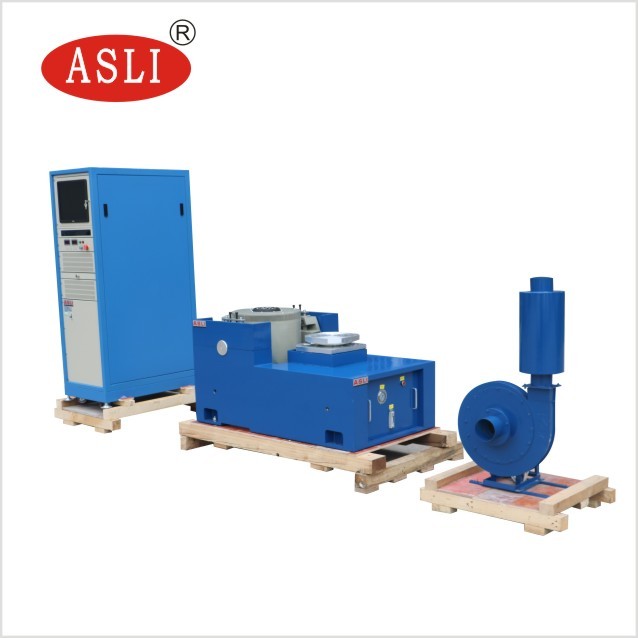

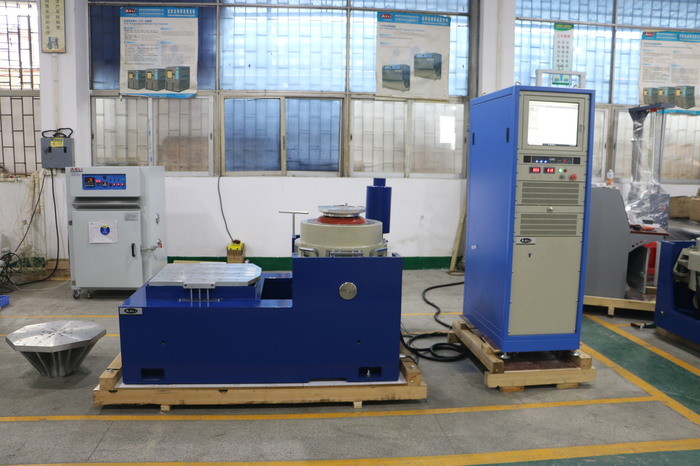

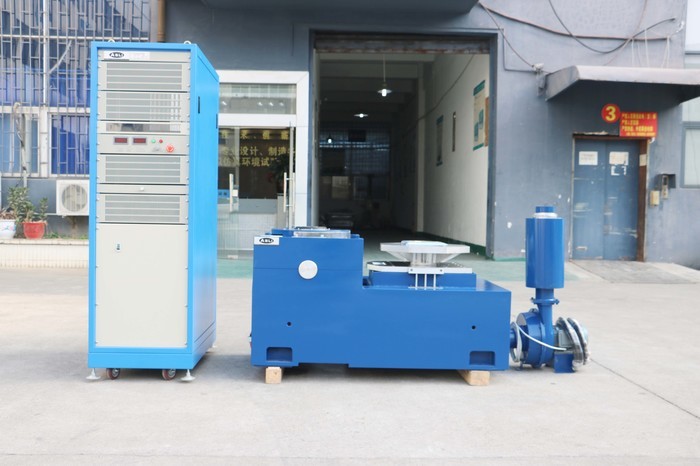

Pictures for reference:
Customers' Visit ASLI:
Exhibition:
If you need more information about high frequency acceleration vibration table testing equipment machine for battery test, please don't hesitate to send your inquiry.
