What is vibration testing?
Vibration testing under laboratory conditions mimics the conditions that a product or structure might see during its lifetime. Used to ensure that products are robust and perform safely during operation or transit, vibration testing detects performance issues and potential failures before they start.
Feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
Specification
| Brand | ASLI |
| Type | Vertical +Horizontal |
| Transmission Structure | Electromagnetic Shaker |
| Works | Electrodynamic Vibration |
| Axis | 3 Axis |
| Frequency range | 3-3500Hz |
| Amplitude | 51mm |
| Sweep rate | 1 octave/min |
| Number of axes | 3(X-Y-Z) |
| Duration | 90 min 2 cycles per axis |
| Supporting Device | Coil Spring |
| Customized | Customized |
| Rated Sine Force (N) | 1000 to 3500000 |
| Frequency Range (Hz) | 3 to 3500 |
| Rated Velocity(M/S) | 1.2 to 1.8 |
| Function | High Frequency Vibrating Screen |
| Usage | Experiments Shaker |
| Object | Electronic Parts |
| Running Track | Circular Vibrating Screen |
| Condition | New |
| Rated Random Force (N) | 1000 to 3500000 |
| Rated Acceleration(M/S2) | 400 to 1000 |
| Rated Displacement (P-P, mm) | 25 to 91 |
| Power | AC380V ,3 pH 3 Lines |
| Warranty | 1 Year |
| Certificate | CE |
Composition:

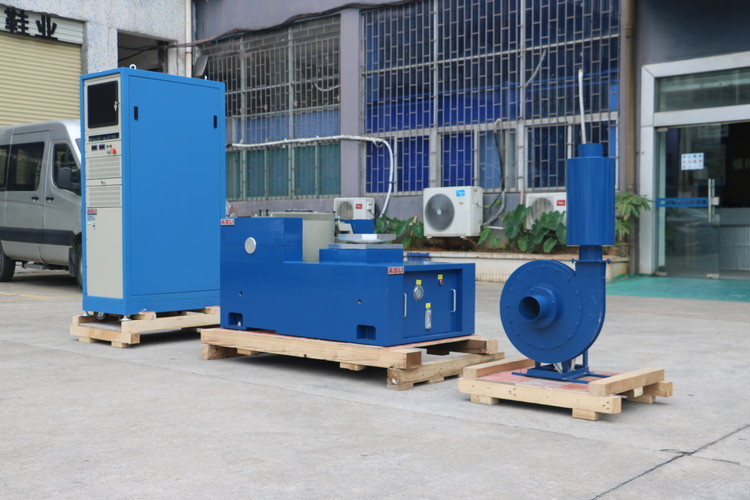

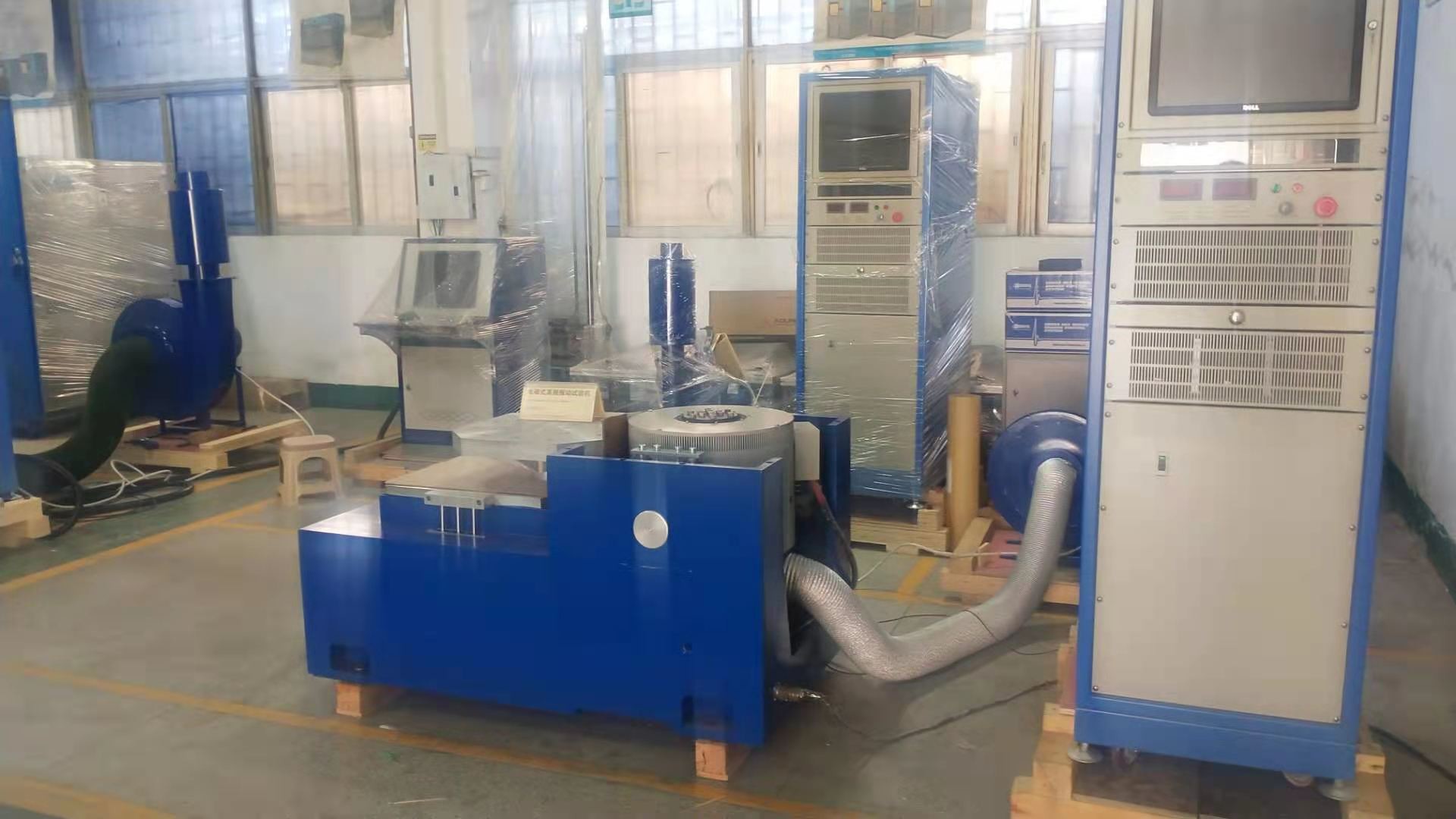

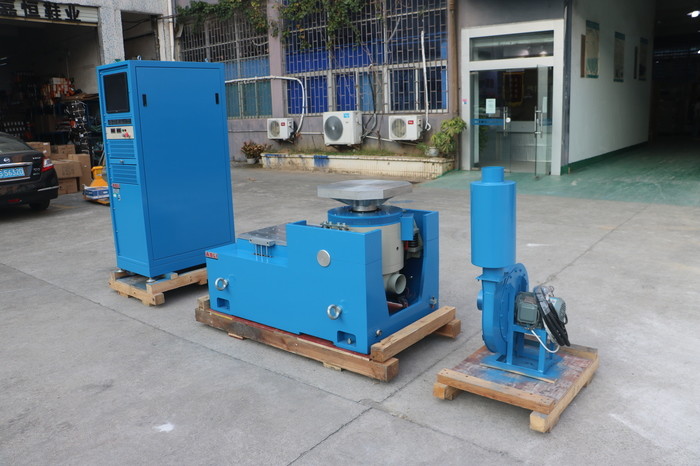

Vibration test bench, power amplify, cooling fan,Slip table,vertical expander

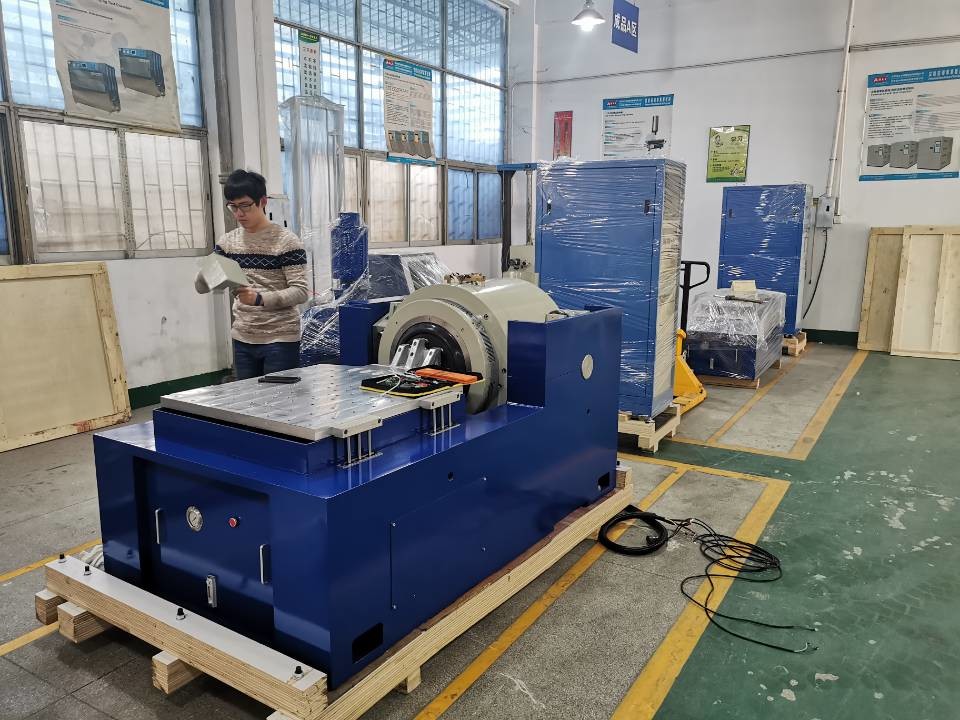

Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect
Description & Application
Customized XYZ Direction Simulating Vibrating Horizontal Vertical Vibration Test Machine is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Customized XYZ Direction Simulating Vibrating Horizontal Vertical Vibration Test Machine
