60KN Laboratory Vibration Table Test Equipment For New Energy Vehicle Parts ISO16750
Test standard:
Comply with JIS, UL, DIN, ISO, BS, MIL, IEC, ASTM and other related test standard.
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed (m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil (Kg) |
Dimension of Moving coil (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
Technical parameters of horizontal expander:
Model |
Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 |
5-1000 5-1200 5-2000 |
27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 |
5-800 5-1000 5-1500 |
36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800× 800×45 |
5-1000 5-1500 5-2000 |
57.7 76.9 86.5 |
| LT 1010 | 1000× 1000×30 1000× 1000×40 1000× 1000×50 |
5-1000 5-1300 5-1500 |
89.1 118.8 147 |
| LT 1212 | 1200× 1200×30 1200× 1200×40 1200× 1200×50 |
5-800 5-1100 5-1400 |
126 168 210 |
Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

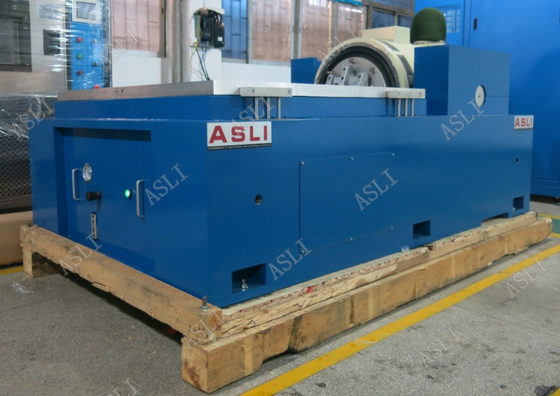

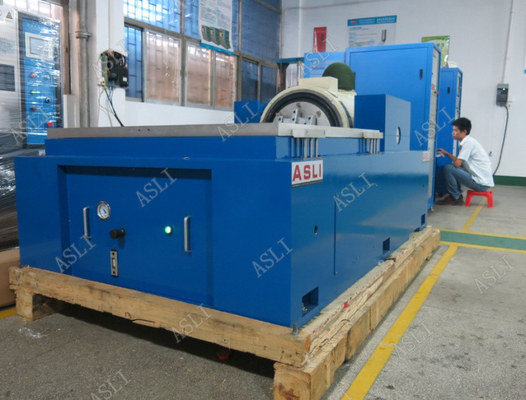

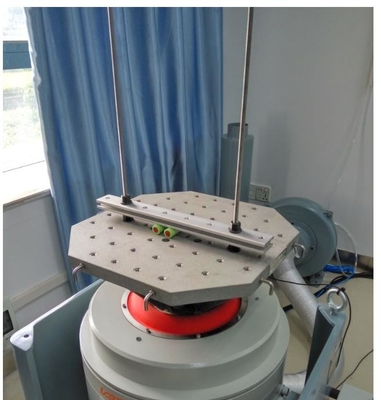

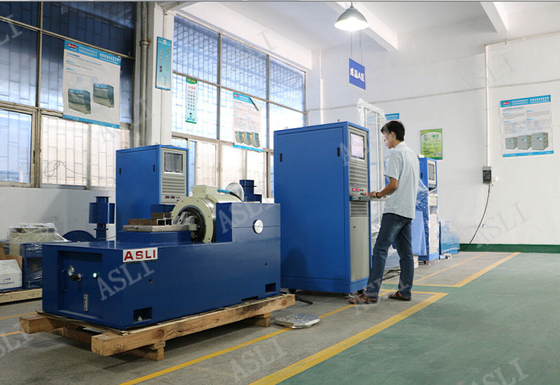

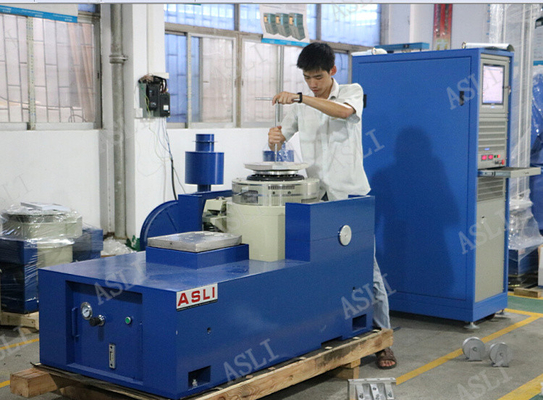

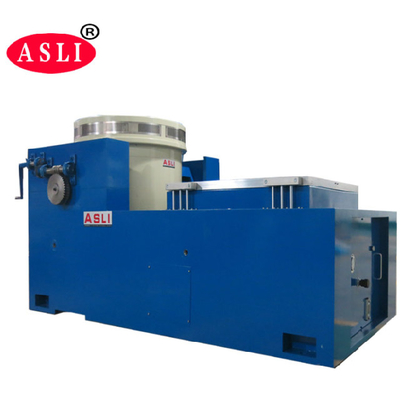

Pictures for reference:
