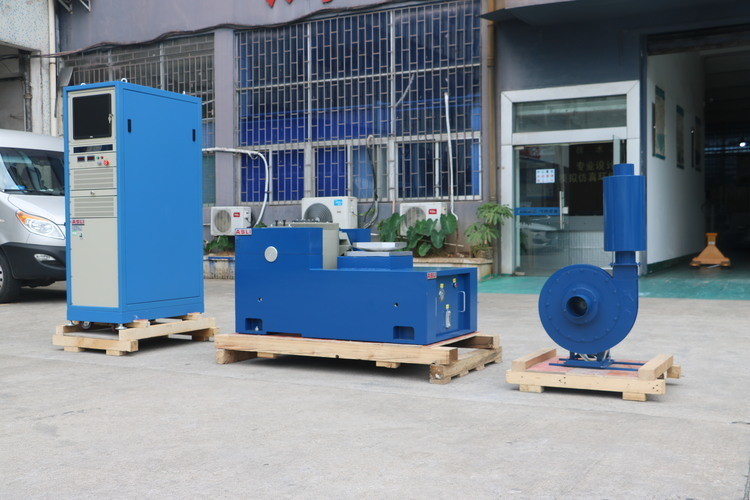

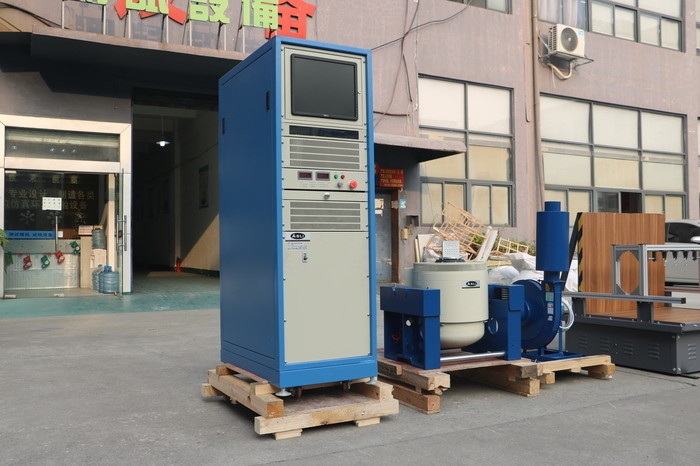

UN38.3 IEC 62133 Electromagnetic Vibration shaker System For Battery
Can a random signal be used for vibration testing?
A random signal used in vibration testing has a continu- ous spectrum, with amplitudes varying according to a Gaussian distribUtion. Within the specified frequency range any ampJlludes should be present, but in practice the generators and amplifiers will give limitations.

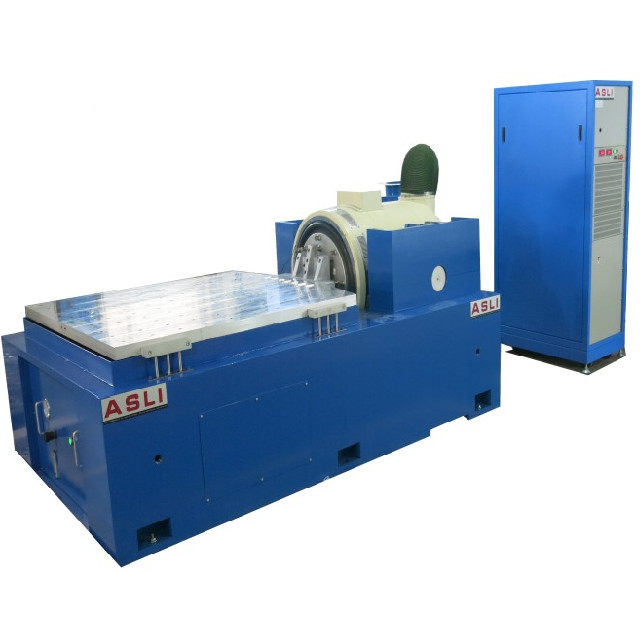

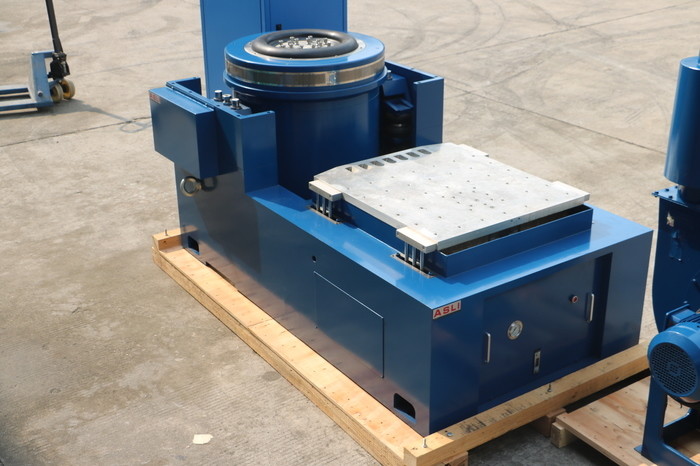

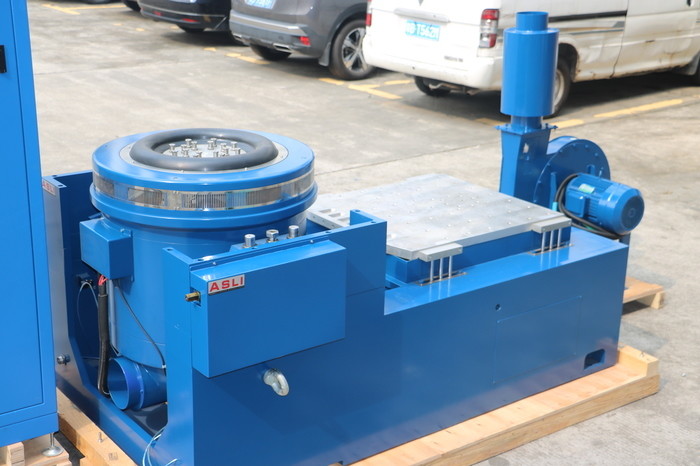

High frequency Vertical & Horizontal Generator Electromagnetic Vibration Shaker for Semiconductor are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the disribution or in-use environment. The machine are simple to use can perform a wide range of vibration test in accordance with government,industry and corporated specifications.
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
