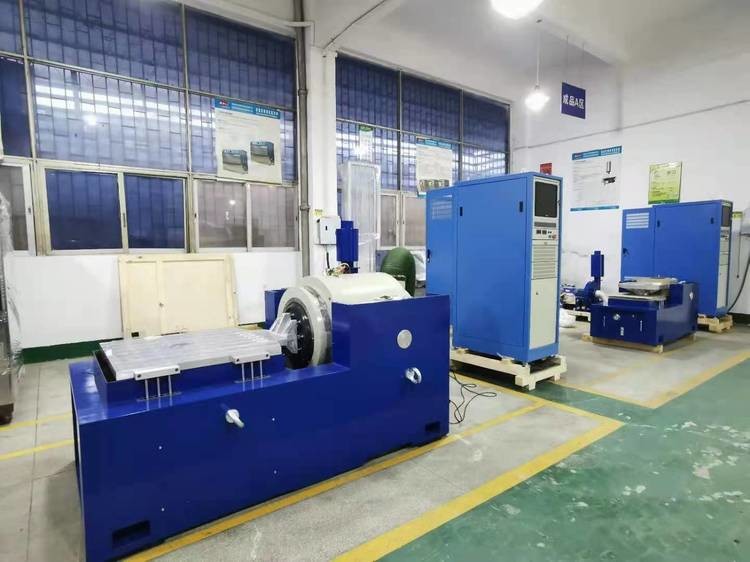

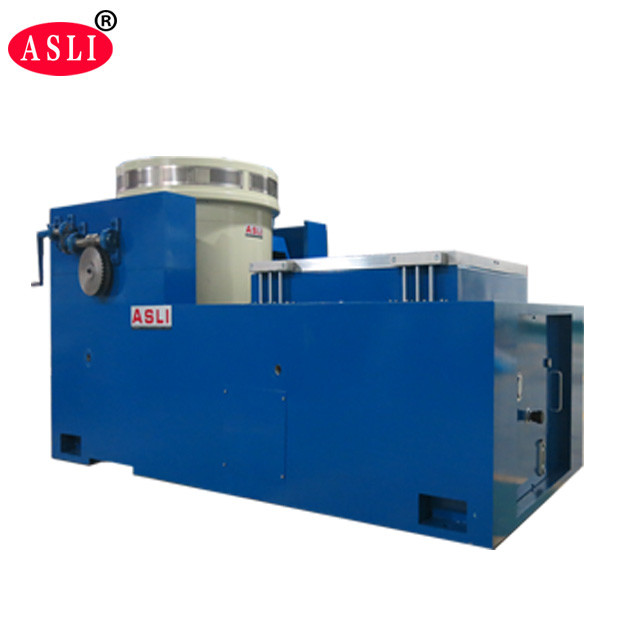

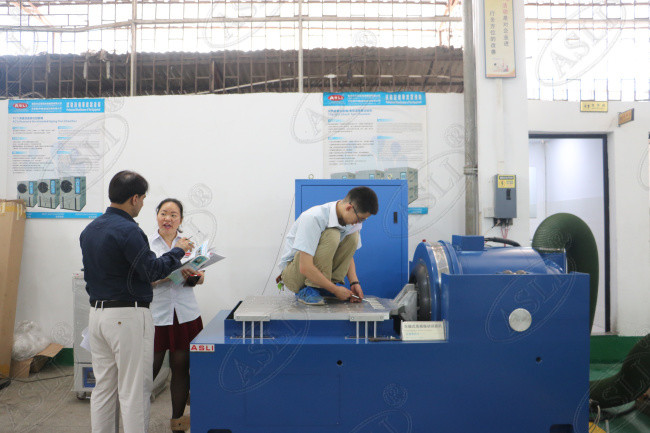

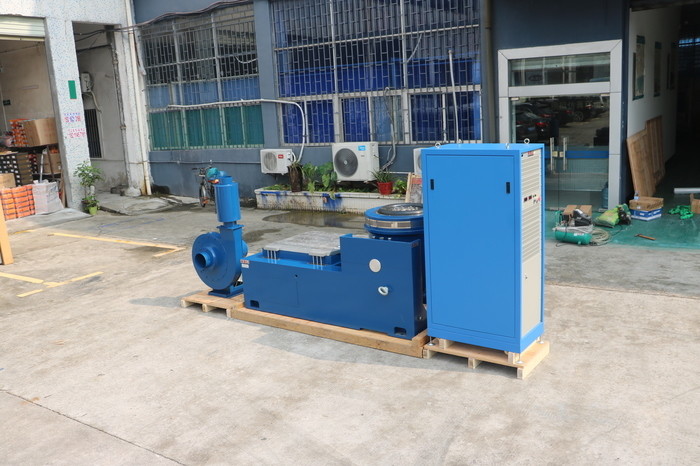

Electrodynamics High Frequency Vibration Shaker for IEC 62620 Li-ion Battery Vibration testing
vibration test equipment ES-20.pdf
Vibration testing is suitable for which industries?
Sine and random Electrodynamics High Frequency Vibration Shaker simulates a series of controlled vibration(ocean wave, wind blow, earthquake, rain...), produced by nutural or human-made.Testing products withstands transportation and vibration environment in lifelong period, consequently control product quality and design best products. It is widely applied to national defense, aviation, aerospace, communications, electronics, automotive, home appliance, etc.
Features
1. Light armature, high stiffness, 4000 HZ frequency.
2. Computer connecting line control, immediately store materials.
3. Display controlling chart.
4. Low resistance and high performance design, high efficiency, low cost.
5. High reliability, low fault.
| Electrodynamics Type Vibration Test Machine | |||
| Model | ES-3 | ES-6 | ES-10 |
| Rate sine force(N) | 2940 | 5880 | 9800 |
| Radom force(N) | 2940 | 5880 | 9800 |
| Shock force(bmx) | 5880 | 11760 | 19600 |
| Frequency(Hz) | 5-3500 | 5-3000 | 5-3000 |
| Max acceleration(m/s2)) | 980 | 980 | 1000 |
| Tated sppeed(m/s) | 1.6 | 1.5 | 2.0 |
| Max.displacement(MMp-p) | 25 | 25 | 25 |
| Max load(kg) | 120 | 200 | 120 |
| Comsumption power(KVA) | 7.5 | 17 | 22 |

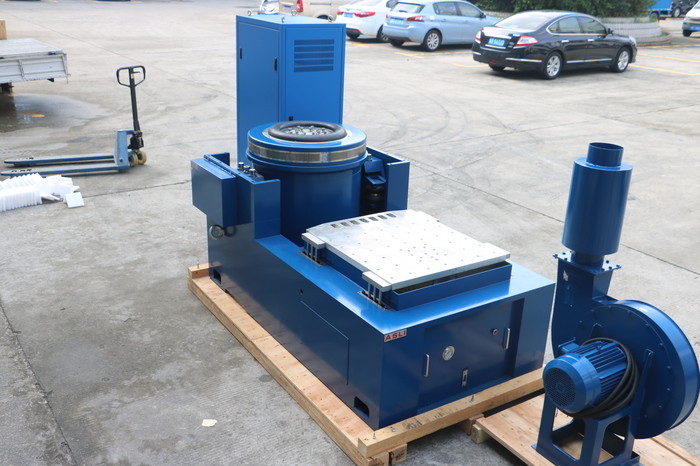

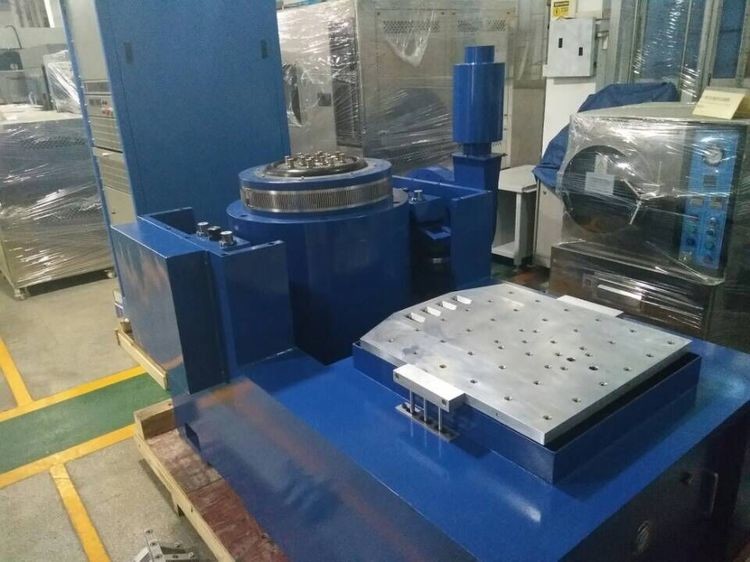

Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 |
5-1000 5-1200 5-2000 |
27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 |
5-800 5-1000 5-1500 |
36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800× 800×45 |
5-1000 5-1500 5-2000 |
57.7 76.9 86.5 |
| LT 1010 | 1000× 1000×30 1000× 1000×40 1000× 1000×50 |
5-1000 5-1300 5-1500 |
89.1 118.8 147 |
| LT 1212 | 1200× 1200×30 1200× 1200×40 1200× 1200×50 |
5-800 5-1100 5-1400 |
126 168 210 |
If you need more information about Electrodynamics High Frequency Vibration Shaker for IEC 62620 Li-ion Battery Vibration testing, please don't hesitate to send your inquiries.
