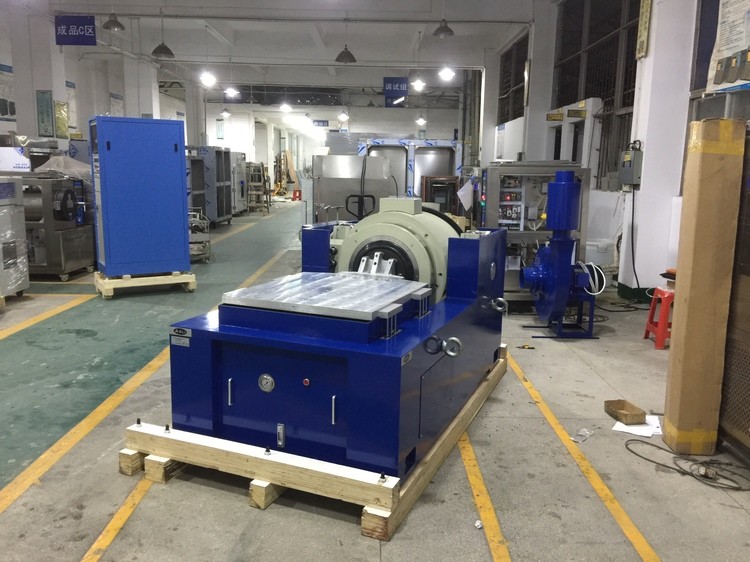

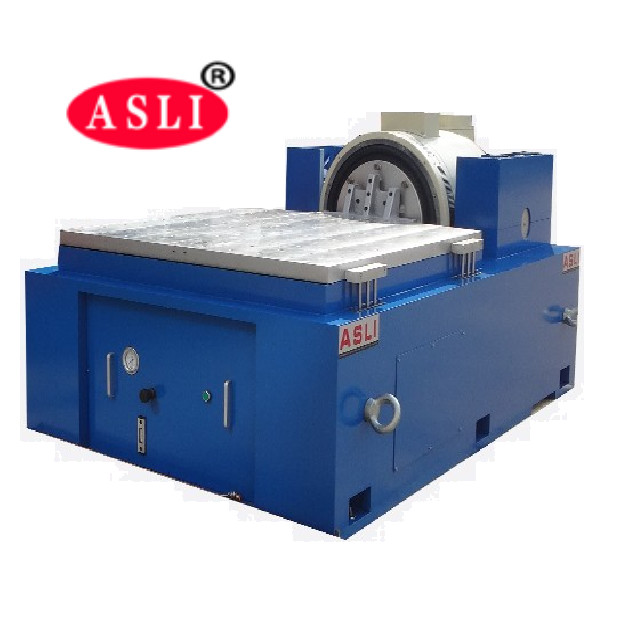

RTCA DO-160 Standard Electrodynamic Vibration Shaker for Automotive Parts
High Frequency Vibration Test Stand ES-30.pdf
What is vibration testing?
vibration test is simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.

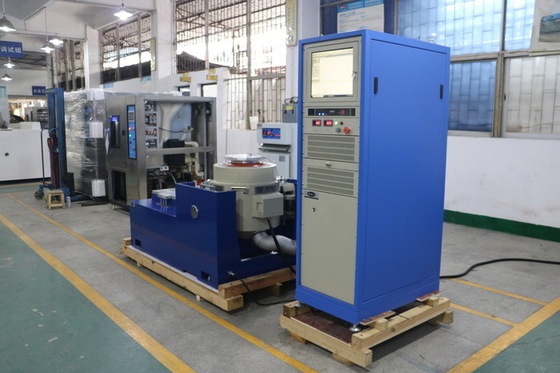

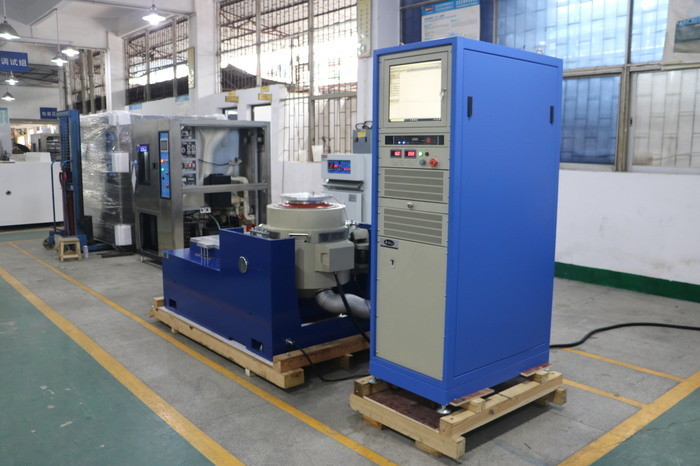

A complete set of vibration testing system is composed of shaker, power and vibration measuring control system, in accordance with relevant national and international standards(such as: MIL-STD,DIN,ISO,ASTM,IEC,ISTA,GB,GJB,JIB,BS, etc.)to provide technical support for establishing product quality inspection.
Technical Parameters of Vertical Expander
Technical Parameters of Horizontal Expander:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
RTCA DO-160 Standard Electrodynamic Vibration Shaker for Automotive Parts
