MIL-STD-810 Reasonable Used High Frequency Electrodynamics Type Vibration Tester
How to evaluate various industrial products by applying vibration load?

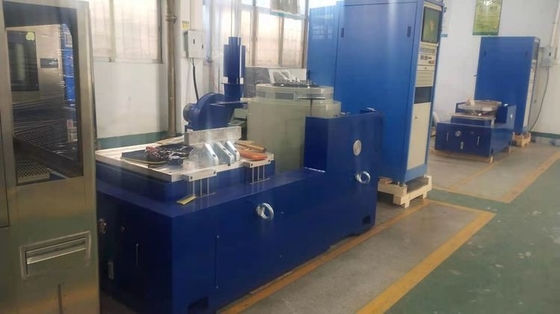

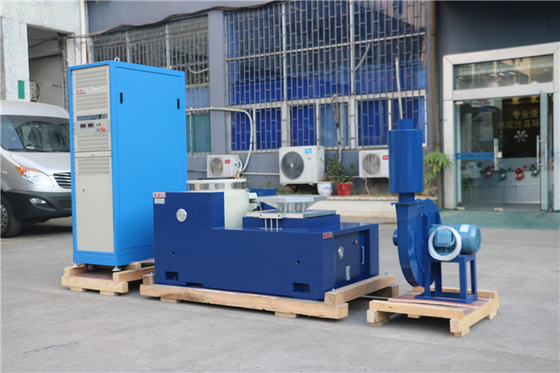

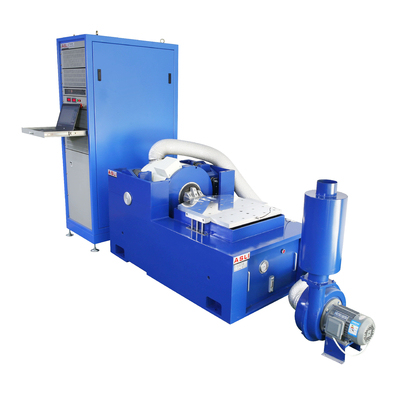

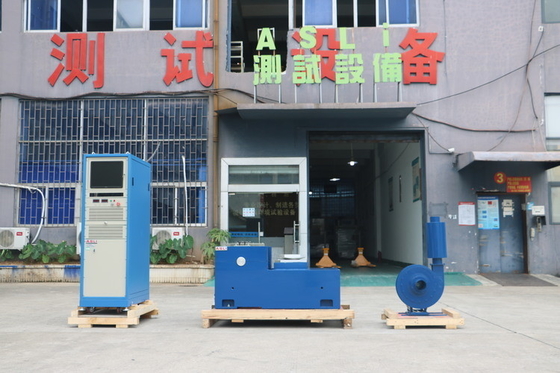

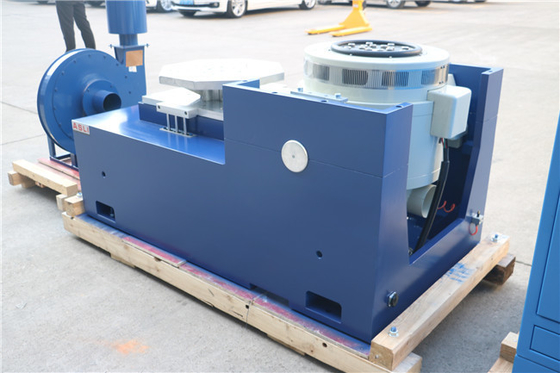

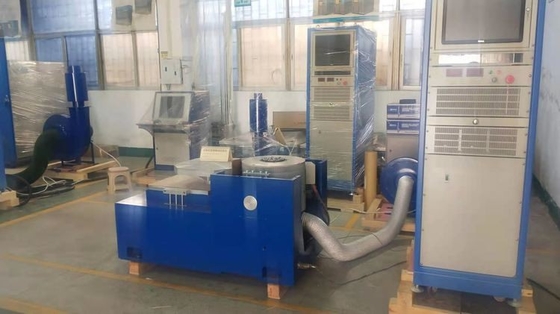

It can evaluate various industrial products by applying vibration load. EMIC Electrodynamic vibration test system for evaluating industrial products against vibrations. This system consists of a vibration generator, a power amplifier, and a vibration control system.
Download document for storage -- click here ----→vibration test chamber ES-6.pdf
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console
2. To make it convenient for operation; original refrigerating compressor unit and its main accessories imported from abroad
3. Imported LCD color touch screen controller capable of automobile control of temperature humidity programs;
4. With R232 Telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
reliability test equipment , shock vibration
| System Specification | |||
| System Model: | ES- 6 | ||
| Frequency Range: | 3~3500 | ||
| Rated Force | Sine N | 6000 | |
| Random N | 12000 | ||
| Shock N | 12000 | ||
| Maximum Acc. | sine (m/s2) | 1000 | |
| Random (m/s2 rms) | 1000 | ||
| Shock(m/s2) | 2000 | ||
| Maximum Vel. | sine (m/s2) | 1.6 | |
| Shock(m/s2) | 1.6 | ||
| Maximum Disp. | Maximum Travel mm (p-p) |
51 | |
| Moving Coil | 6.5kgs | ||
| Dimension of moving coil | Dia 230mm | ||
| Max Load: | 180kgs | ||
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
Please don't hesitate to send your inquiries, so that we can send more information to you
