What is vibration testing?
In the environmental laboratory, vibration testing is per· formed as part of a company's quality assurance pro- gramme together with for example temperature and hu- midity tests to ensure product reliability.
Vibration Test Systems are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the distribution or in-use environment.
Download document for storage -- click here ----→vibration temperature test machine THV-Volume.pdf
|
Name
|
Electrodynamic Vibration Systems -Environmental Chamber
|
|
Model
|
THV-408(A~F)
|
THV-1000(A~F)
|
THV-1500(A~F)
|
|
Internal Dimension WxHxD(mm)
|
600x850x800
|
1000x1000x1000
|
1500x1500x1500
|
|
External dimension WxHxD (mm)
|
850x1950x2100
|
1300x2200x2400
|
1800x2400x3000
|
|
Temperature Range
|
Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC)
High temperature:100ºC(150ºC)
|
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
|
|
Control Accuracy of temperature and humidity
|
±0.5ºC; ±2.5% R.H.
|
|
Temperature Rising / Falling Velocity
|
Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.1~1.2ºC/min;
(Falling velocity Min.1.5ºC/min is optional)
|
|
Protection Devices
|
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
|
|
Vibration Test Equipment
|
Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference
|

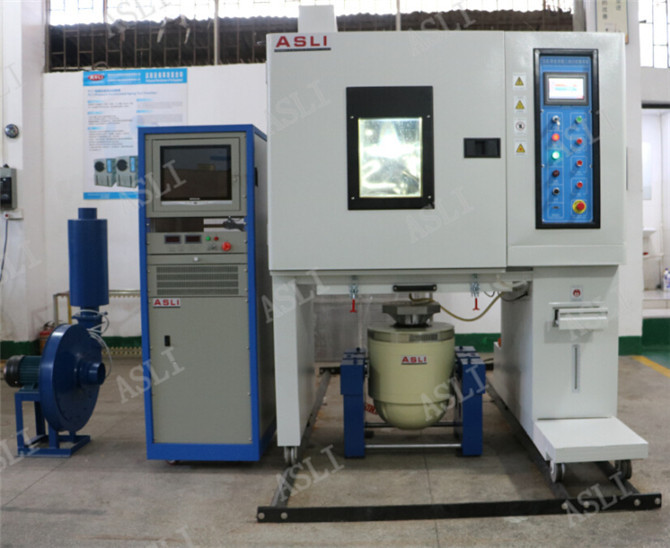

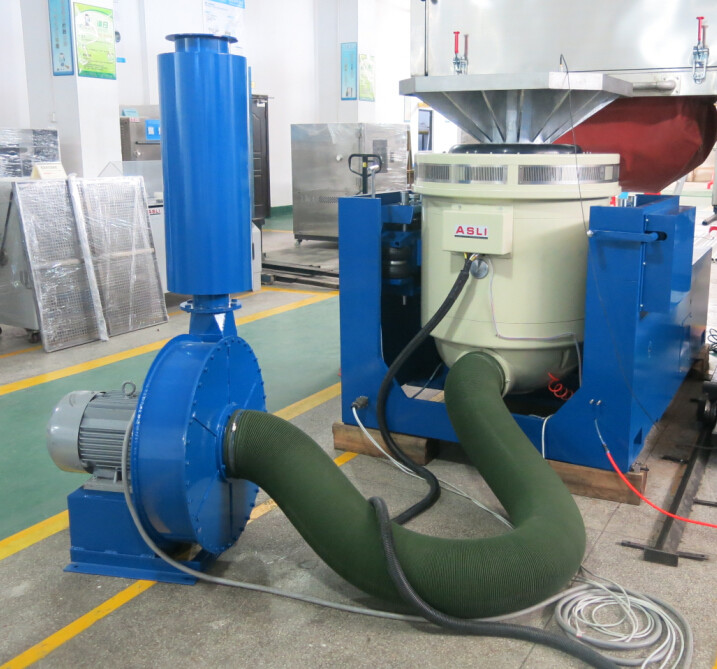

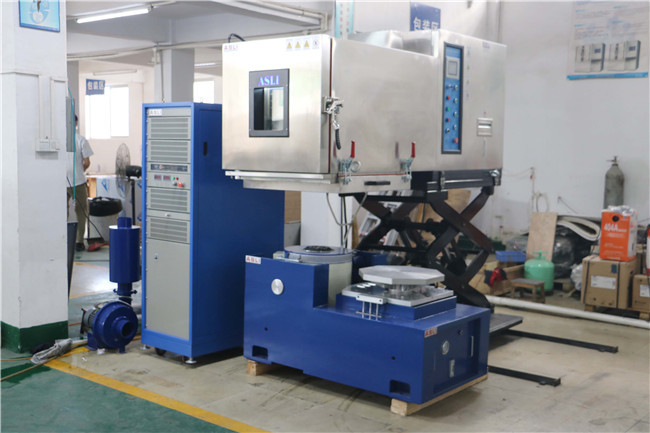

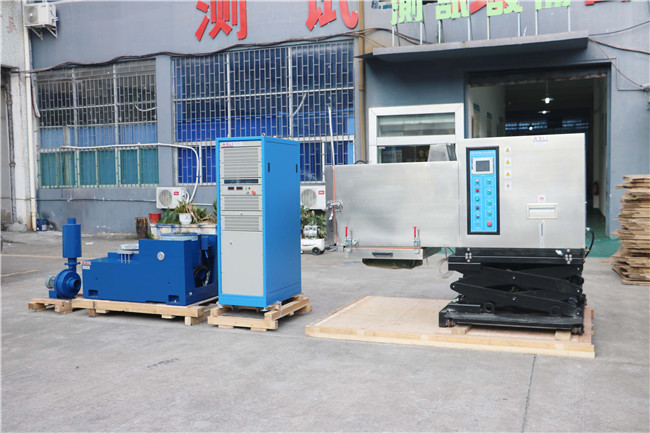

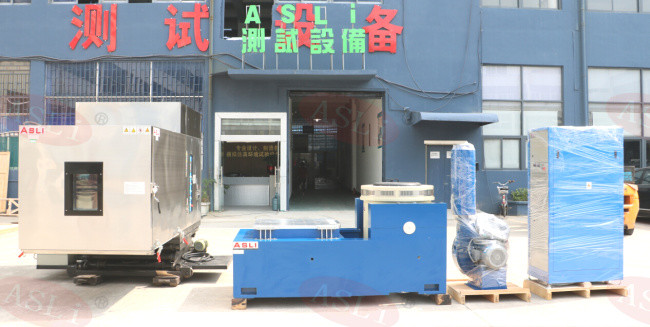

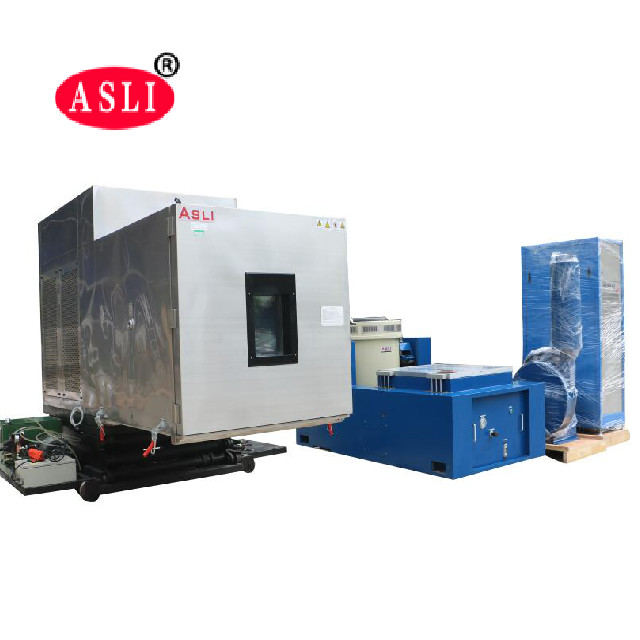

Detailed Electrodynamic Vibration Systems -Environmental Chamber Images
Temperature Humidity Vibration Combined Lab Tester Environmental Vibration Chamber Usage:
Three integrated temperature and humidity testing machine vibration known as : three integrated chamber , temperature, humidity, vibration three comprehensive test chamber, temperature / humidity / vibration three integrated environmental test systems. ASLI is Taiwan's three integrated temperature and humidity vibration test equipment brand. Vibration temperature and humidity chamber for aerospace products, information,electronic instrumentation, materials, electrical and electronic products,a variety of electronic vitality in temperature, humidity , vibration, environmental Next ,examine its various performance indicators .
technical parameters:
1. Exciting force : 3000N~100KN
2. Frequency range : 5Hz ~ 4000Hz Do fixed-frequency , round sweep , sine , random waves.
3. Sweep mode: linear , logarithmic , positive and negative sweep, fixed frequency .
4. Sweep Views: 1-32767 times. [sales(at)aslitesting.com]
5. Sweep time: fixed frequency / single sweep of 1-3600min, and ready to display a variety of sweeping curves.
6. Maximum acceleration : 1000m/s2 (100G, no load )
7. Maximum speed : 1.8m / s
8. Maximum Displacement : 100mmp-p (. Unloaded ) double peak .
9. effective mass vibration components :
10. Maximum load :
Cooling System
1. refrigerator temperature and humidity chamber vibration using original French " Taikang" closed compressor .
2. units or refrigeration system uses a binary type cryogenic loop system design.
3. United States, " Ai high" dry filter , Taiwan's " second best " oil separator, Italy " Castel properly " solenoid valve
4. Multi -wing powerful air circulation blower , to avoid any dead ends , make the test area evenly distributed temperature and humidity .
5. air duct return air circulating wind design wind pressure meet testing standards , and can open the door the moment the temperature and humidity stabilization time soon .
6. heating, cooling , humidification system is completely independent can improve efficiency and reduce testing costs , increase life and reduce the failure rate.
Features:
1. test chamber and cooling system as a whole modular structure, compact appearance , the console set separately for easy operation.
2. refrigeration compressors and key parts are imported .
3. Imported LCD color LCD touch screen controller,temperature and humidity controlled automatically .
4. The stand-alone system with vibration control system , temperature and humidity control systems ; respectively on the high temperature , low temperature, constant temperature Humidity, vibration tests for individual tests or composite can .
5. The mobile track design , can easily operate complex test or individual function tests .
6. R232 is equipped with communication interface
For more Temperature Humidity Vibration Combined Lab Tester Environmental Vibration Chamber welcome to contact
