Name: IEC 62133 Air Cooling Vibration Test System Dynamic Shaker Table For Battery Package Testing
Brand: ASLi (China) Test Equipment Co., Ltd
SKU: ES-30
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Vibration Force: 30000N

Vibration Direction: Vertical +horizontal Vibration

Cooling Method: Air Cooling

Application: Battery Package

Meet Standard: IEC 62133

Table Size: 1000*1000

Highlight:

IEC 62133 Electromagnetic Vibration Table

30000N Electromagnetic Vibration Table

IEC 62133 Vibration Test Table

Basic Infomation

Place of Origin: CHINA

Brand Name: ASLI

Certification: CE, ISO,SGS, BV

Model Number: ES-30

Payment & Shipping Terms

Packaging Details: export wooden case

Delivery Time: 60work days after deposit

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100 sets per quarter

Gallery

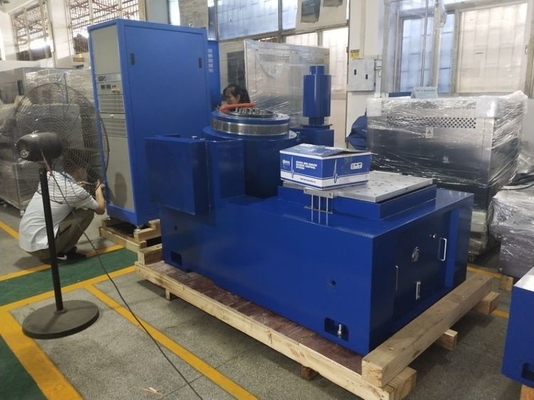

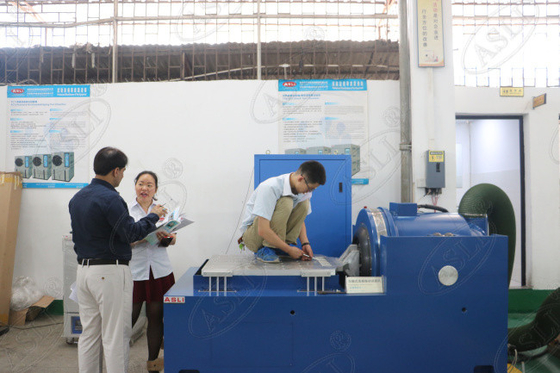

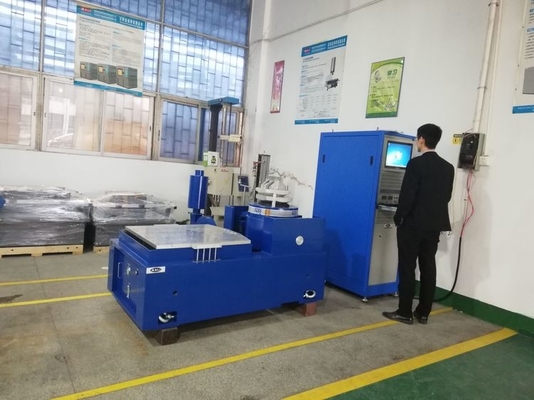

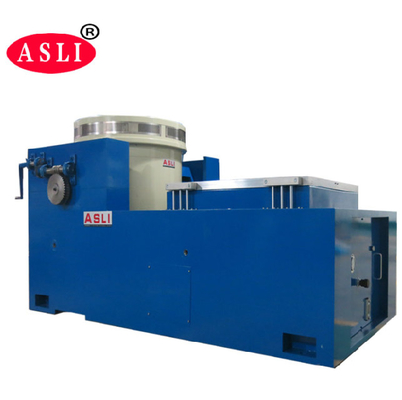

IEC 62133 Air Cooling Vibration Test System Dynamic Shaker Table For Battery Package Testing

Product Description

IEC 62133 Air Cooling Vibration Test System Dynamic Shaker Table For Battery Package Testing

Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.

			Shaker Techanical Parameters

			Sine force (peak)
			30kN

			Shock force (peak)
			60 kN

			3Frequency range
			5~2800 Hz

			Displacement (continuous)
			51 mm

			Max. Velocity
			1.8 m/s

			Max. Acceleration
			100 G

			Armature Diameter
			445 mm

			1st order resonant frequency
			2,400 Hz

			Allowable eccentric moment
			>500 Nxm

			Armature weight
			40 kg

			HE/ST screw dimension
			M10 (metric)

			Axial vibration isolation frequency
			<3 Hz

			Max. Payload
			500 kg

			Magnetic flux leakage
			≤1 mT

			Dimensions (L×W×H, unpacked)
			1,330x860x1,250 mm

			Weight (unpacked)
			2,500 kg

			Installation
			Rubber mat (anchor bolts required)

Characteristics
Ultra mute work; The machine base uses the high quality material, installs conveniently, the operation is smooth, does not need to install the The, the control circuit digitization control and the display frequency, the PID adjusts the function, causes the equipment work to be more stable, reliable, sweeps the frequency and the fixed frequency operation way, adapts to the different profession test request To solve the interference of the strong electromagnetic field to the control circuit, and to increase the working time set, so that the test product reaches the accurate test time.

Slip Table
Table Size	1000*1000mm
Material	Aluminum alloy
Thickness	40mm
Max. Work Frequency	Sine 1000 Hz, Random 1200 Hz

Expander
Expander Size	1000*1000mm
Material	Aluminum alloy
Max. Work Frequency	Sine 350 Hz, Random 1000Hz

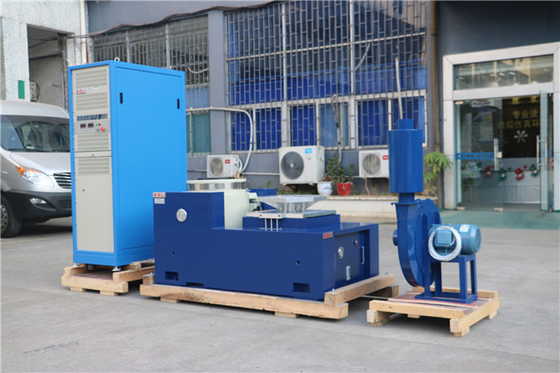

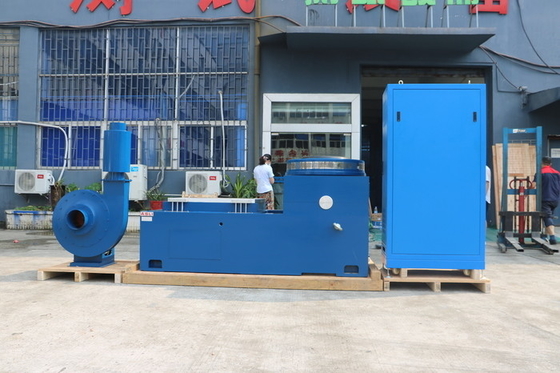

IEC 62133 Air Cooling Vibration Test System Dynamic Shaker Table For Battery Package Testing 3

IEC 62133 Air Cooling Vibration Test System Dynamic Shaker Table For Battery Package Testing 4

IEC 62133 Air Cooling Vibration Test System Dynamic Shaker Table For Battery Package Testing 5

any doubt or needs about IEC 62133 Air cooling vibration test system dynamic shaker table for battery package testing, please send your inquiries to us.
