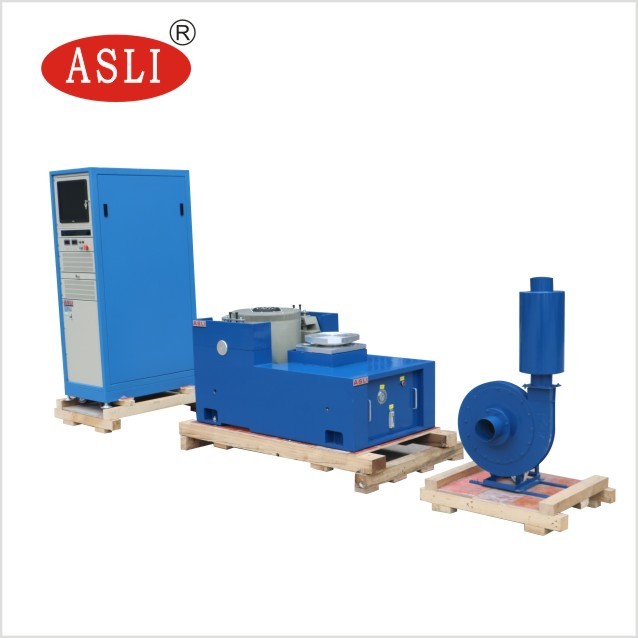

MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment/ lab vibrating table
Vibration Shaker specification
| Model | ES-3 |
| Max sine exciting force(Kg.f) | 300 Kg.f |
| Vibration body dimensions | 730*550*650 mm (L*W*H) |
| Table size(mm) | Customized |
| Frequency range(Hz) | 5~2000Hz |
| Weight of vibration body (Kg) | About 450kg |
| Moving coil diameter (mm) | 150mm |
| Max Displacement(p-p)mm | 25mm |
| Max acceleration (m/s2) | 980 m/s2 (100g) (Without load) |
| Max speed(m/s) | 1.6 m/s |
| Working environment | Temperature: 0-40℃,humidity<80%(Non-condensate) |
| Cooling type | Air cooling |
| Power supply | AC 3 phase 380V 50Hz |

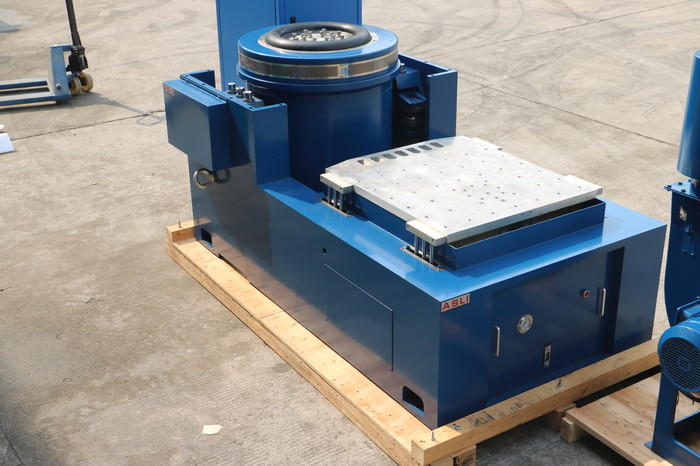

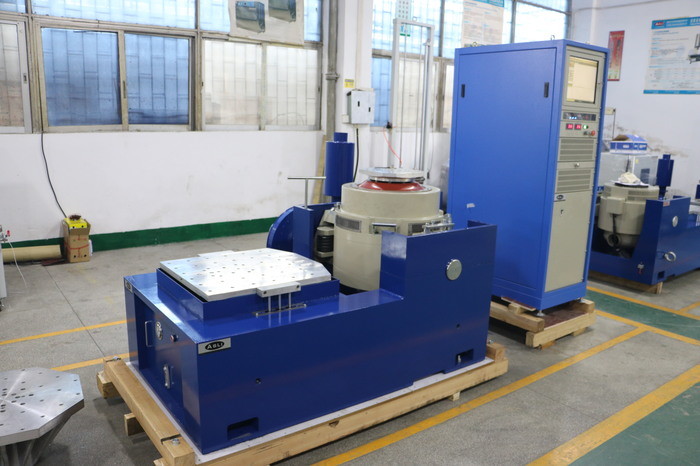

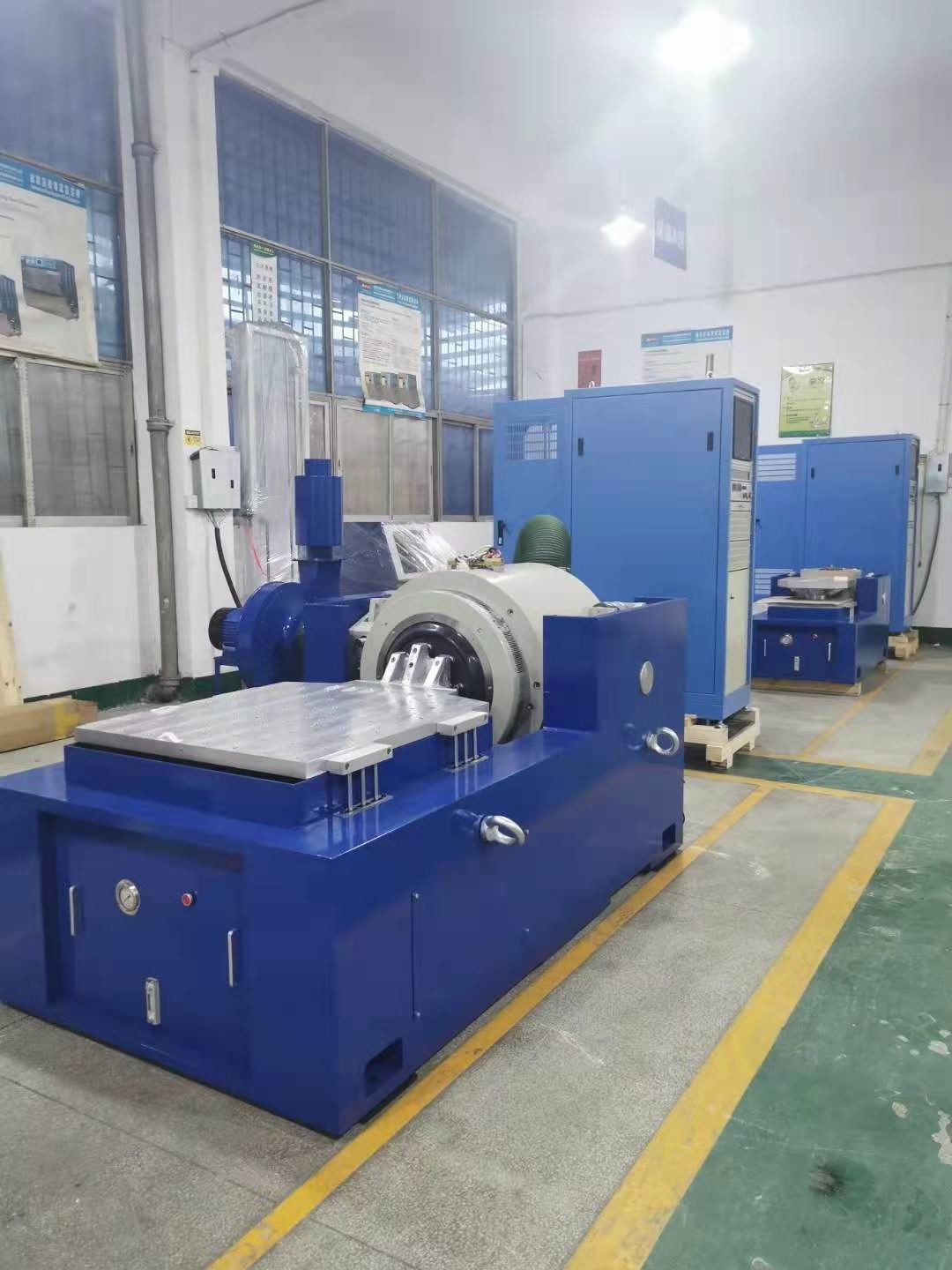

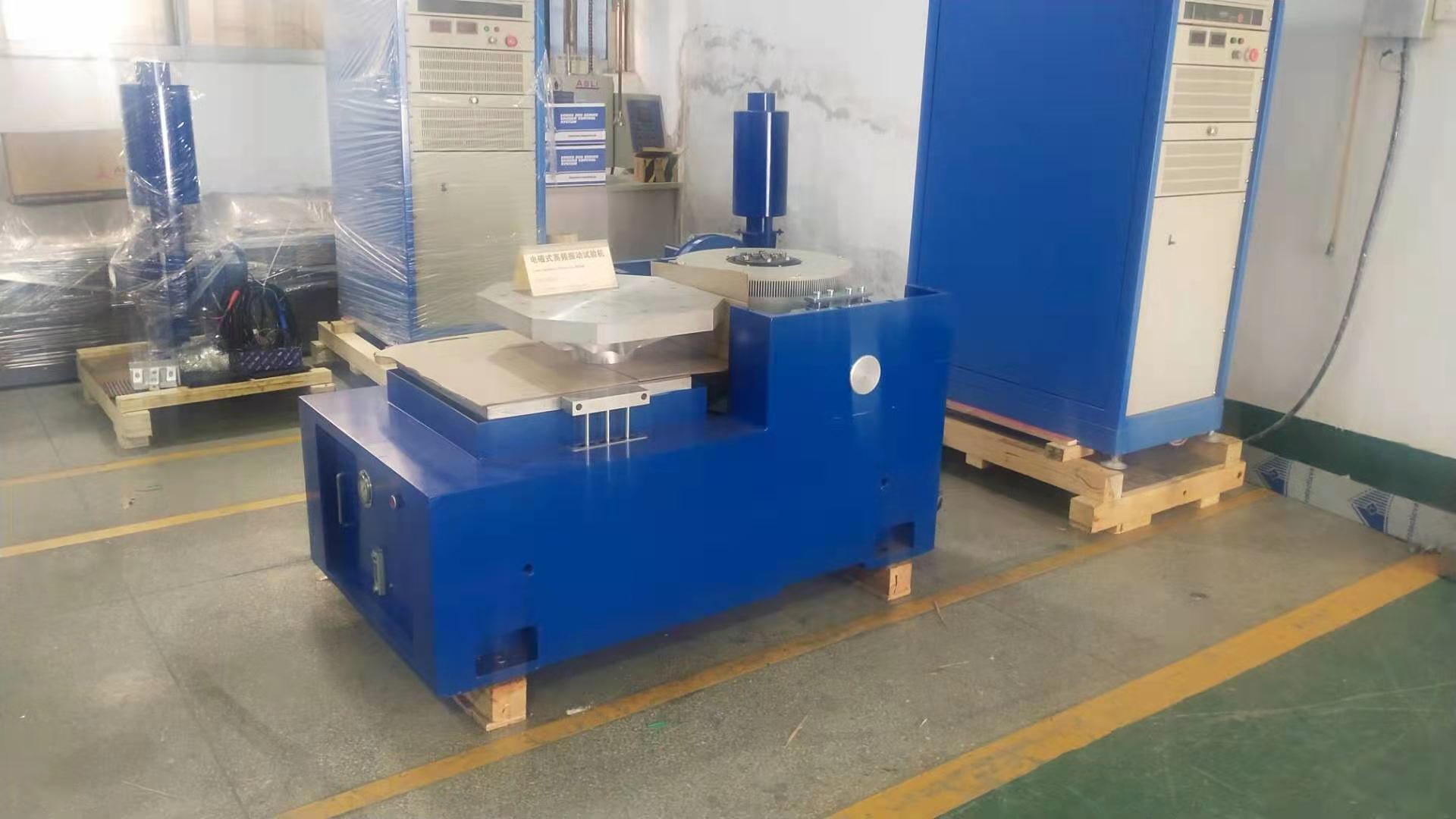

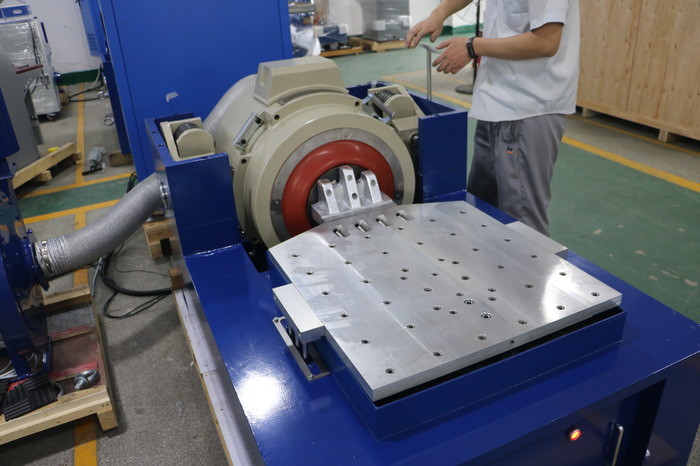

Vibration Shaker Table adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test.
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency .
2 Light armature, high stiffness, 4500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.
any doubt or needs about MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment/ lab vibrating table, please don't hesitate to send your inquiry.
