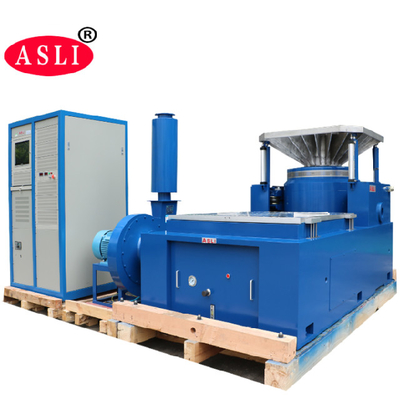

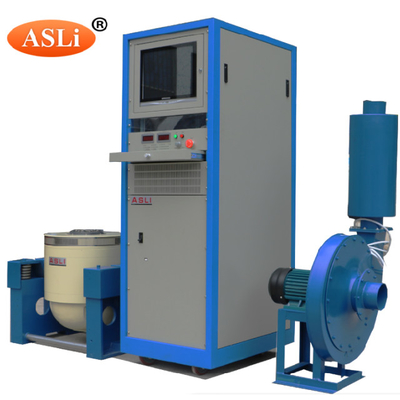

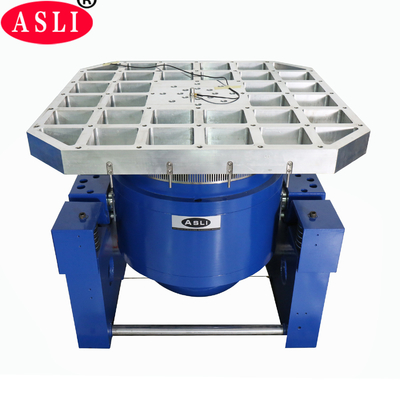

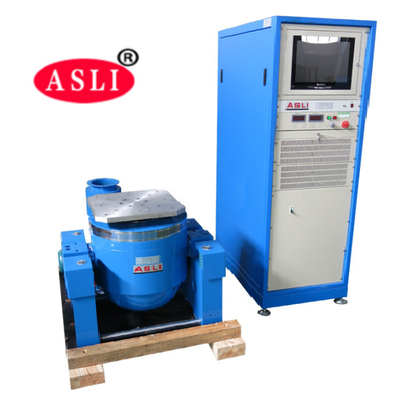

MIL STD 810 and IEC/EN/AS 60068.2.27 Electrodynamic Vibration Shaker System
Application for Electro-Dynamic Shaker price :
We are manufacturer of electrical vibration series products, adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology
and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed
by the classical (half - sine, trapezoidal, sawtooth wave) pulse and shock response spectrum test. High Frequency Vibration Tester widely used
in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications,
home appliances and other fields. --- industrial shaker vibration tester
Half sine wave shock testing of Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Technical Parameters about MIL STD 810 and IEC/EN/AS 60068.2.27 Electrodynamic Vibration Shaker System
| Model | Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Speed(m/s) | Rated Replacement (p-p)mm |
Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil(mm) |
| ES-10 | 10000 | 10000 | 3-3000 | 1.8 | 51 | 270 | 14 | Φ240 |
Vibration System( ES-10 )
1 Technical parameters with industrial electrodynamic vibration shaker :
(1) Rated Force: sine force 10000N; random force 10000N; shock force 10000N;
(2) Frequency Range: 5 Hz to 3500Hz, Fixed frequency, sweep back and forth, sine, random, shock
(3) Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
(4) Sweep-frequency Times: 1 to 32767.
(5) Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.
(6) Max. Acceleration 1000m/s 2 (non load)
(7) Max. Speed: 1.8m/s
(8) Max. Displacement:51mmp-p (non load), double peak
(9) Impact Displacement: 51mm
(10) Weight of Moving Coil: 14 kg
(11) Vibration Directions: Vertical +Horizontal vibration
(12) Vibration Wave: sine, random, shock
(13) Diameter of the Moving Coil: Φ240 mm
(14) Vibration System Dimension(mm): W1046*H660*D783mm
(15) Vibration System weight: 900kg

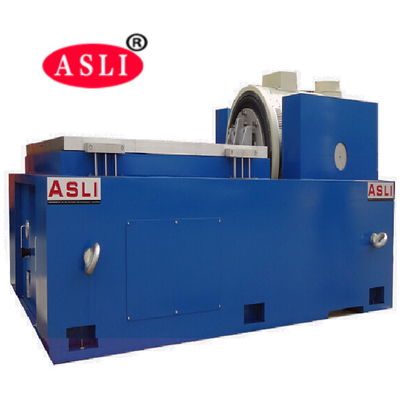

Horizontal stand features about Vibration Test Machine:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
Install Requirement with vibration tester machine:
(1) Users should prepare forklifts & shifting tools for moving the equipment as it is very heavy, also please be sure
the door is big enough to let in the equipment
(2) The operating environment of the machine should be under room temperature and with good ventilation. We strongly suggest to install air conditioner in the working area. The space distance of the machine’s
left/right/back side must be Min. 700mm, the front must be Min. 1500mm.
Package for large force electro dynamic vibration shaker system :
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
