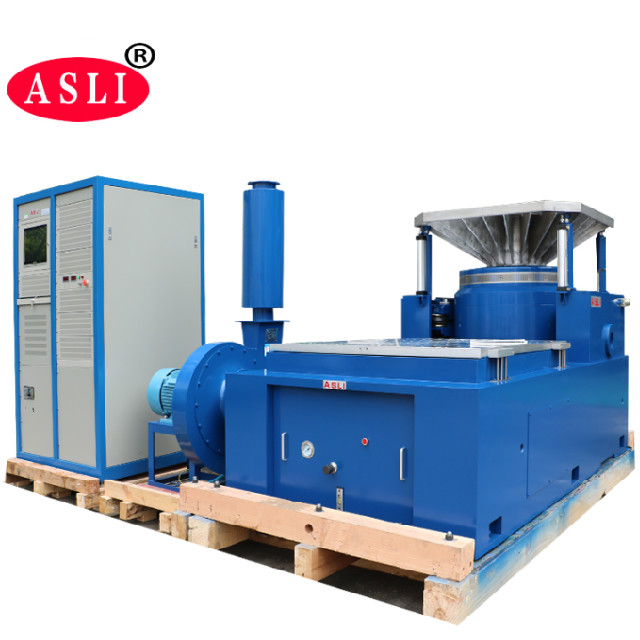

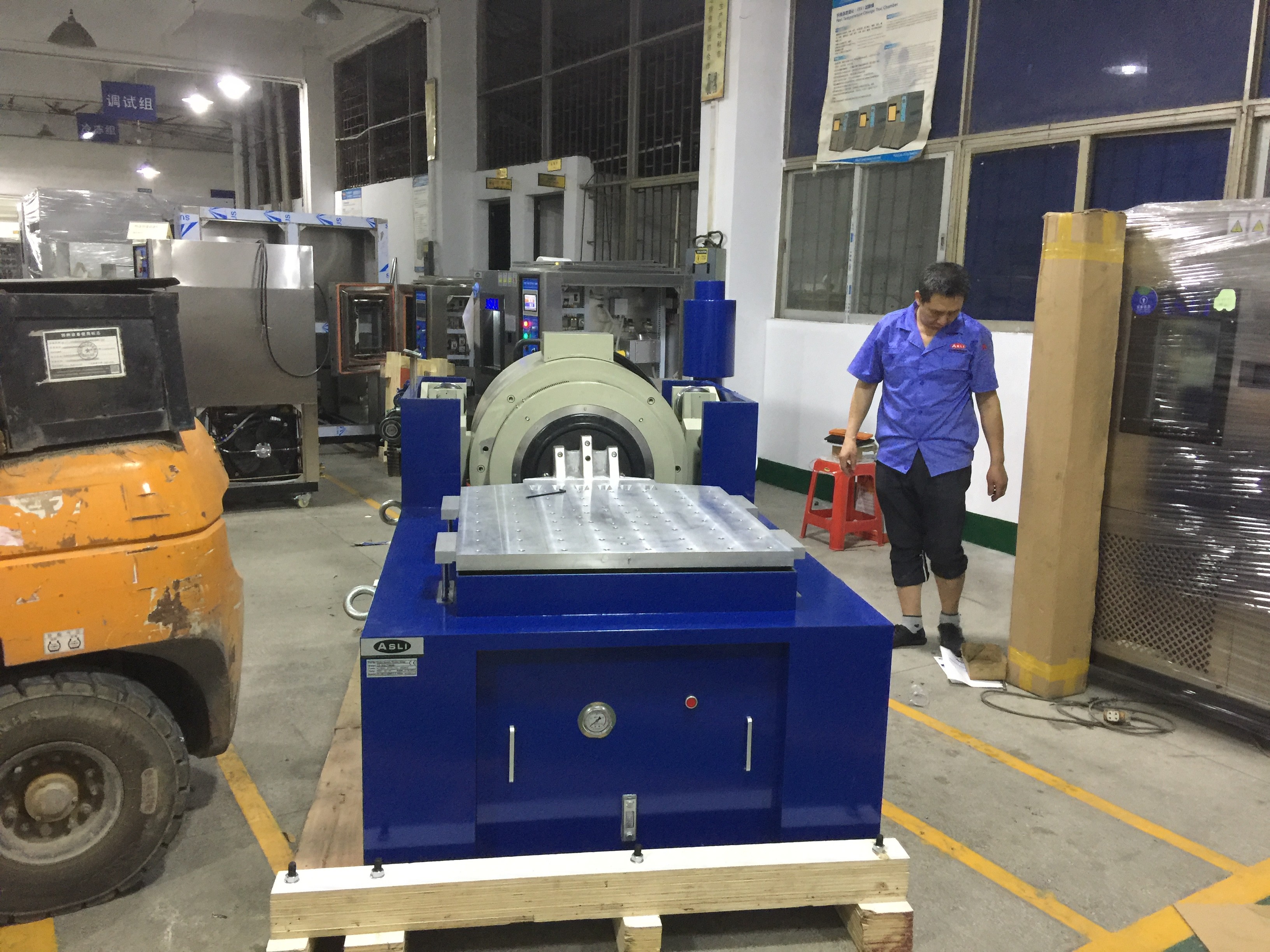

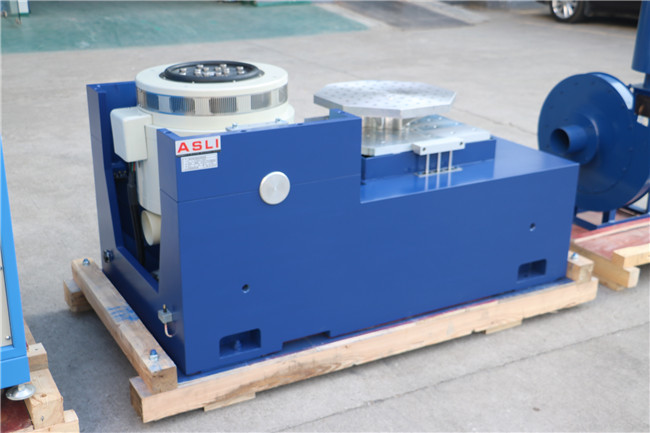

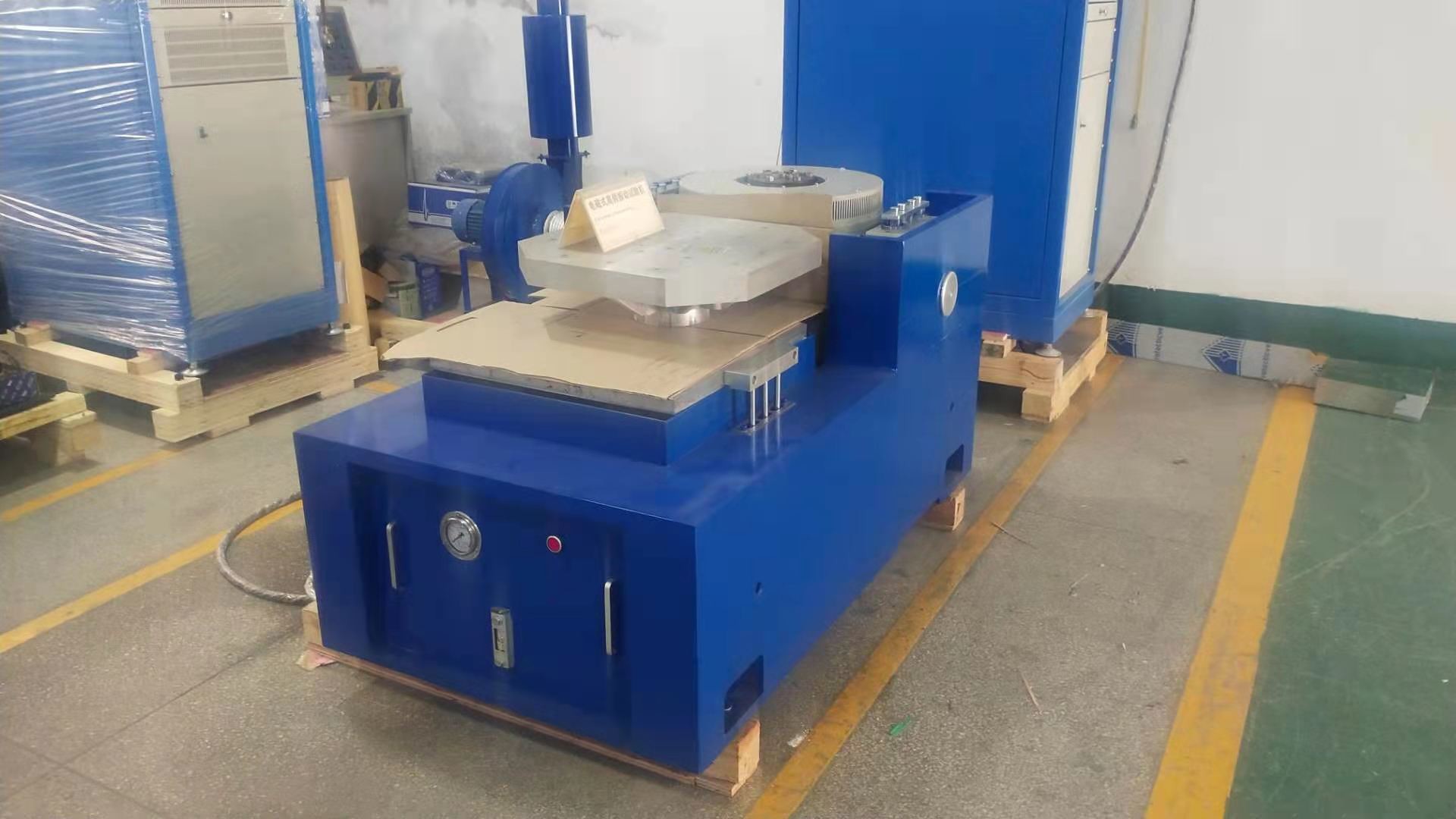

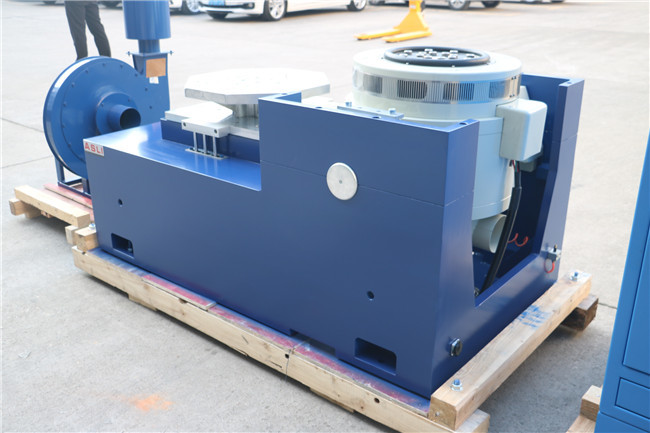

sinusoidal x y z axis high-frequency electromagnetic vibration shaker table for auto parts
What is hazardous vibration testing?
Hazardous Vibration General Vibration Laboratory Test Stand The Hazardous Vibration vibration testing of large structures and Test Stand provides for vibration of pressurized systems and explosive vast array of access platforms to the materials and vibration test articles. Massive test articles can within a thermal floors.
Download document for storage -- click here ----→vibration temperature test machine THV-Volume.pdf
* An air-cooled electro-dynamic shaker
* vibration controller and power amplifier structured into all-in-one cabinet
* achieving 2400 newton’s peak sine thrust.
* Xyz 3 axis testing
Specification
| Name | Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
