What is vibration control system?

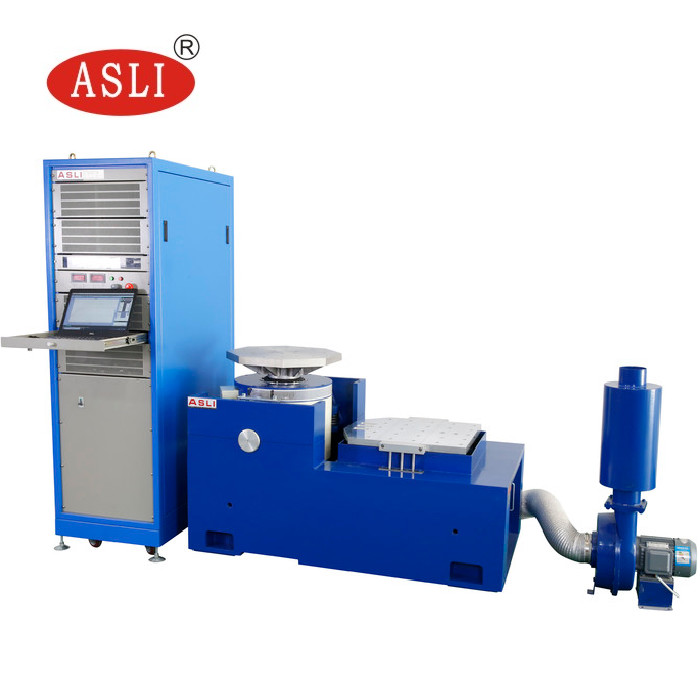

This system consists of a vibration generator, a power amplifier, and a vibration control system. It can provide a vibration test to cope with various loads such as sine vibration, random vibration, mechanical shock pulse and replication of real-time trace.
Download document for storage -- click here ----→ES-3A vibration tester.pdf
high frequency air cooling vibration test system dynamic vibration shaker table
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed (m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil (Kg) |
Dimension of Moving coil (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |

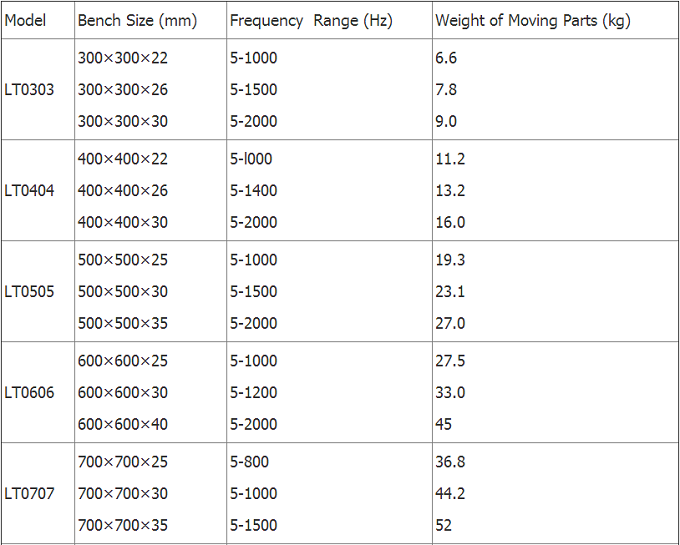

Technical parameters of horizontal expander:

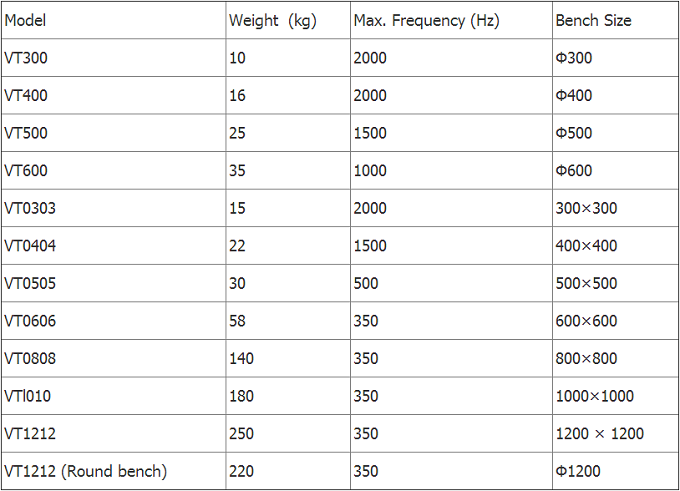

technical parameters of vertical expander:

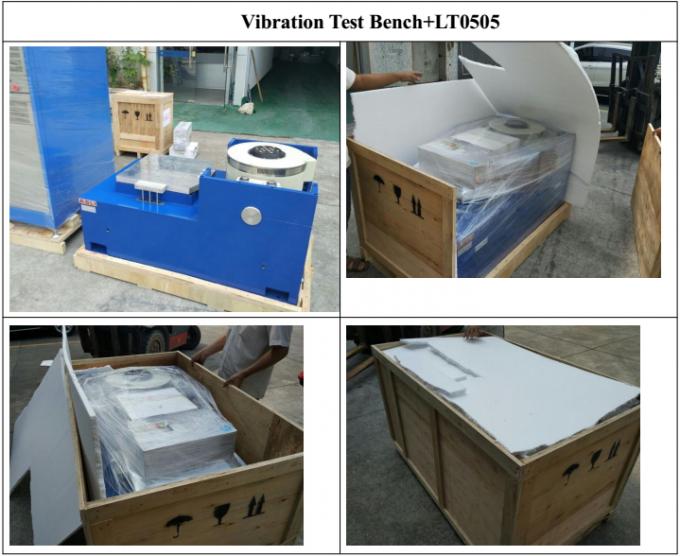

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Features
Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
Quick self-diagnosis with safety interlock, high safety reliability;
Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;

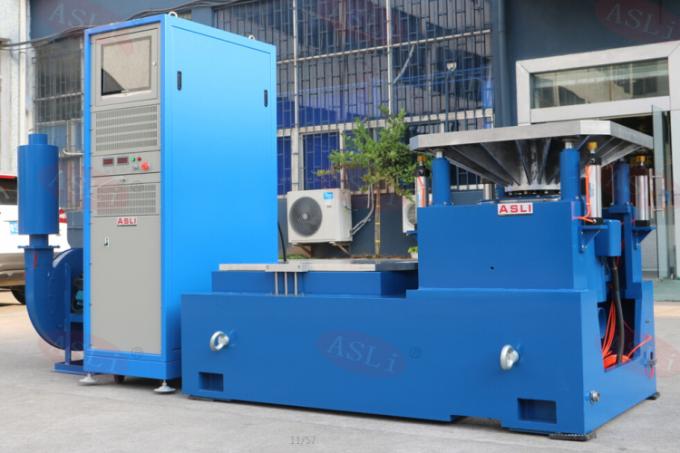

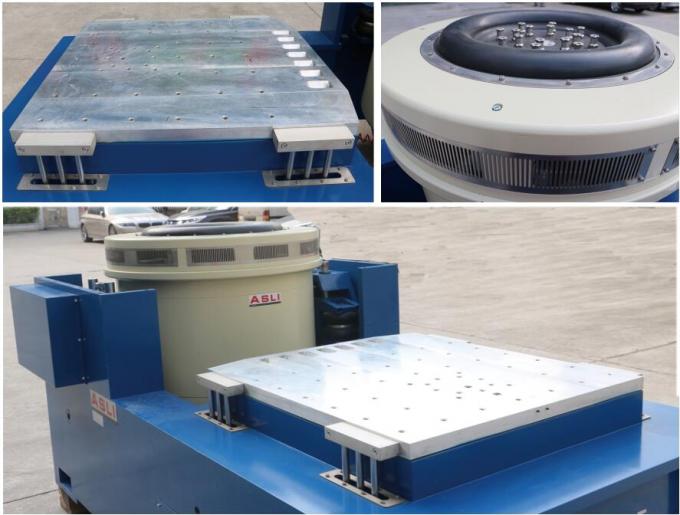

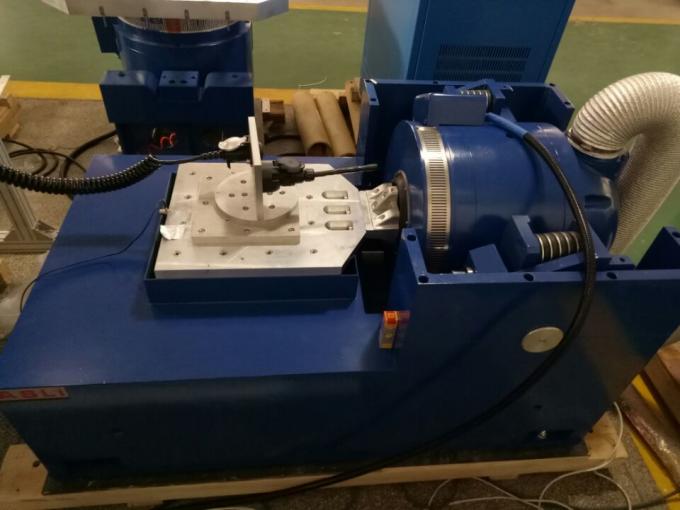

Provide horizontal and vertical expansion platform for different application;
Simple controller operation.
If you are interested in our high frequency air cooling vibration test system dynamic vibration shaker table, please don't hesitate to send your inquries to us.
