PRODUCT DESCRIPTION

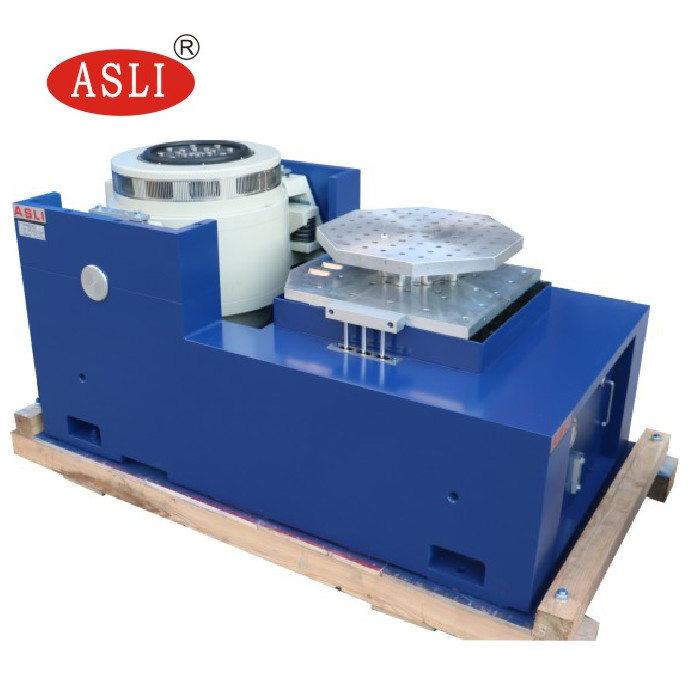

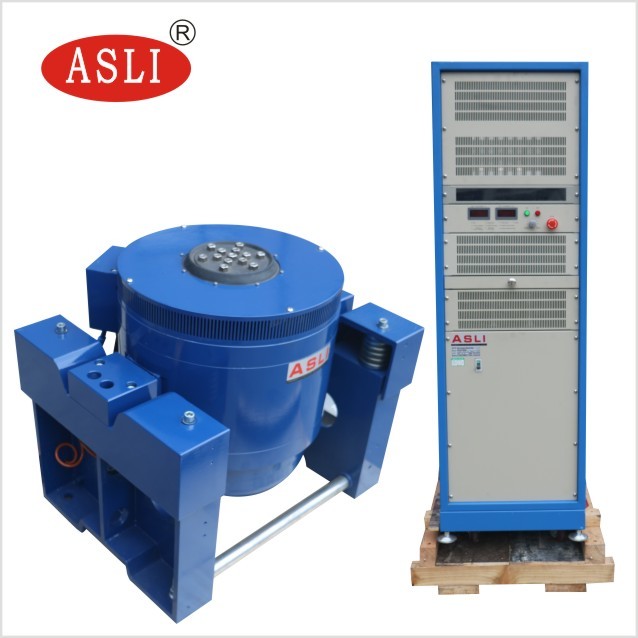

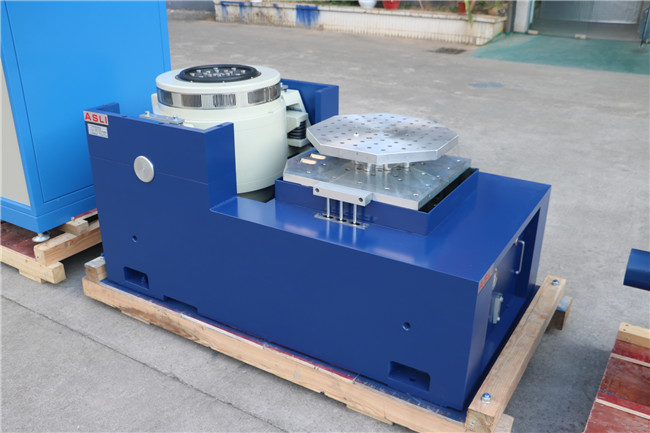

ISO 13355, ISTA 3A And ISTA 6- Amazon Electrodynamic Vibration Shaker Table provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.
TECHNICAL PARAMETERS OF ISO 13355, ISTA 3A And ISTA 6- Amazon Electrodynamic Vibration Shaker Table
| Item | Description | |
|
Force (Maximum) |
Sine | 600Kg.f peak |
| Random | 600Kg.f r.ms | |
| Shock | 600Kg.f peak | |
| Frequency Range | 5~2500 Hz | |
| Max. Displacement | (Peak to Peak) 51mm | |
| Max. Velocity | 1.8m/s | |
| Max. Acceleration | 100G (980 m/s2) without loading | |
| Vibration direction | Vertical and horizontal | |
| Armature Diameter | 200 mm | |
| Effective Armature Mass | 6kg | |

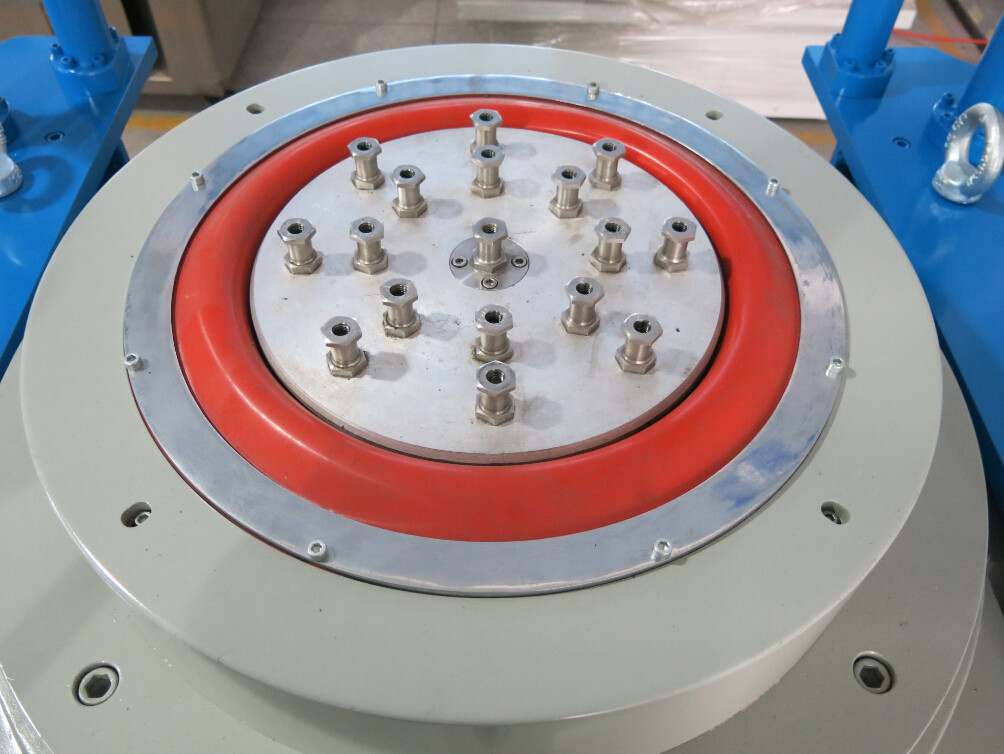

| Table screw | 17×M10 | |
| Max. payload | 300kg | |
| Magnetic Leakage | <10gauss | |
| Axial Vibration Isolation Frequency | 2.5HZ | |
| Allowable eccentric moment | >300N.m | |
| Dimension | 1200mm*790mm*840mm (Head Expander is excluded) | |
| Weight | 1600kg (Slip Table is excluded) | |
| Power supply | AC 3-phase 380V/50Hz,18 KVA | |
| Grounding resistance | ≤4Ω | |
| Air compressor | 0.4-0.6Mpa (provided by customer) | |
| Cooling method | Air cooling | |
More Vibration Force , can be customized. Warmly welcome to your inquiry. ^_^
