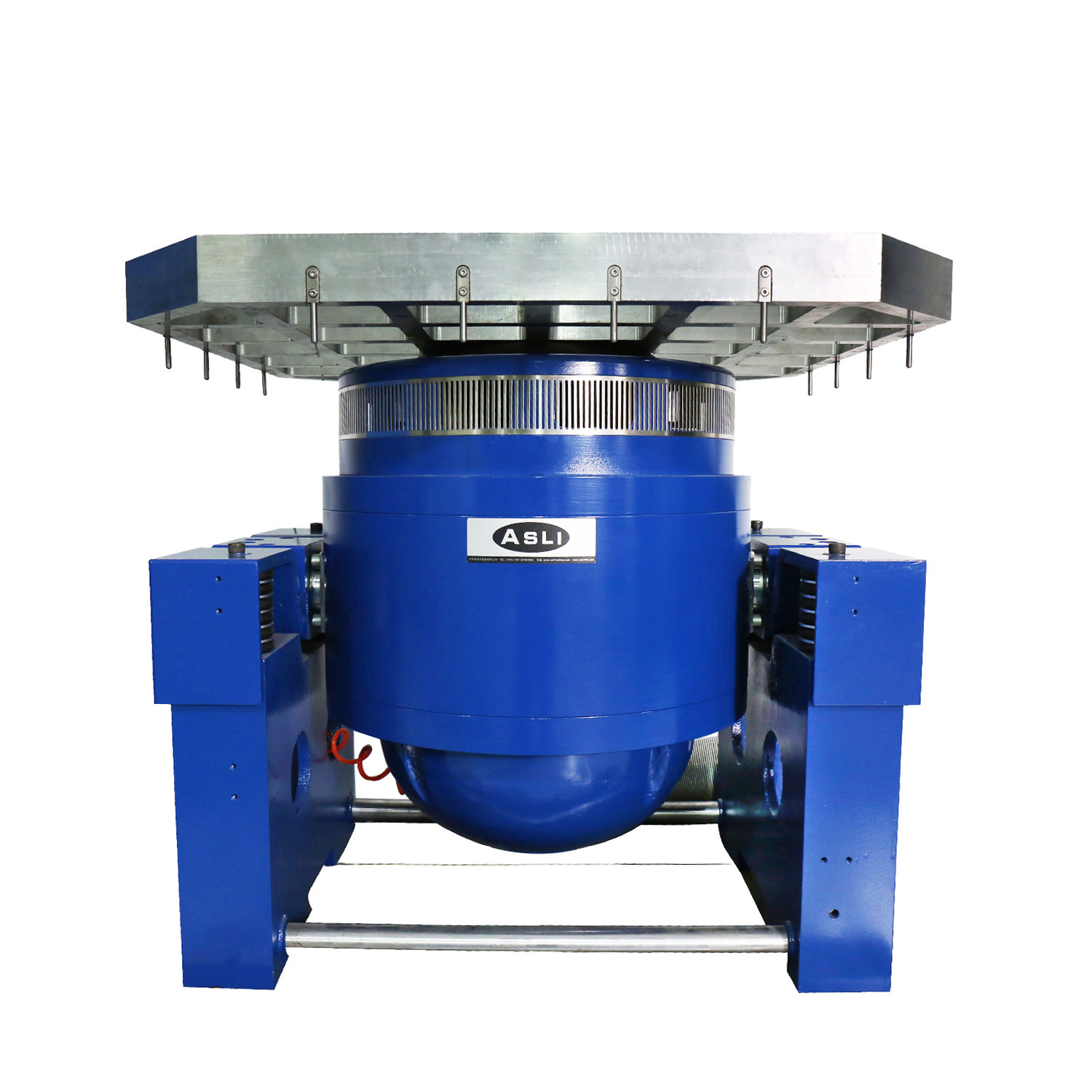

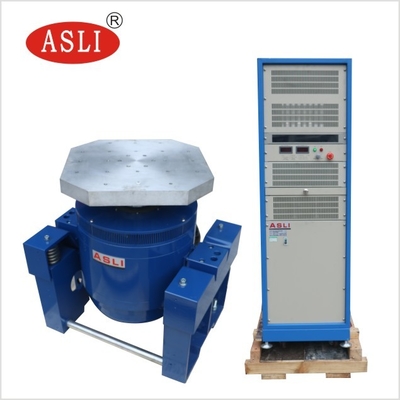

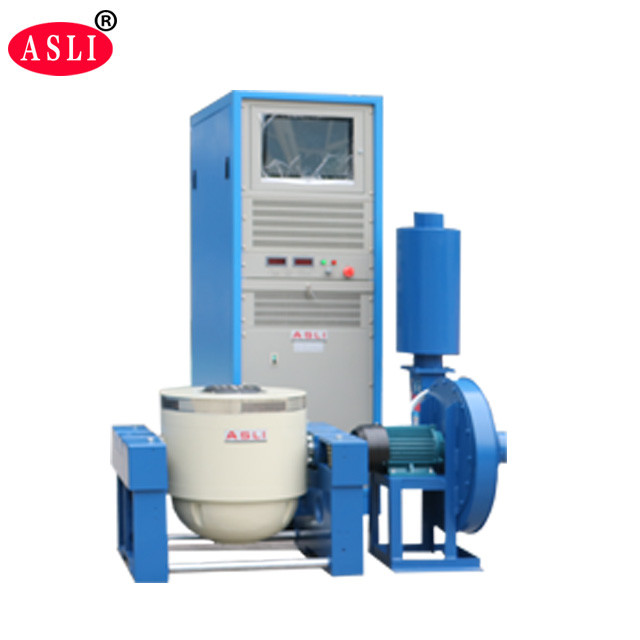

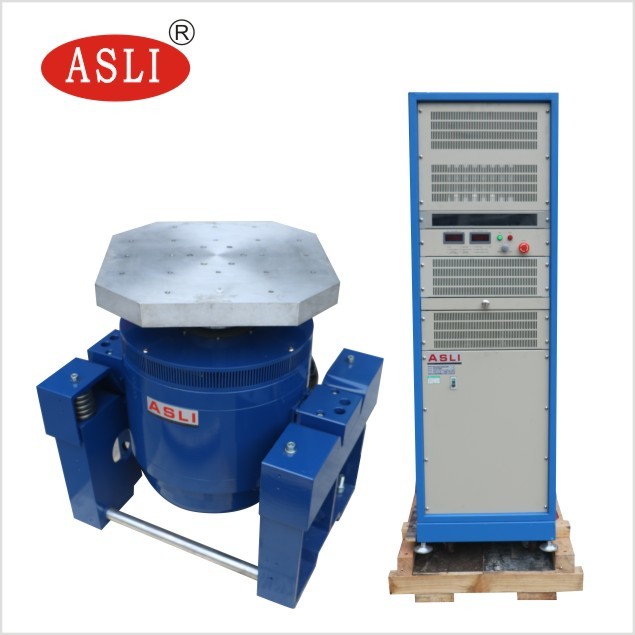

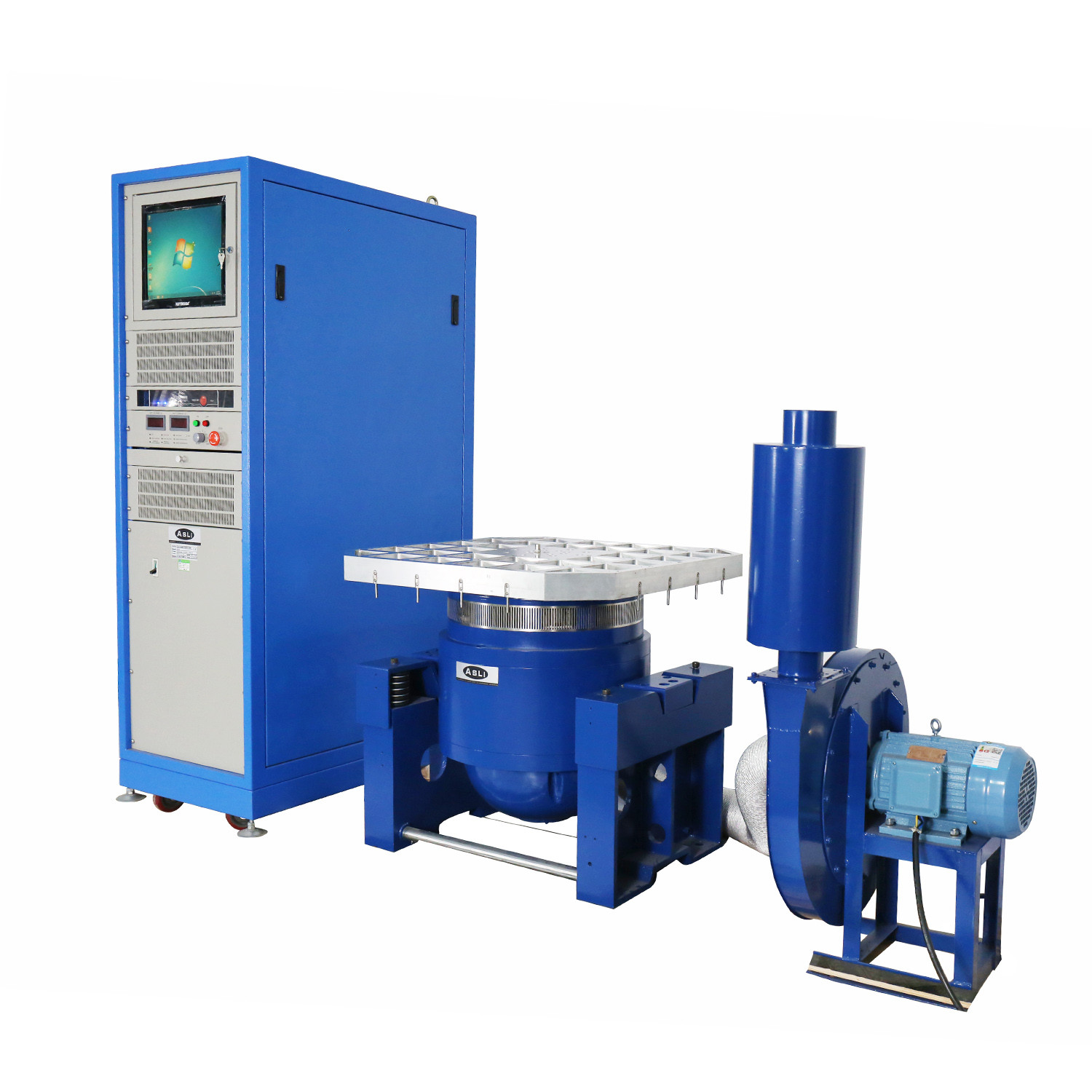

ISTA 6A Amazon Vibration Test Machine Random Vibration Testing for Packaging
STANDARD SPECIFICATIONS
| Item | Description |
| Sine Force | 5.88KN |
| Shock Force | 11.76KN |
| Frequency Range | 5~3000 Hz |
| Displacement | 51 mm |
| Max. Velocity | 2m/s |
| Max. Acceleration | 981 m/s² (without loading) |
| Armature Diameter | 200 mm |
| Permitted Load Torque | >300 N•m |
| Effective Armature Mass | 6 kg |
| Max. Load Capacity | 100kg |
| Magnetic Leakage | ≤1 mT |
| Axial Vibration Isolation Frequency | <3 Hz |
| Load attachment | 16 stainless steel M8 inserts |
| Dimension(L*W*H) | 850*665*760mm |
| Approx. weight | 990kg |
ISTA 6A Amazon Vibration Test Machine Random Vibration Testing for Packaging is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.
Specification
| Name | Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
