Name: 30000N Vibration Test Bench , UN38.3 Shake Vibration Machine
Brand: ASLi (China) Test Equipment Co., Ltd
SKU: ES-30
Price: Negotiable USD
Availability: InStock

30000N Vibration Test Bench , UN38.3 Shake Vibration Machine

MOQ

USD 20000~50000

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Sine Force: 30000N

Speed: 2.0 M/s

Displacement: 75mm

Frequency: 3~3500HZ

Loading: 500kg

Acceleration: 100g

Armature: 450mm

Brand: ASLI

Table Size: 600x600mm

Highlight:

UN38.3 vibration test bench

30000N vibration test bench

UN38.3 shake vibration machine

Basic Infomation

Place of Origin: China

Brand Name: ASLI

Certification: CE

Model Number: ES-30

Payment & Shipping Terms

Packaging Details: export standard plywood case

Delivery Time: 30-35 work days after deposit

Payment Terms: T/T

Supply Ability: 30 set per month

Gallery

30000N Vibration Test Bench , UN38.3 Shake Vibration Machine

Product Description

EN50604 IEC62133 UN38.3 Vibration Test Bench for Automobile Battery

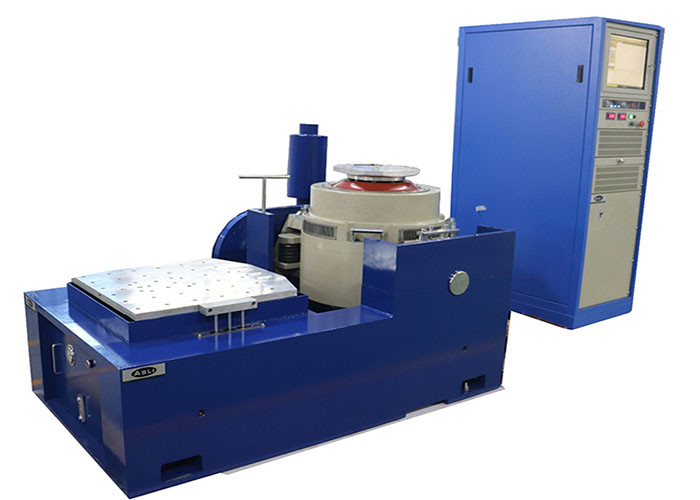

Test system composition

1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.

Vibrating Shaker Table Vibration Tester

Specification

Name	Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing
Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed(m/s)	Rated displacement (p-p)mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil (mm)
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450

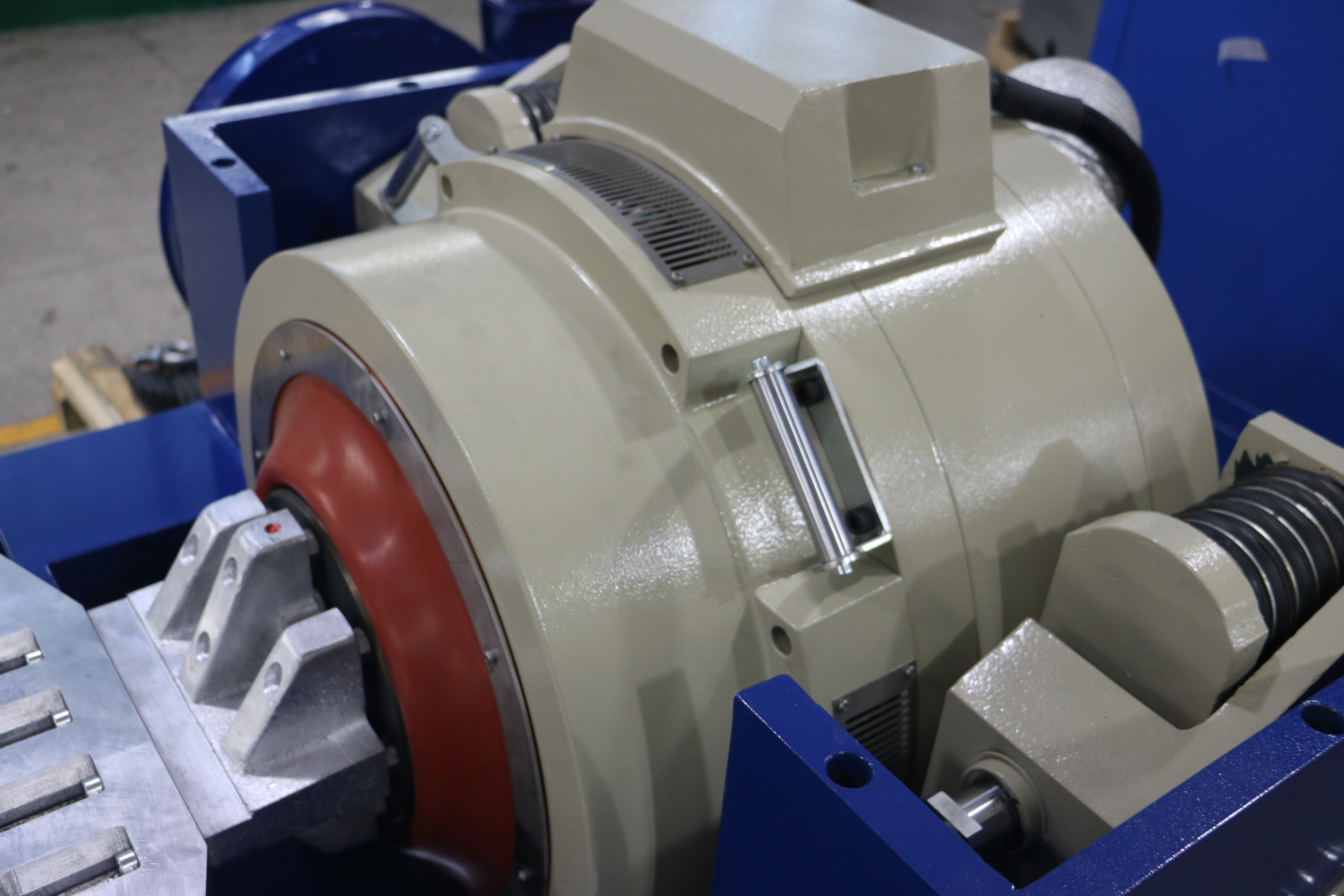

30000N Vibration Test Bench , UN38.3 Shake Vibration Machine 1

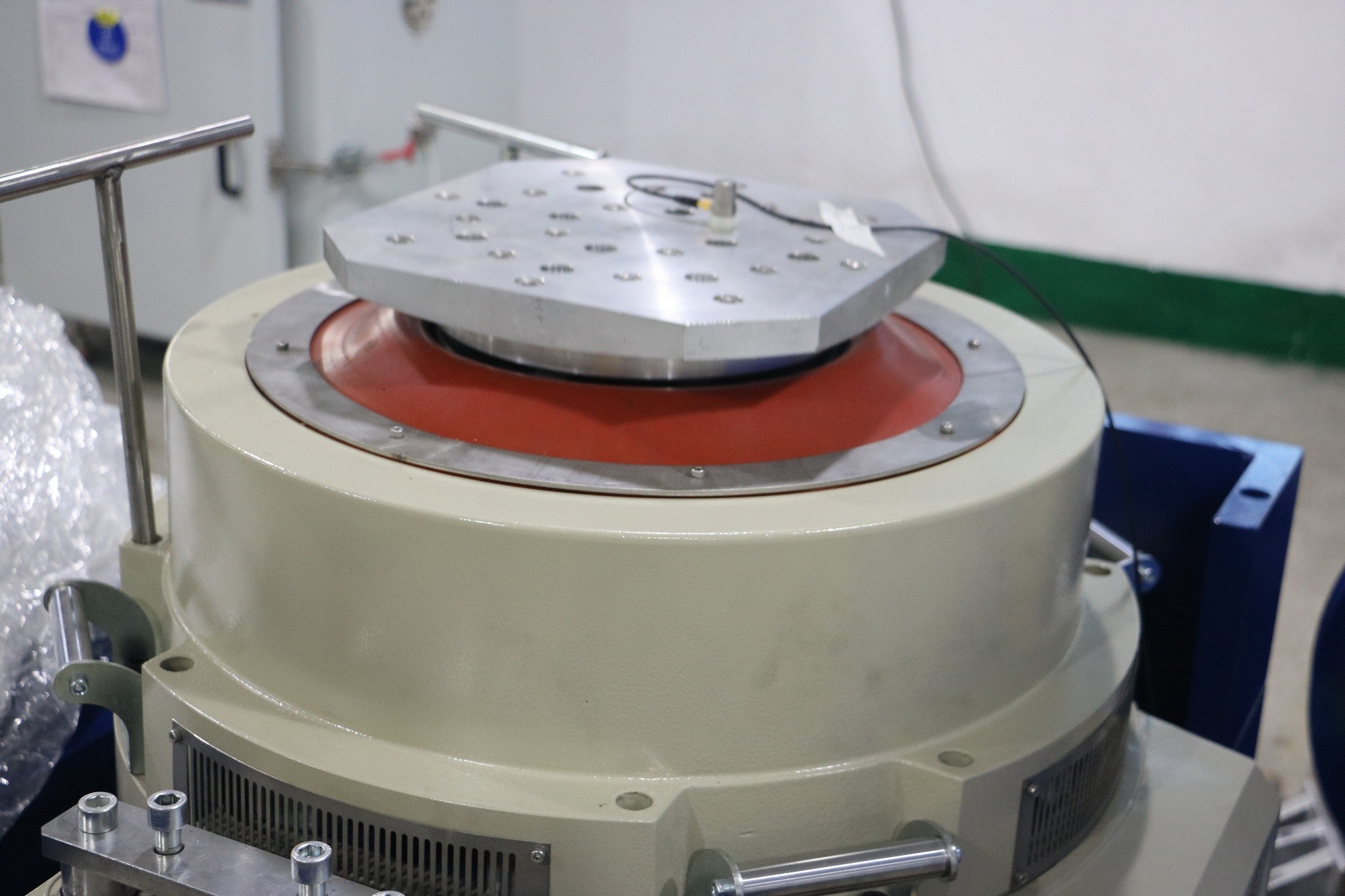

30000N Vibration Test Bench , UN38.3 Shake Vibration Machine 4

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

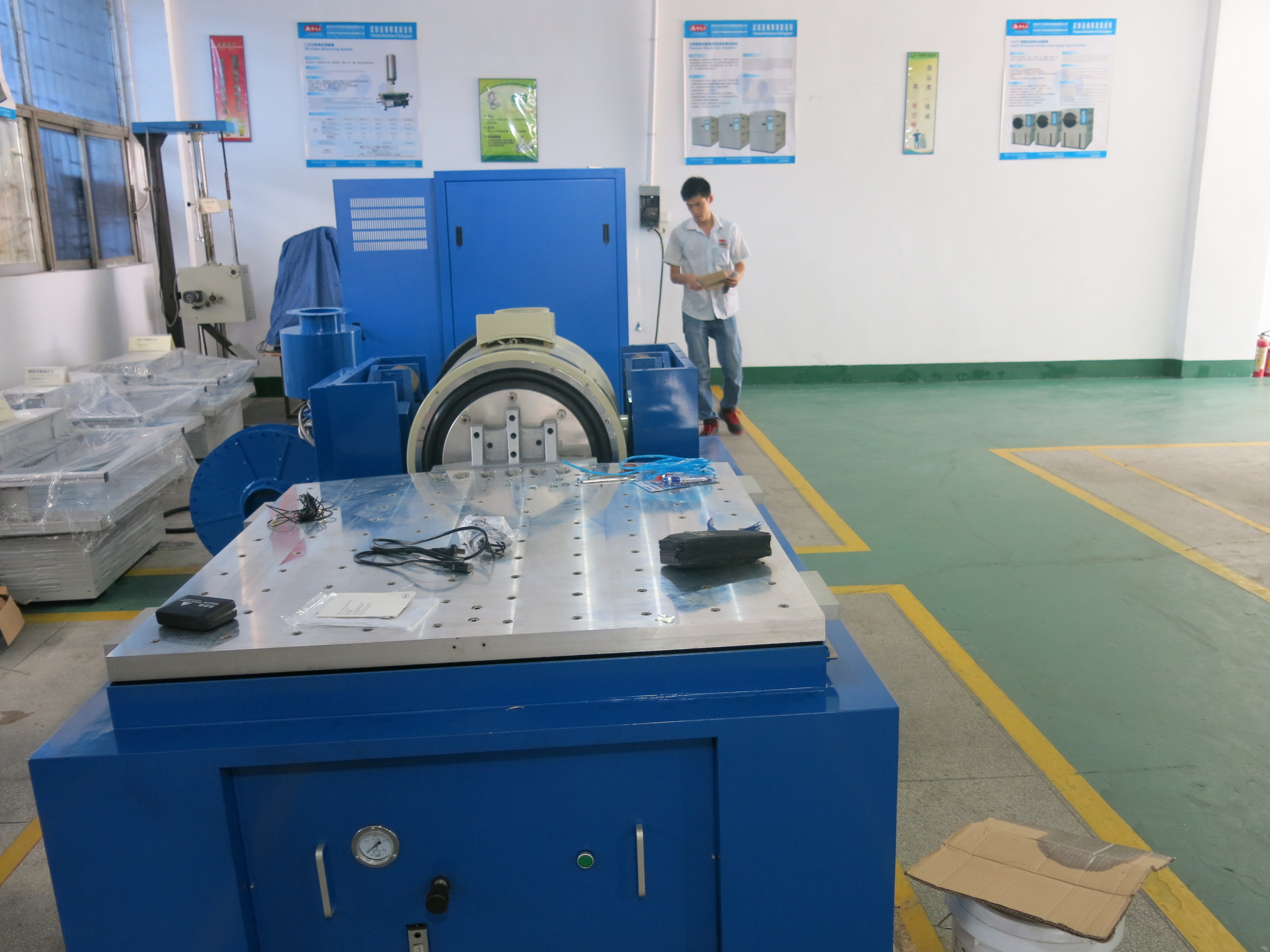

30000N Vibration Test Bench , UN38.3 Shake Vibration Machine 5
