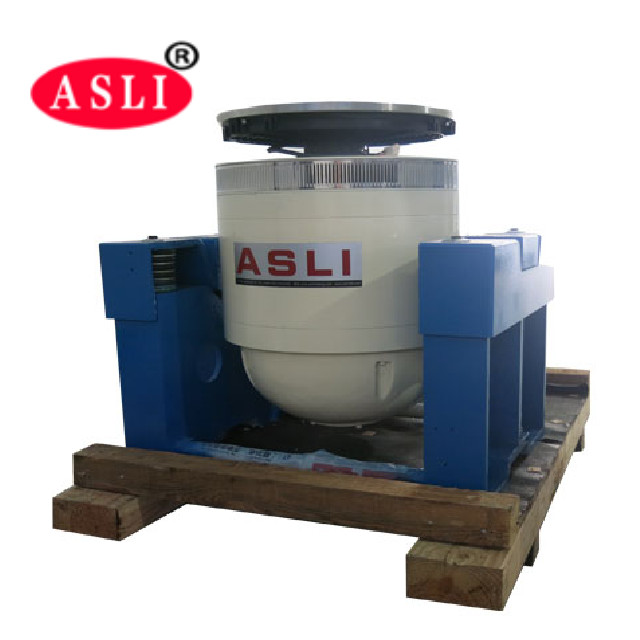

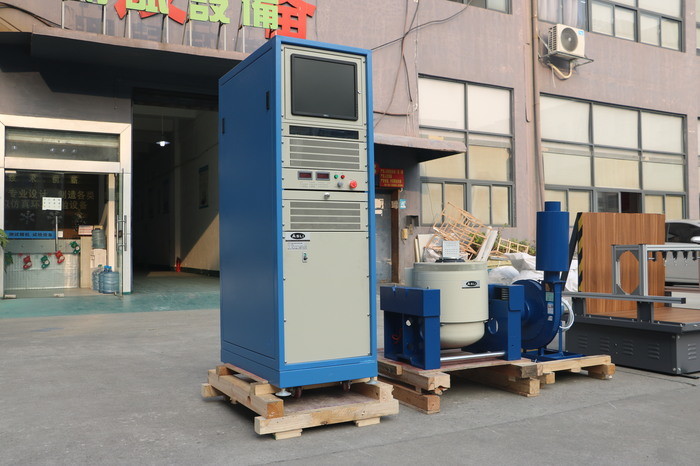

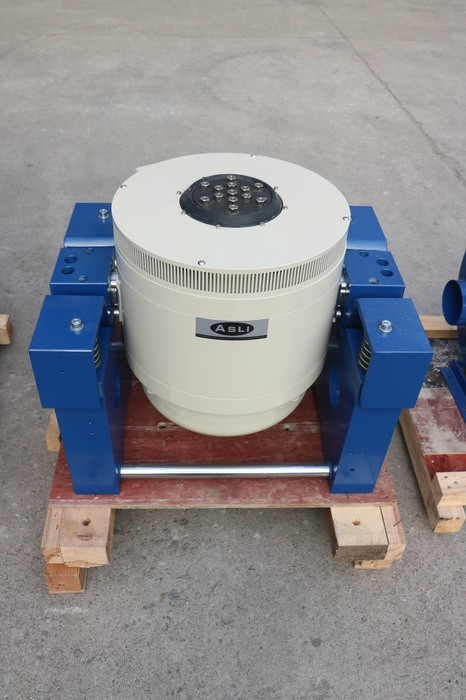

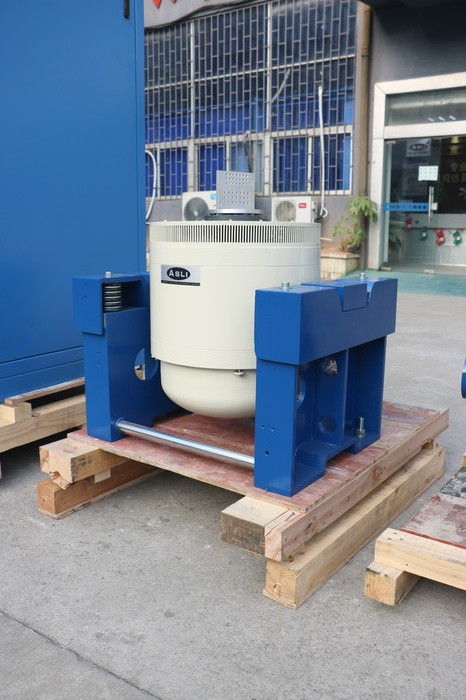

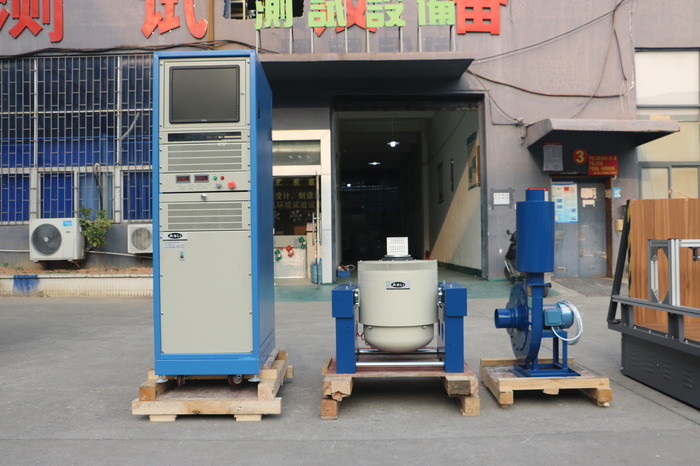

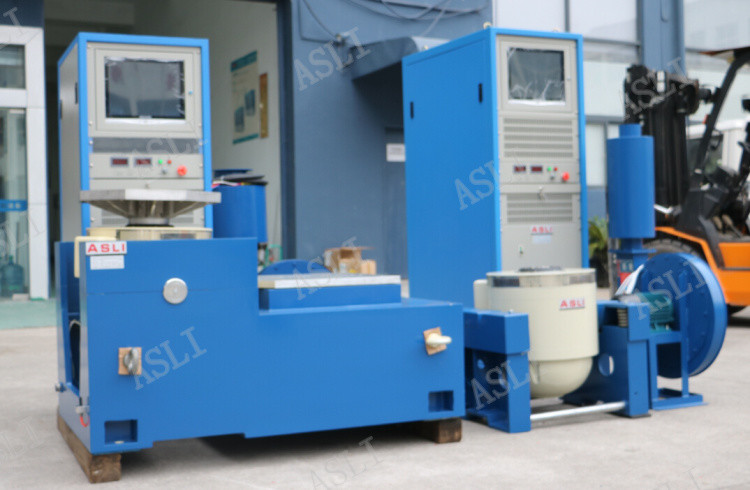

High frequency vibration Shaker Table Test Equipment
Description:
High frequency vibration Shaker Table Equipment is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test
Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
Technical Parameters:
| Model | ES-3 |
| Rated sine excitation force | 3000N |
| Rated random excitation force | 3000N |
| Shock excitation force | 6000N |
| Frequency range | 5-4,000Hz |
| Max. displacement | 25mm |
| Rated speed | 2m/s |
| Rated acceleration | 500m/s2 |
| First-order resonant frequency | 2,900 Hz±5% |
| Max. loading | 100kg |
| Vibration frequency | 3 Hz |
| Working table diameter | Φ150mm |
| Equivalent weight of moving parts | 2kg |
| Dimension | 764×530×660mm |
| Weight | About 480kg |
| Cooling method | Forced air cooling |
