Programmable Electromagnetic Vibration Test Machine for Electronic Products
High Frequency Vibration Tester can be used as the basis of improving product or reference.It is ideally suitable for electronic, LED lighting industry, auto parts, chemical industry, building materials, mobile computers, batteries, plastic, metal, rubber etc.material.
ES series electromagnetic vibration testing system is specially designed to meet the need for long time operation, installation of vibration resistant base can achieve vertical and horizontal vibration. The standard platform is installed with high efficiency airbag shock isolation device so that the vibration transmitted to the building can be minimized, at the sane time avoid the need of additional foundation in most of the cases.
Technical Parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
Features
1 Light armature, high stiffness, 4000 HZ frequency.
2 Computer connecting line control, immediately store materials.
3 Display controlling chart.
4 Low resistance and high performance design, high efficiency, low cost.
5 High reliability, low fault.

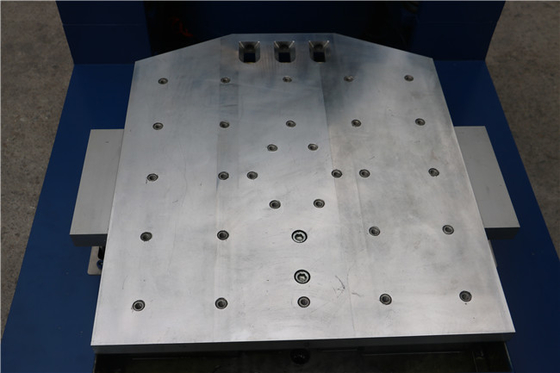

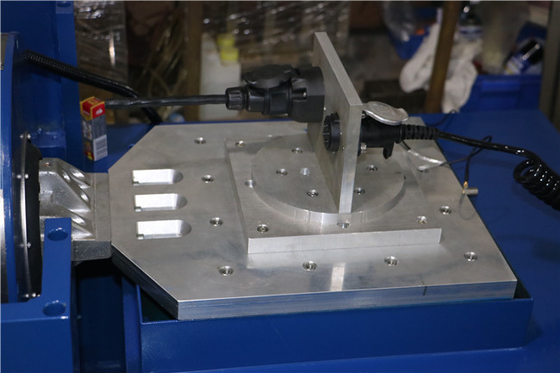

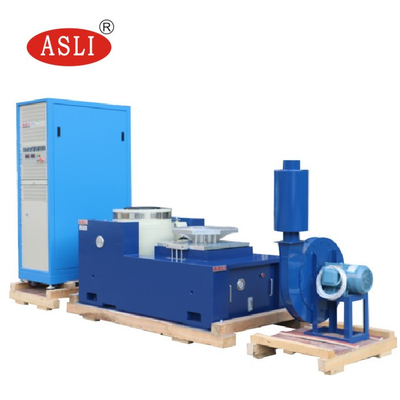

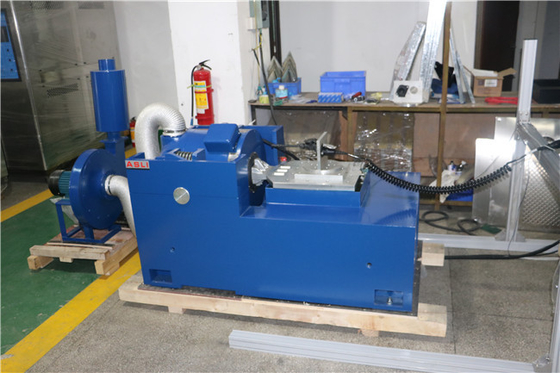

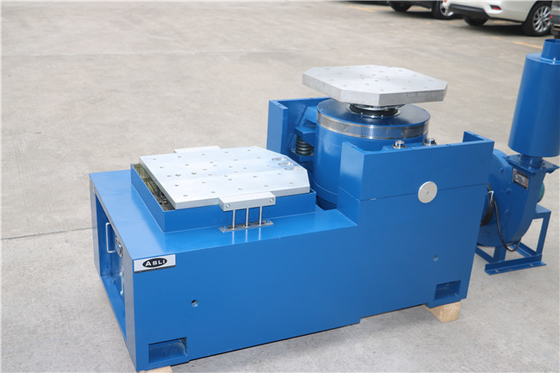

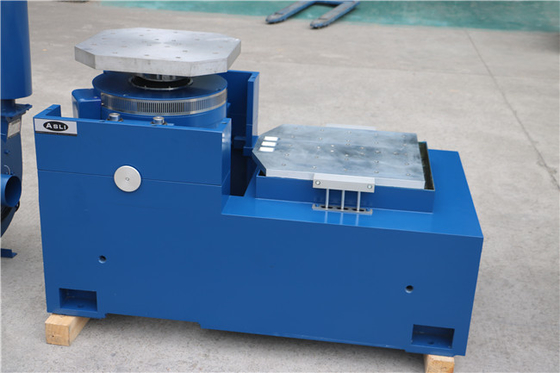

Pictures for reference
If you need more information about SGS Lab 6000N Vertical Vibration Shaker Machine For Electronic Products, please don't hesitate to send your inquiry.
