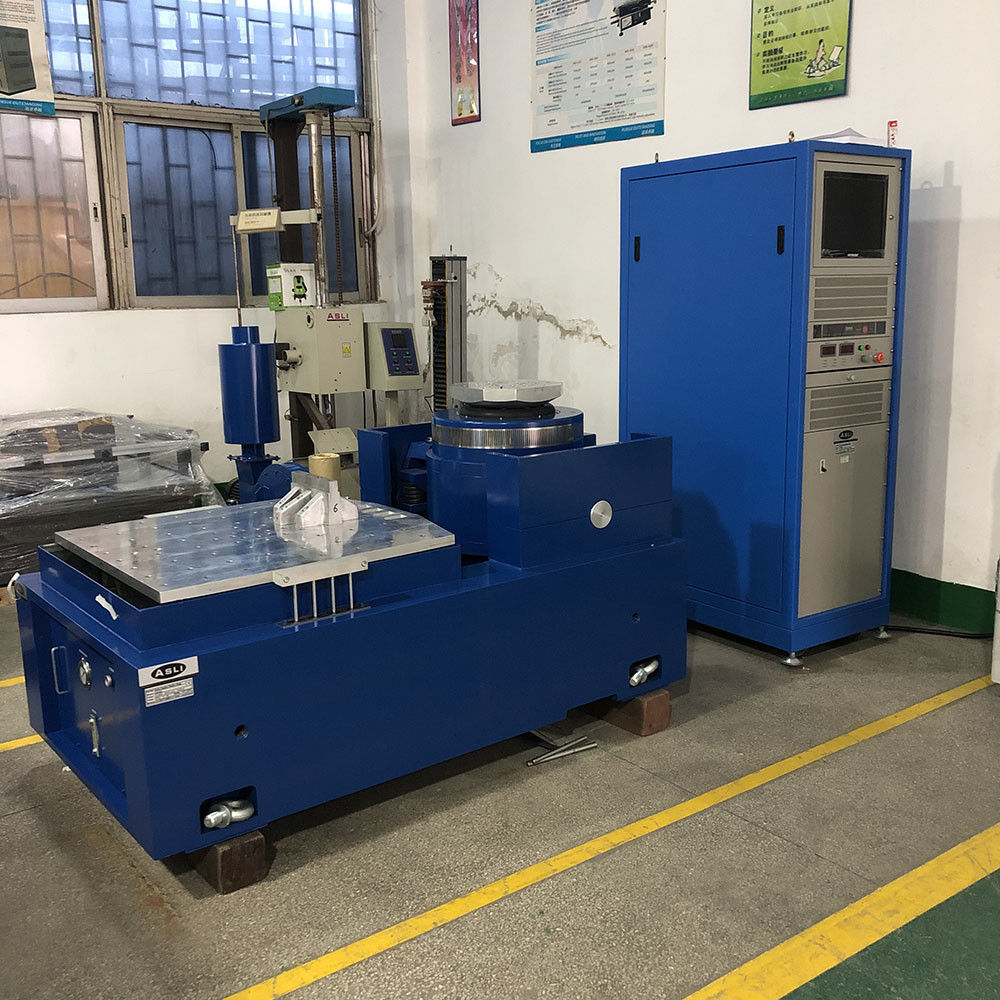

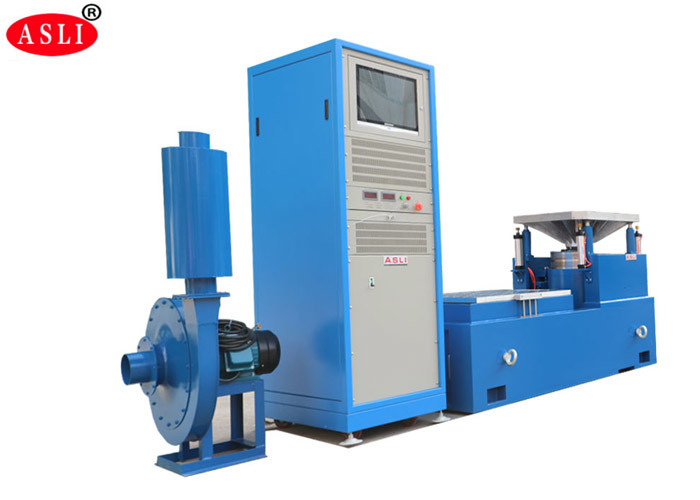

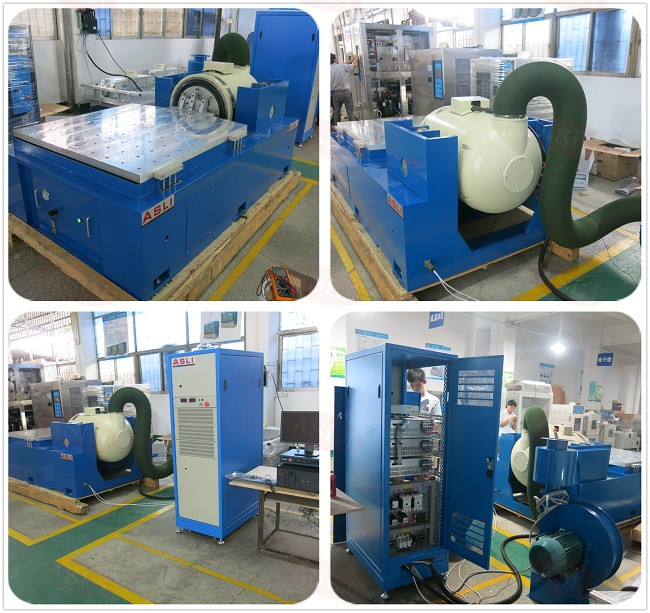

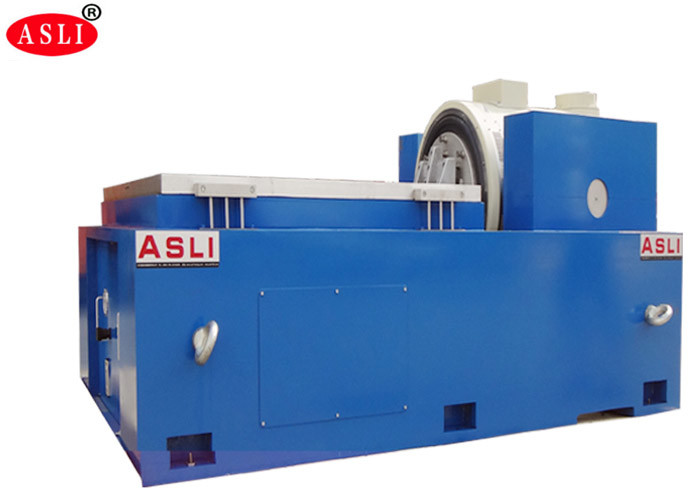

Automotive Vibration Testing Standards IEC 60068 Universal Electrodynamic Vibration Shaker Table
Automotive Vibration Testing Standards IEC 60068 Universal Electrodynamic Vibration Shaker Table are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the disribution or in-use environment. The machine are simple to use can perform a wide range of vibration test in accordance with government,industry and corporated specifications.
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console
2. To make it convenient for operation; original refrigerating compressor unit and its main accessories imported from abroad
3. Imported LCD color touch screen controller capable of automobile control of temperature humidity programs;
4. With R232 Telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool
5.Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
reliability test equipment , shock vibration
| System Specification | |||
| System Model: | ES- 6 | ||
| Frequency Range: | 3~3500 | ||
| Rated Force | Sine N | 6000 | |
| Random N | 12000 | ||
| Shock N | 12000 | ||
| Maximum Acc. | sine (m/s2) | 1000 | |
| Random (m/s2 rms) | 1000 | ||
| Shock(m/s2) | 2000 | ||
| Maximum Vel. | sine (m/s2) | 1.6 | |
| Shock(m/s2) | 1.6 | ||
| Maximum Disp. | Maximum Travel mm (p-p) |
51 | |
| Moving Coil | 6.5kgs | ||
| Dimension of moving coil | Dia 230mm | ||
| Max Load: | 180kgs | ||
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
