ES-10 mechanical vibration test system.pdf

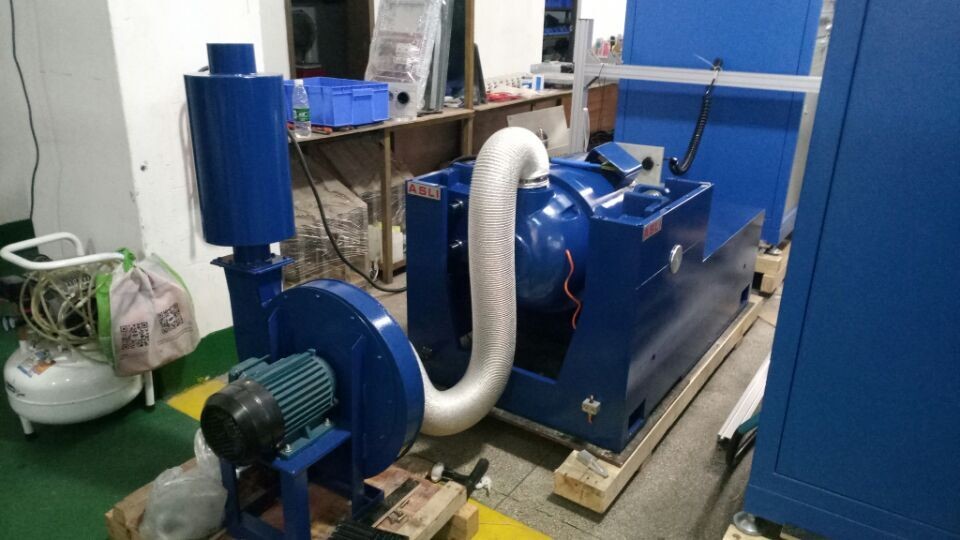

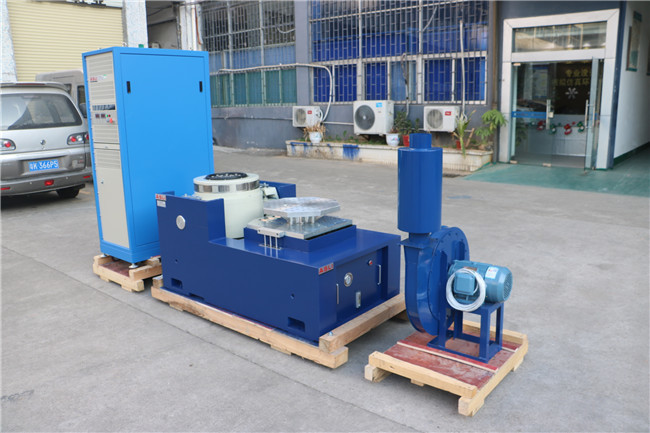

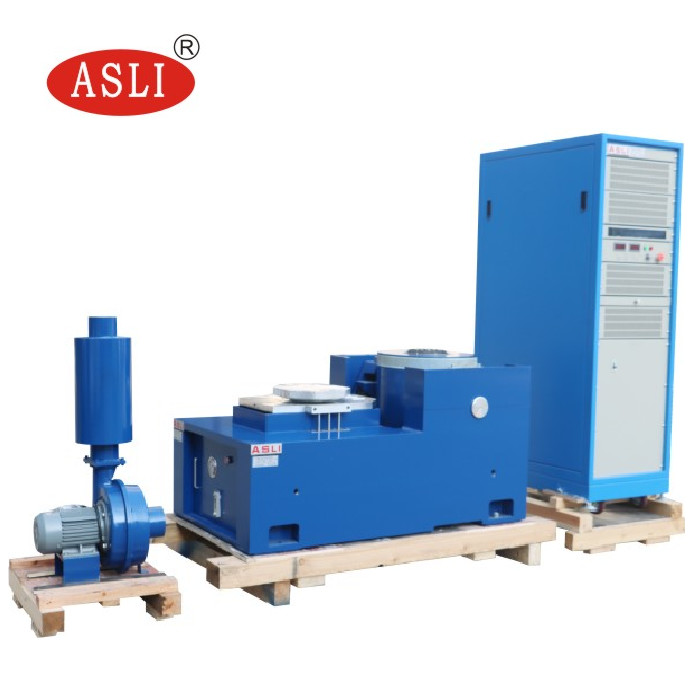

Electromagnetic Vibration Shaker for Laboratory Equipment Testing for Auto Parts Test
Technical parameters of the whole system
1. Model: ES-1 ES-2 ES-3...ES-350
2.Rated Sine Force (N): 1000 to 3500000
3.Rated Random Force (N): 1000 to 3500000
4.Frequency Range (HZ): 3 to 3500
5.Rated Acceleration(m/s2): 400 to 1000
6.Rated Velocity(m/s): 1.2 to 1.8
7.Rated displacement (p-p, mm) 25 to 51
8.Max.Loading(kg): 70 to 4500
9.Moving Coil(kg): 2.5 to 300
10.Dimension of moving coil(mm): 150 to 870

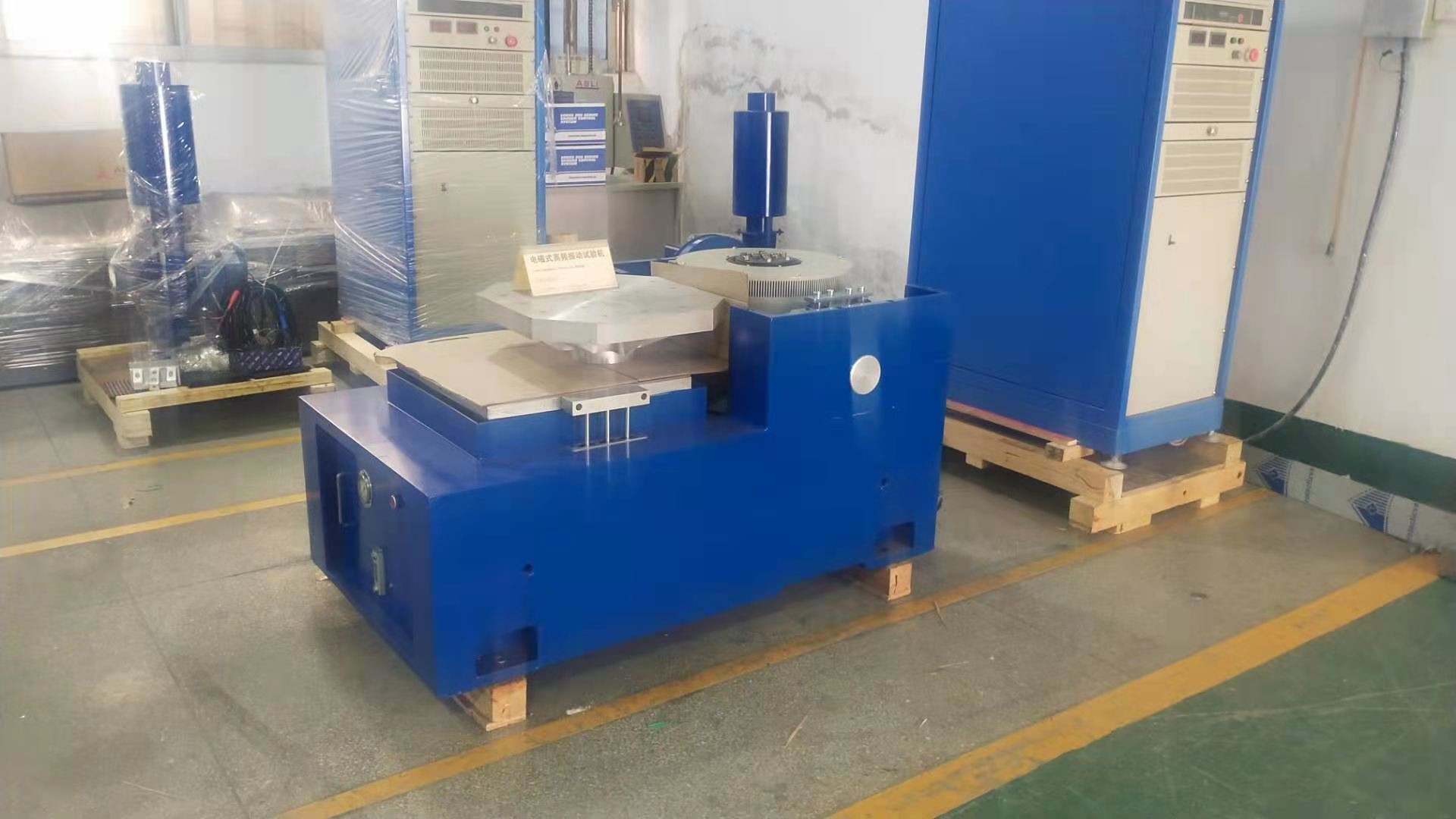

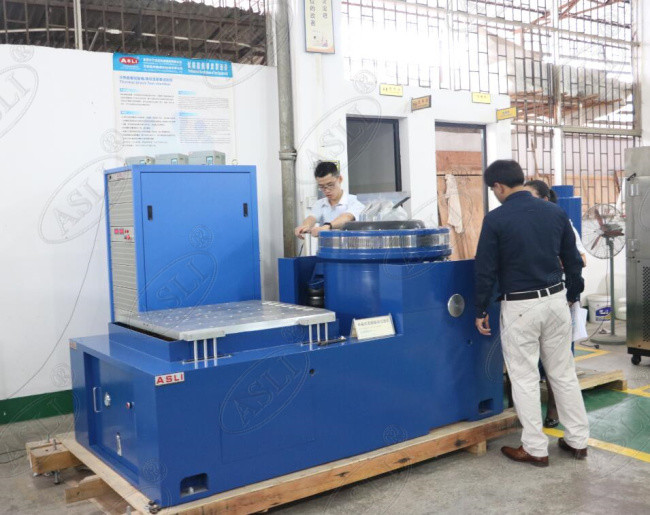

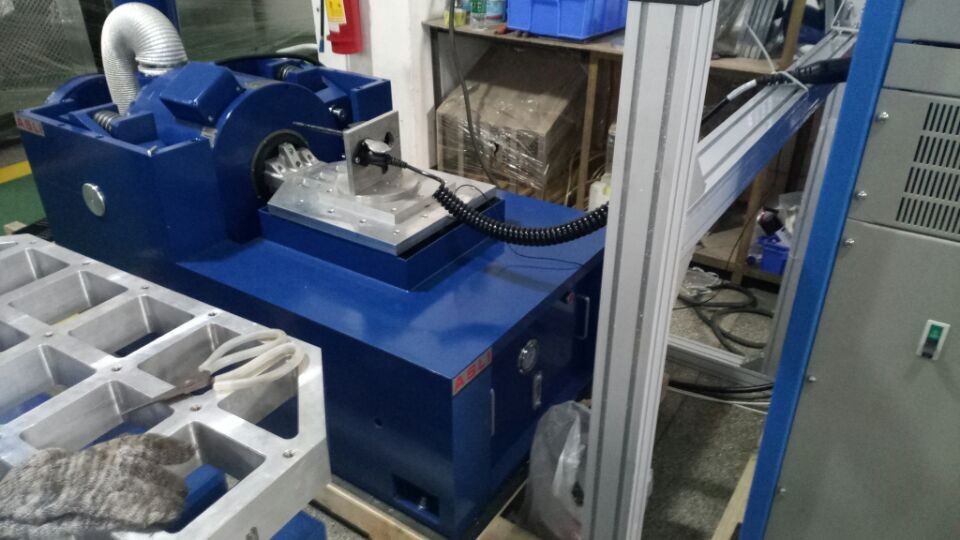

Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 |
5-1000 5-1200 5-2000 |
27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 |
5-800 5-1000 5-1500 |
36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800× 800×45 |
5-1000 5-1500 5-2000 |
57.7 76.9 86.5 |
| LT 1010 | 1000× 1000×30 1000× 1000×40 1000× 1000×50 |
5-1000 5-1300 5-1500 |
89.1 118.8 147 |
| LT 1212 | 1200× 1200×30 1200× 1200×40 1200× 1200×50 |
5-800 5-1100 5-1400 |
126 168 210 |
Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200 × 1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
