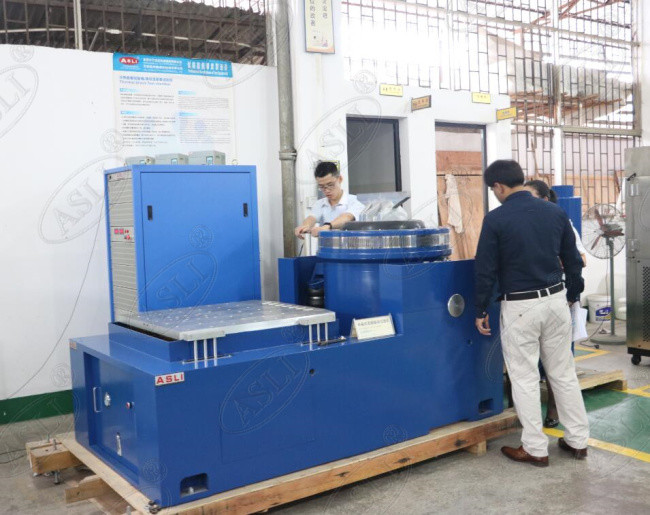

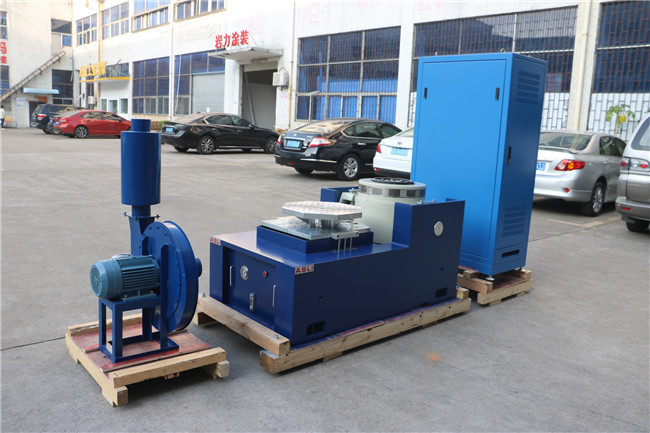

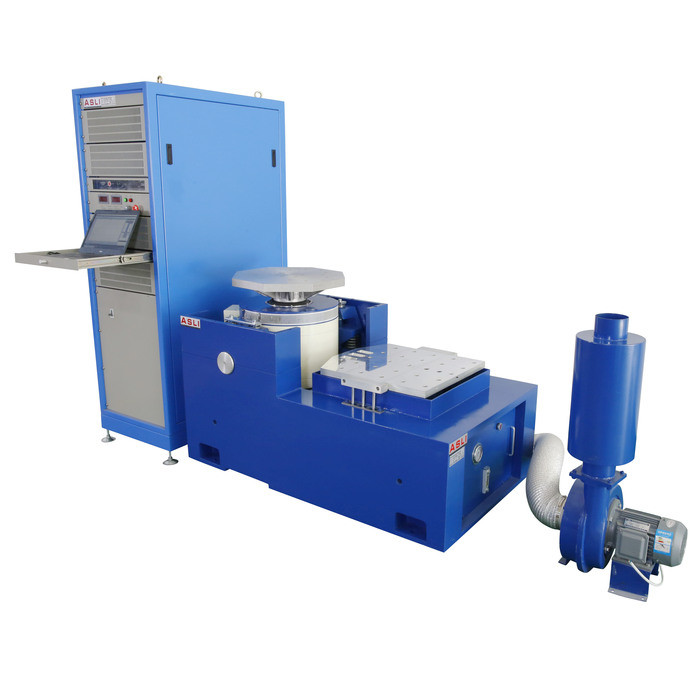

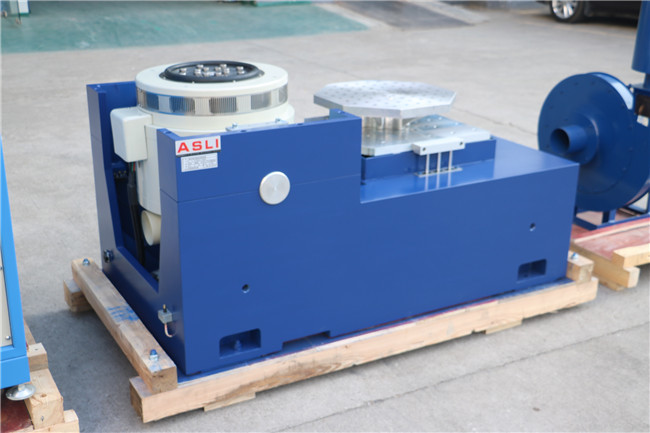

Electrodynamic High Frequency Vibration Shock Test Machine for Auto Parts Test
Electrodynamic Vibration Shaker Application:

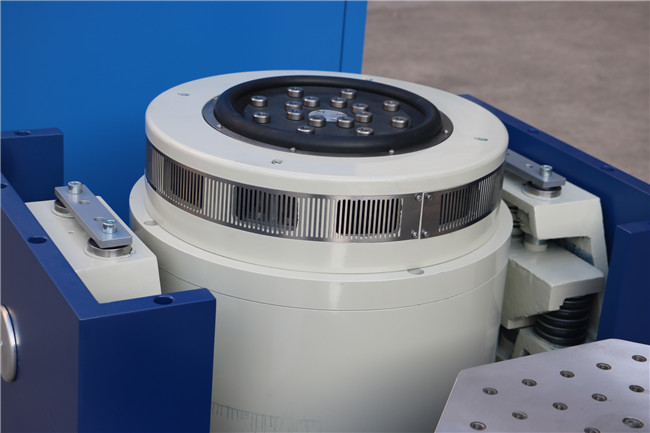

We are manufacturer of High Frequency Vibration Test Machine series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support’ and 'roller bearings and linear guidance', 'trunnion isolation’ advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Vibration Test Machine Technical Parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 |
Φ600
|

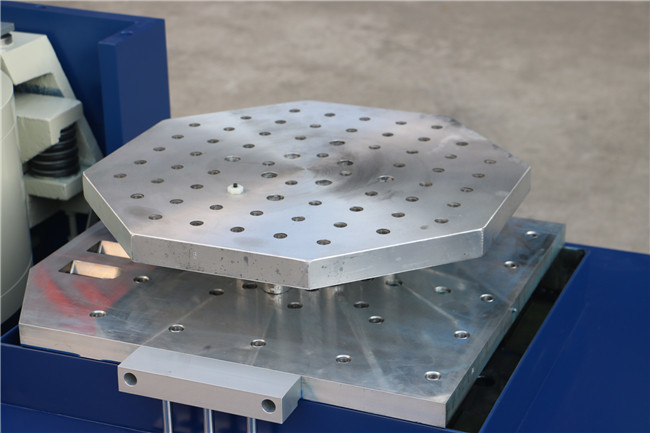

Technical Parameters of Horizontal Expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 |
5-1000 5-1200 5-2000 |
27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 |
5-800 5-1000 5-1500 |
36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800× 800×45 |
5-1000 5-1500 5-2000 |
57.7 76.9 86.5 |
| LT 1010 | 1000× 1000×30 1000× 1000×40 1000× 1000×50 |
5-1000 5-1300 5-1500 |
89.1 118.8 147 |
| LT 1212 | 1200× 1200×30 1200× 1200×40 1200× 1200×50 |
5-800 5-1100 5-1400 |
126 168 210 |
Test Standards
GB/T 31241-2014 Portable electronic products with lithium ion batteries and battery safety requirements
GB/T 18287-2013 The specification of cellular phone use lithium ion battery.The requirements of external short circuit
GB/T 8897.4-2008 Galvanic cell part 4 the security requirements of lithium-ion batteries
YD/T 2344.1-2011 Communication iron phosphate lithium-ion battery pack Part 1: integrated battery
GB/T 21966-2008 The security requirements of Lithium battery and battery in transport
MT/T 1051-2007 lithium ion battery used to miner`s lamp
YD 1268-2003 The security requirements and test methods of lithium battery and charger used in mobile phone
GB/T 19521.11-2005 Lithium-ion battery pack of dangerous goods dangerous features safety standards inspection
YDB 032-2009 Communication backup type lithium ion battery pack
UL 1642:2012 Standard for lithium batteries
UL 2054: 2012 Household and commercial batteries
UN38.3 (2012) Part 3: proposal for dangerous goods transport - test and standard manual
IEC62133-2012 The safety requirements for battery and battery pack of containing alkaline or acidic electrolyte
IEC 62281: 2004 The safety requirements in transport of Lithium battery and battery
IEC 60086: 2007 Galvanic cell part 4 the security requirements of lithium-ion batteries
GJB150,GJB360,GJB548,GJB1217,MIL-STD-810F,MIL-STD-883E etc.
